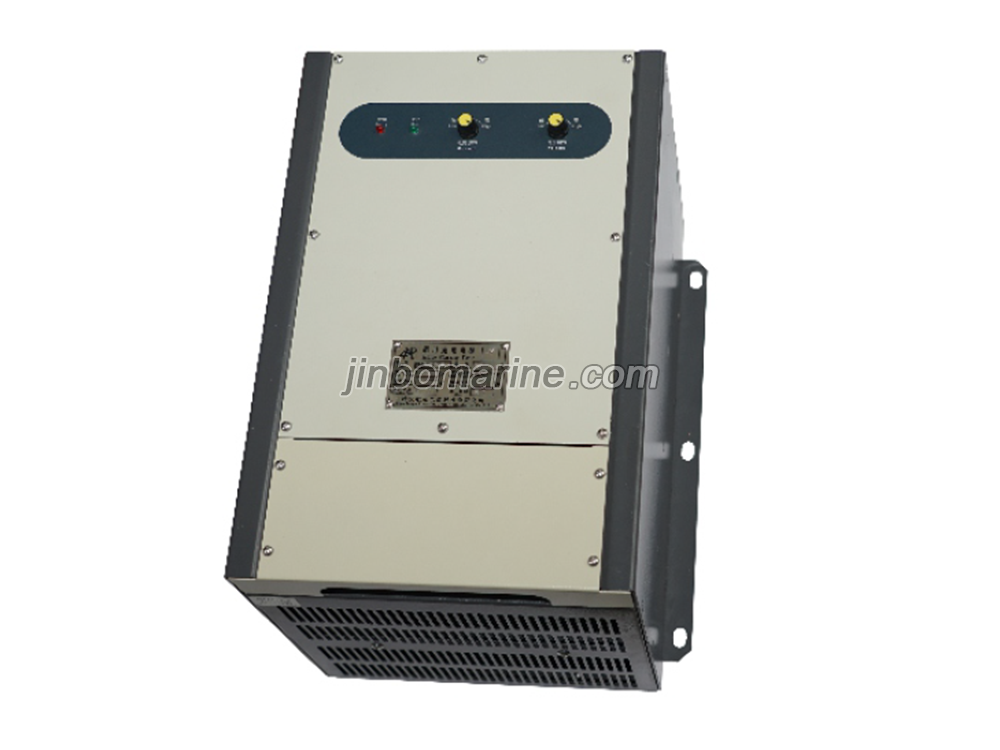

CWHD-150/24 Marine Regulated Power Supply

Request a Quote Not what you need, please send your RFQs via Email.

Details

China CWHD-150/24 Marine Regulated Power Supply:

Description:

CWHD-JX-80~125A Marine regulated power supply, the marine stabilized voltage power supply is a switching power supply multifunctional stabilized power supply composed of IGBT, field effect power tube and pulse width or frequency modulation integrated controller using high frequency PWM or PFM modulation technology.

1. The ship's regulated power supply is small in size and easy to install, and can be optionally equipped with additional functions.

2.The ship's stabilized power supply uses intelligent cooling to ensure reliable power supply even in high-temperature cabins.

3. The output of the stabilized voltage power supply for ships is stable, and the output voltage and output current can be set according to requirements; the output voltage and current range can also be adjusted through a potentiometer.

Technical data:

Specifications(Output current) 150~200A
Input Rated voltage Single-phase 220VAC、Three-Phase 380VAC、Three-Phase 440VAC
Input range Rated voltage ±15%
Input frequency 45~65HZ
Efficiency ≥87%
Maximum current Single-phase 220 <30A
Three-Phase 380 <10A
Three-Phase 440 <9A
Output voltage 28.5VDC±0.1V(Can be adjusted according to customer requirements and battery specifications)
Average floating charge
conversion current
±1%
Output ripple and noise VPP≦300mV
Features Alarm and protection functions Output under voltage warning, output under voltage warning, output over-voltage protection,
output short circuit protection, output over-current protection, power over temperature protection
Standard functions Public warning, fault passive dry contact port (contact limit specification: 32V / 1A)
Indication and adjustment Input instructions, work instructions, fault instructions, current regulation
Working
environment
Operating temperature ‐15℃~+55℃
Storage temperature ‐25℃~+85℃
Relative humidity 0~95%(Non-condensing)
Atmospheric pressure 70kPa~106kPa
Cooling method Air cooling
Standard range Safety IEC61000-4-2、IEC61000-4-3、IEC61000-4-4、IEC61000-4-5、IEC61000-4-6、IEC60092-101、IEC60068-2-11
Conduction, radiation CISPR16、EN55022
Certification CCS Type Approval
Others Size(WxDxH)mm 295x316x410
Weight 26kg
Installation method Wall mounted installation
