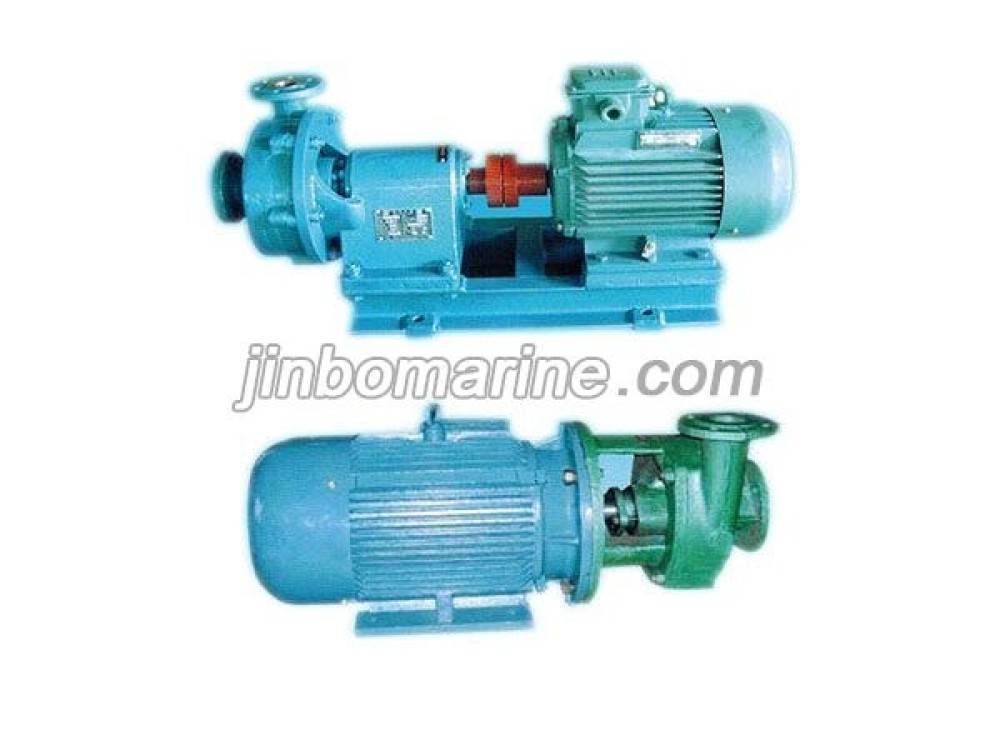

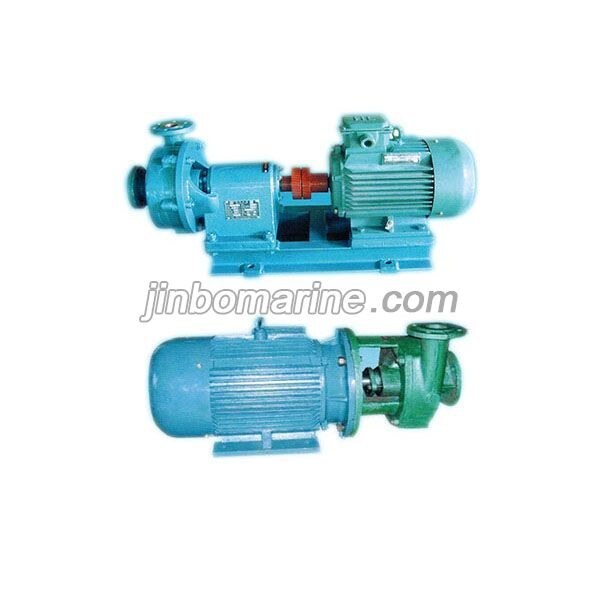

CWL CZWL Series Marine Horizontal Centrifugal Pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

China CWL CZWL Series Marine Horizontal Centrifugal Pump:

Model CWL/CZWL pumps are used to deliver ballast tank water of boats and ships, cool and control fire,etc. They can also used to transfer sea water to fresh water and the temperature is not exceed the 70℃. They are used for delivering fresh water,sea water and other liquids similar to water in physical and chemical qualities.

Main Technical Data
Model Flow rate
Q
m³/h
Lift
H
(m)
Rev
speed
r/min
Motor
power
(KW)
40CWL-42 15 42 2890 4
40CWL-42A 12 40 2880 3
40CWL-50 10 50 2890 3
40CWL-50A 8 45 2870 2.2
40CWL-60 10 60 2890 4
40CWL-60A 8 55 2890 2.2
50CWL-30 20 30 2890 3
50CWL-30A 18 24.5 2870 2.2
65CWL-45 30 45 2900 7.5
65CWL-45A 27 37 2900 4
65CWL-65 25 65 2930 11
65CWL-65A 21 58 2930 7.5
80CWL-30 50 30 2900 5.5
80CWL-30A 45.5 24.5 2900 4
80CWL-35 50 45 2900 7.5
80CWL-65 50 37 2930 15
80CWL-65A 46.5 65 2930 11
80CWL-65B 44 58 25930 11
100CWL-30 100 30 2930 11
100CWL-30A 90 25 2940 7.5
100CWL-45 100 35 2970 18.5
Alao have bigger pumps, pls contact us for more information.
