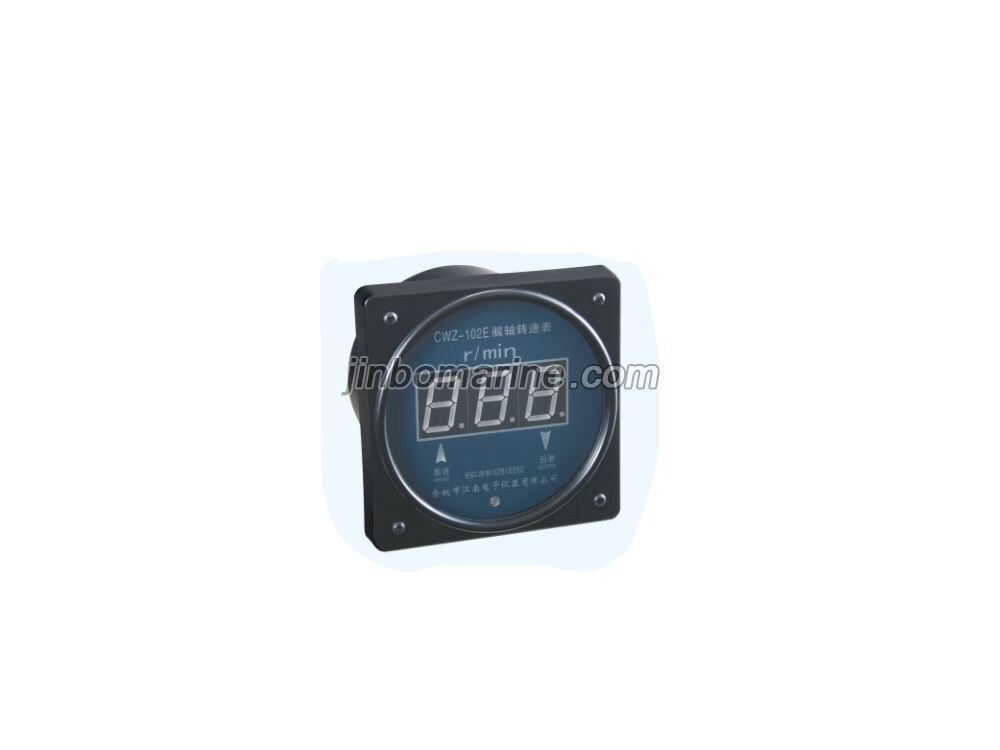

CWZ-102E Stern Shaft Tachometer

Request a Quote Not what you need, please send your RFQs via Email.

Details

CWZ-102E Stern Shaft Tachometer

Size:120X120X88
Working power:DC24V
Measuring range:0~999R/MIN, digital brightness is automatically adjusted,there are forward and backward arrows.
It is used with CWZ-102 CWZ-101A shaft speed measuring device
Install hole size:Ø108
Fixed hole distance:96x96, 4-Ø7
Used for measuring stern shaft speed direction

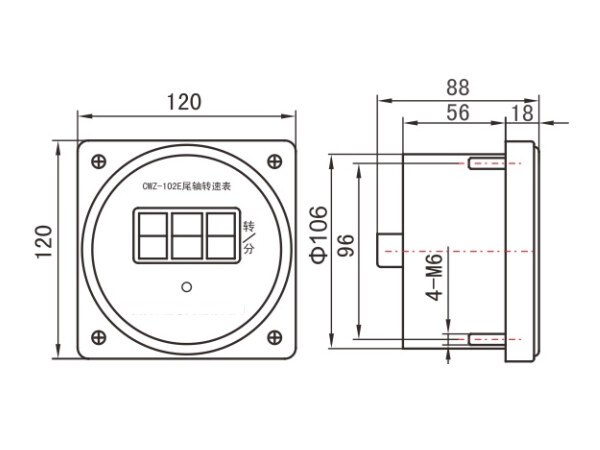

CWZ-102E Stern Shaft Tachometer Drawing
