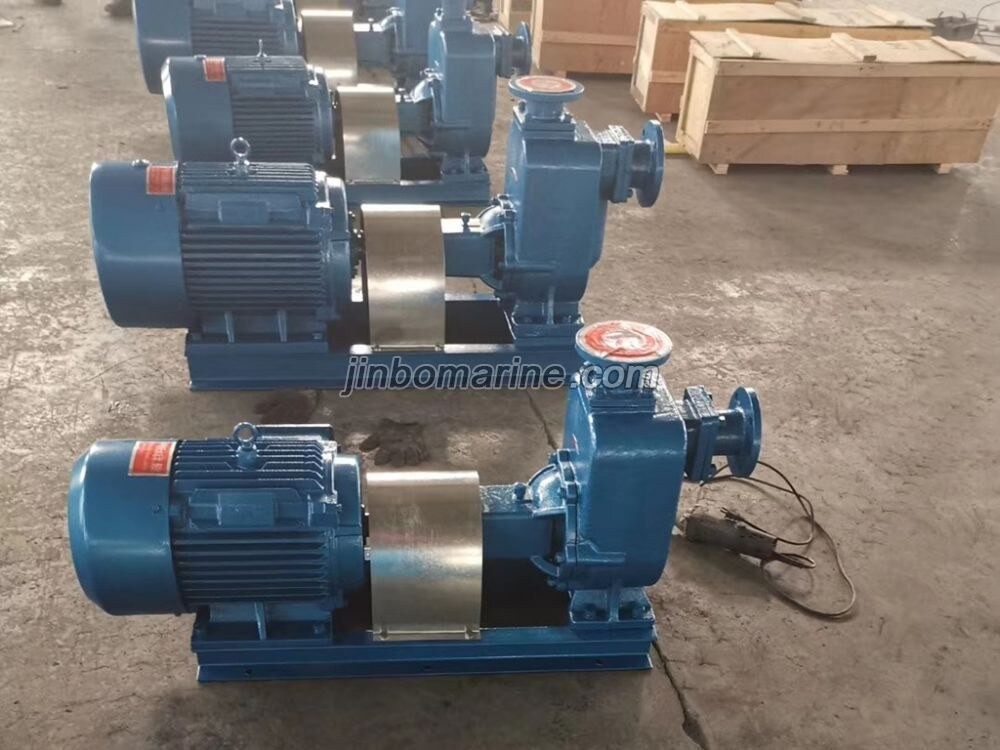

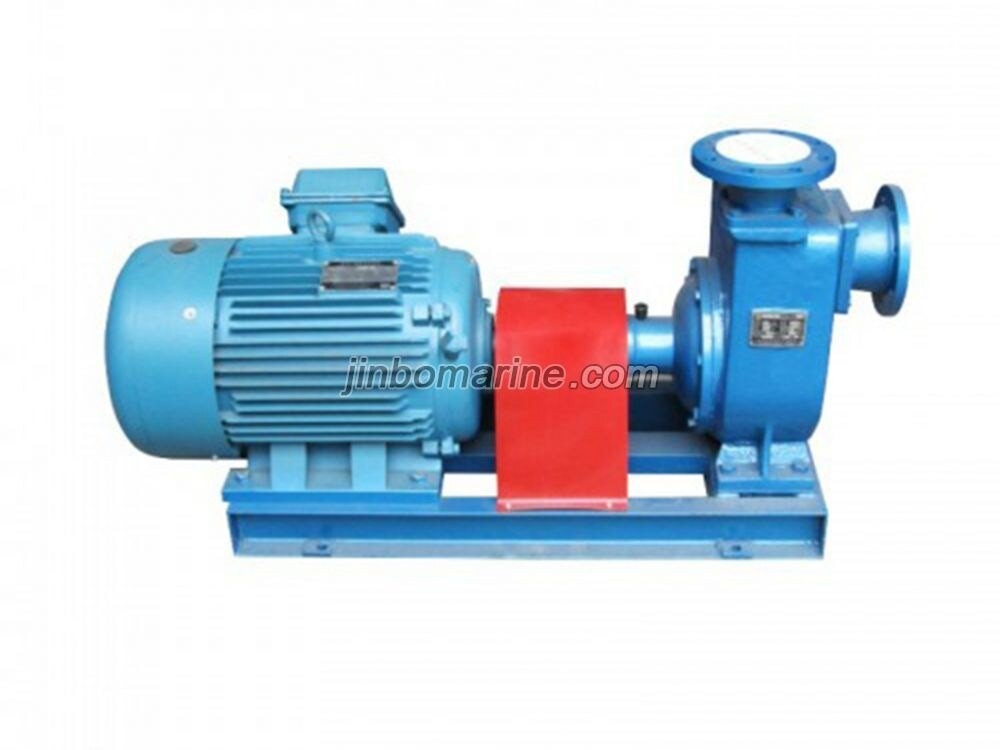

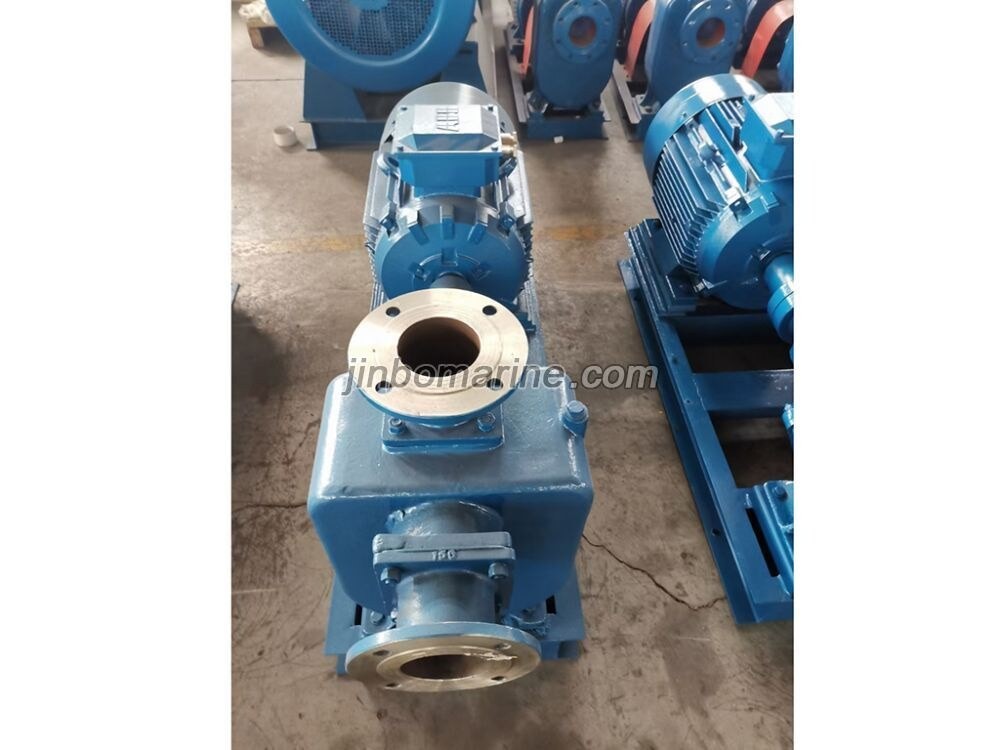

CWZ series horizontal centrifugal self-priming marine pumps

Request a Quote Not what you need, please send your RFQs via Email.

Details

China CWZ series horizontal centrifugal self-priming marine pumps:

CWZ series horizontal centrifugal self-priming marine pumps are well fixed and beautifully shaped and have high self-priming fuction.It can also be installed and used easily, which are best choices for the ships to drain water.
CWZ series horizontal centrifugal self-priming marine pumps are well used in all kinds of ships and warships for ballast, fire control, life water supply on the bilge. It can be used to pump sea water and fresh water, but the mediums temperature should be lower than 80℃.

Main Technical Data
MODEL CAPACITY HEAD RPM power
m3/h m kw
50CWZ-8 21 21 2870 3
50CWZ-6 30 2890 4
50CWZ-5 42 2900 5.5
65CWZ-11 36 21 2890 4
65CWZ-8 30 2900 5.5
65CWZ-6 42 2930 11
65CWZ-5 60 2930 15
80CWZ-14 60 21 2900 7.5
80CWZ-11 30 2930 11
80CWZ-8 42 2930 15
80CWZ-6 60 2940 22
80CWZ-5.5 75 2950 30
100CWZ-18 100 21 2930 11
1OOCWZ-14 30 2930 15
100CWZ-11 42 2940 22
100CWZ-8 60 2950 30
100CWZ-6 85 2970 45
