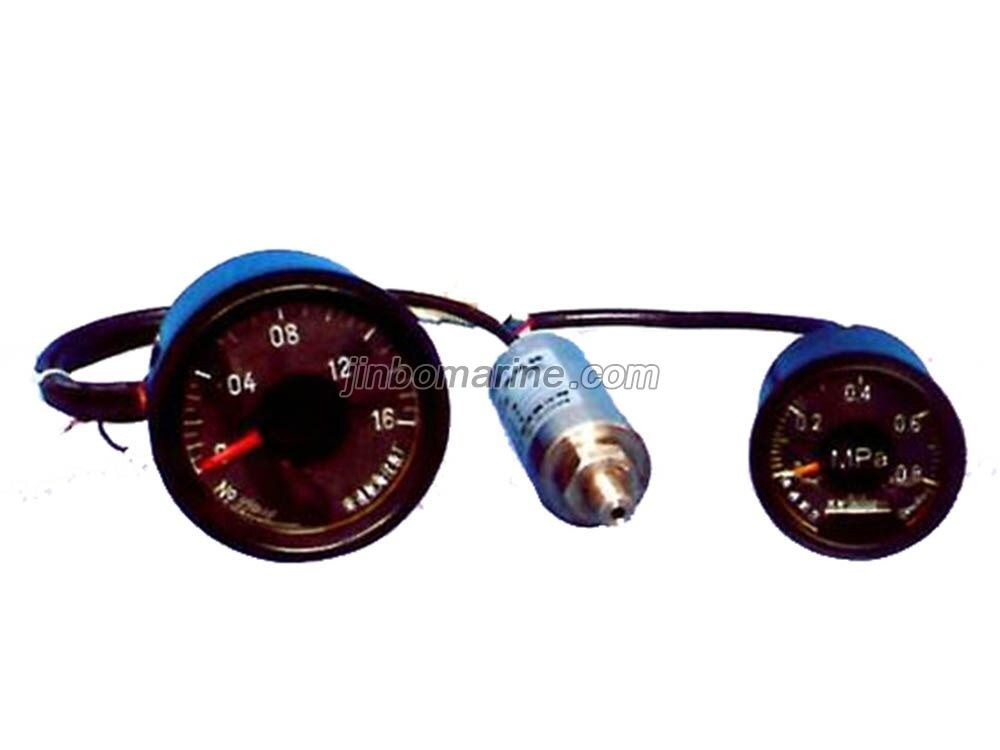

CY-1 CY-1B Electronic Pressure Gauge
- Category:Marine Electrical Instrument
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CY-1 CY-1B Electronic Pressure Gauge:
CY-1, CY-1B is used to measure the pressure of various liquids and gases, such as various oil pressures of diesel engine, water pressure of cooling water, etc. The specification is 0-0.8mpa0-6mpa0-15mpa0-25mpa accuracy class 2.5 power supply DC24 V ± 20% working environment - 40 ℃ - 60 ℃. See Figure 1 for the external dimension and see Figure 2 for other lighting without lighting
Type | CY-1 | CY-1B |
Application | It is used to measure the pressure of various liquids and gases, such as the oil pressure of diesel engine, the water pressure of cooling water, etc. | |
Specifications | 0-0.8MPa 0-6MPa 0-15MPa 0-25MPa | |
Accuracy | 2.5 Class | |
Power | DC24V±20% | |
Work environment | -40℃-60℃ | |
Dimensions | See Picture 1 | See Picture 1 |
Others | Without Lighting | With Lighting |
