CYBW Series Marine Air Pump
- Category:Vacuum Pump
- Material:Cast iron pump cast
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

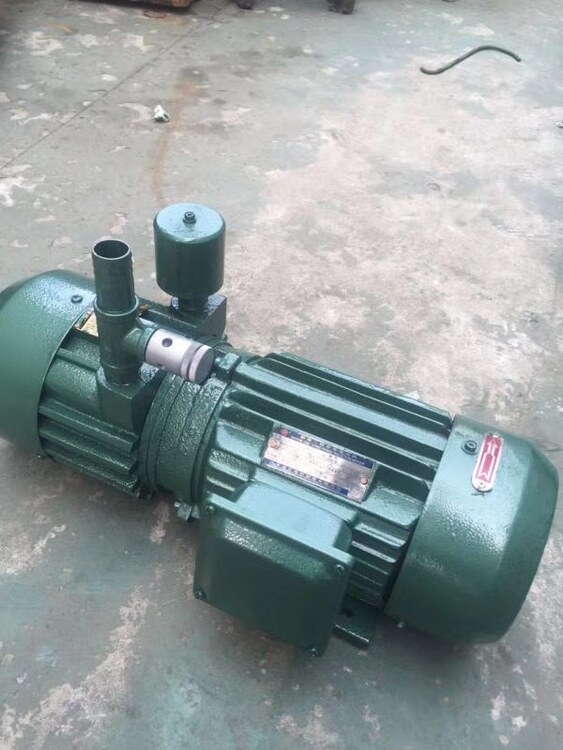

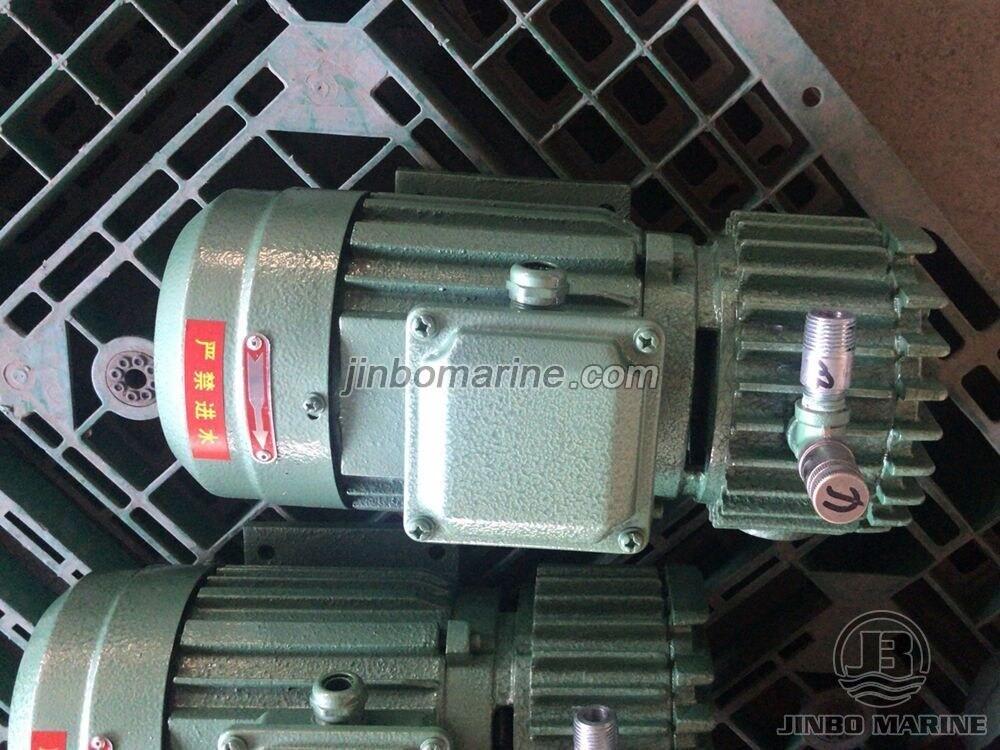

CYBW series marine air pump
General description
CYBW series marine air pump is the oil-free self lubricating sliding-vane air pump,which has the features of small size,light weight,energy-saving and clean exhausted air with no oil pollution,etc.It is designed specially as the auxiliary equipment for marine sanitary sewage disposal system.
Model Explanation
For the Model CYBW-25
C stand for Marine pump
Y stand for Air pump
B stand for Sliding-vane
W stand for oil-less self-lubricating
25 stand for air flow(m3/h)
Performance parameter
| Model | flow rate | pressure | Motor power | Inlet pipe diameter | outlet pipe diameter | ||
|
|
Q(m3/h) | (Kpa) | (kw) | (mm) | (mm) | ||
| CYBW-6 | 6 | 60 | 0.25 | 16 | 16 | ||
| CYBW-10 | 10 | 60 | 0.37 | 16 | 16 | ||
| CYBW-15 | 15 | 60 | 0.55 | 20 | 20 | ||
| CYBW-20 | 20 | 60 | 0.75 | 20 | 20 | ||
| CYBW-25 | 25 | 60 | 1.1 | 27 | 27 | ||
| CYBW-40 | 40 | 60 | 1.5 | 27 | 27 | ||
