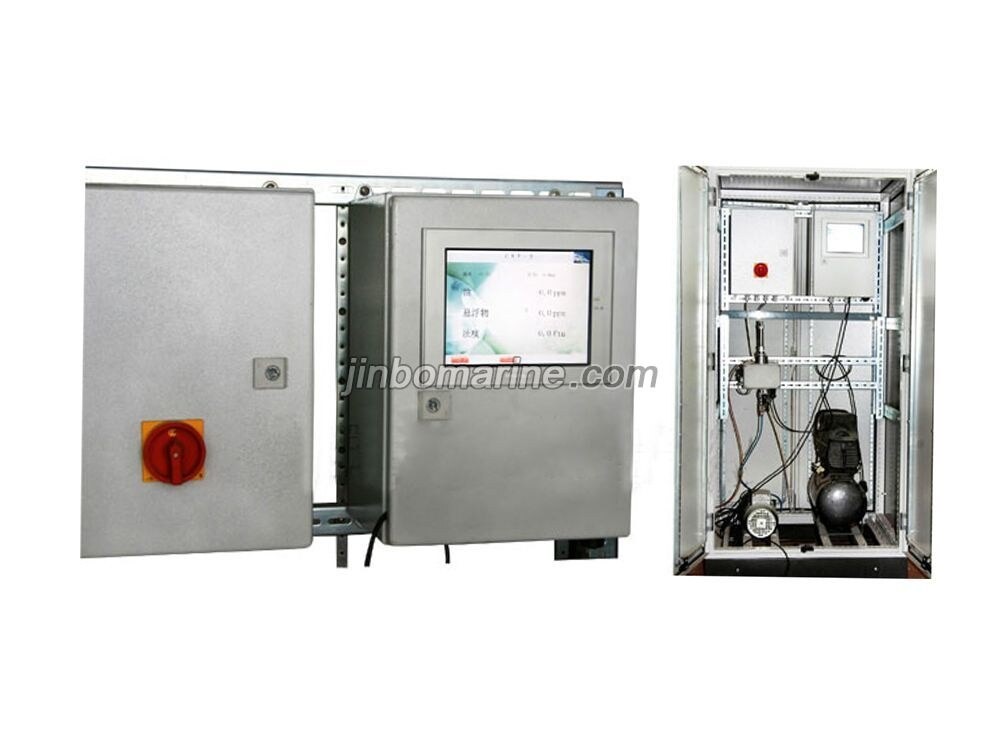

CYY Series Remote Testing Instrument Including Oily Waste Water

CYY series of oily wastewater is a long-range detection devices detect the water contained traces of oil were on-line testing equipment for oil refinery circulating water leakage alarms and continuous monitoring of the total row it can limit alarm and control of emissions, monitoring data, remote transmission connectivity with the host computer, also used in chemical, electric power, oil and other water treatment industry.

CYY series of remote monitoring devices measure water oils, suspended solids turbidity three kinds of indicators. Measuring range 0-199PPM.0-- 20PPM accuracy better than ± 2PPM ,20-199PPM accuracy better than ± 10%, overrun alarm, automatic timing measurement channel cleaning, data LED display, indicating data is automatically saved, timed or random print, through the signal port transfer data up-bit machine.

1. Measuring range 0 --- 199PPM

2. Accuracy 0 --- 20PPM ± 2PPM, 20-199PPM ± 10%

3. Measurements of data automatically saved, regular or random print, through the signal port transfer data up-bit machine.

4. Alarm indicator red LEDs

5. Water flow 0.154/LMIN

6 water pressure 0.20.6MApa

7. Working pressure 220VAC10%, 50/60HZ

8-power 60W (with pressure)

9. Long-term continuous working state
