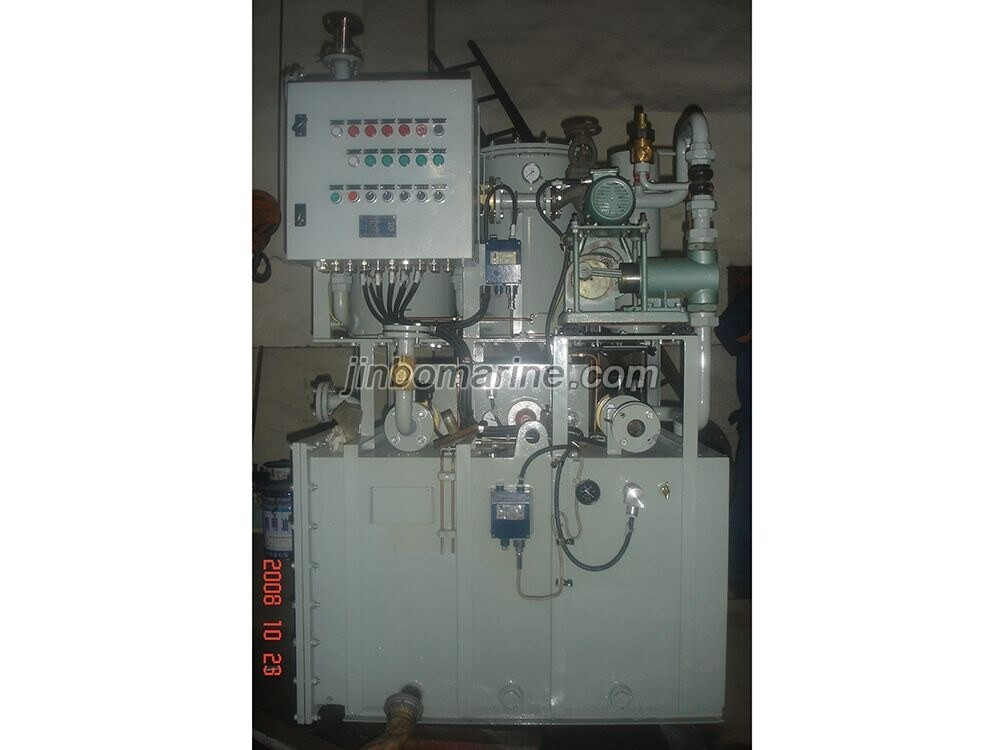

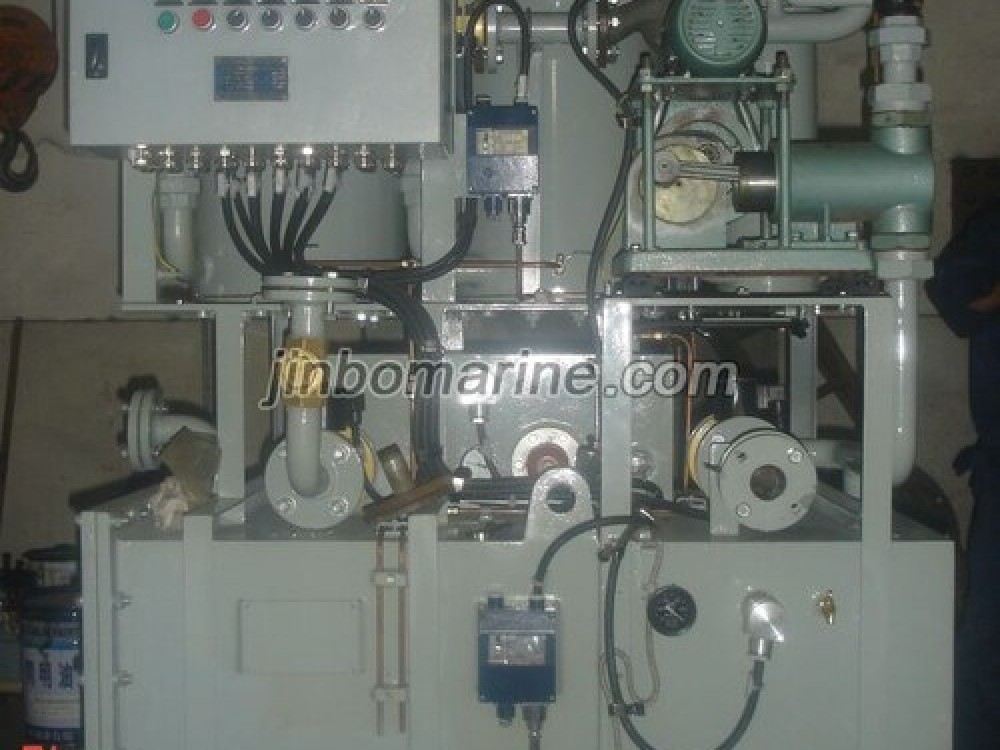

CYZ-0.5 Ship Bilge Oily Water Separator
- Category:Ship Pollution Prevention
- Standards:IMO MEPC 107(49)
- Certificate:CCS BV CE, LR
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:
The main function of CYZ series bilge water separator device is to separate oil and water from bilge oil sewage,
It has the advantages of compact structure, light weight and high degree of automation;
It is easy to operate, use and maintain, with long service life.
CYZ series oil and wastewater separation units meet the requirements of IMO MEPC 107 (49) convention.
CYZ series oil and sewage separation device has obtained the type approval certificate of China Classification Society (CCS).
Water Discharge index
Oil content≯15mg/L
Water Discharge Pressure ≮0.07Mpa
Model |
Capacity (m3/h) |
L (mm) |
W (mm) |
H (mm) |
Power kw |
Weight kg |
CYZ-0.25 | 0.25 | 950 | 650 | 1510 | 2 | 600 |
CYZ-0.5 | 0.5 | 1290 | 640 | 1600 | 2 | 750 |
CYZ-1 | 1 | 1220 | 840 | 1900 | 3 | 1100 |
CYZ-2 | 2 | 1560 | 1000 | 2180 | 3 | 1400 |
CYZ-3 | 3 | 2100 | 900 | 1900 | 4.5 | 1750 |
CYZ-5 | 5 | 2600 | 18000 | 1900 | 5.8 | 150 |
CYZ-10 | 10 | 3200 | 2400 | 1950 | 10 | 7500 |
