CYZ Series Self-Priming Centrifugal Oil Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

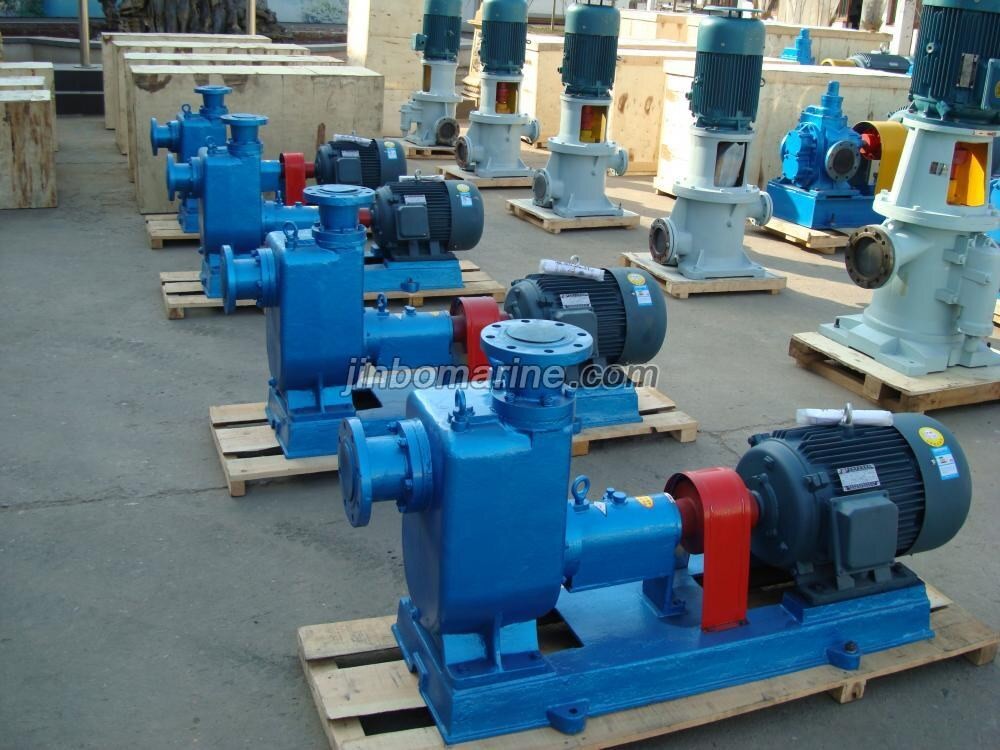

CYZ Series Self-Priming Centrifugal Oil Pump

Centrifugal pump is a high quality Marine cargo pump, used for transporting gasoline, kerosene, diesel, aviation kerosene oil products, such as medium temperature in the-20℃- 80℃, also can be transported with seawater, freshwater etc.

Features

This pump belongs to self-priming centrifugal oil pump; its features are simple construction, easy operation, well moving, convenient repairing, high displacement, high efficiency and wide application slope etc.

Construction

The pump is composed of suction room store liquid room vortex room, liquid returning hole, gas and liquid dividing room etc. The pumps adopt the single row radial ball l bearings, and have the cooling room in the bottom of the bearing stand, and a seal ring is used between the high press and low press area in the pump. They adopt mechanical seals on shaft end.

Main Specification

Type Capacity Head NPSH Ability of Self-Priming Speed Axle-power Sunction/Discharge port Motor
m3/h L/min m m min/5m r/min kw mm Model Power(kw)
25CYZ-27 3 50 27 3 3 2900 0.6 25 YB801-2 0.75
40CYZ-20 6.3 105 20 3.5 2 2900 0.88 40×32 YB802-2 1.1
40CYZ-40 10 167 40 3.5 1.5 2900 2.8 50×40 YB112M-2 4
50CYZ-12 15 250 12 3.5 2.5 2900 1.1 50 YB90S-2 1.5
50CYZ-20 18 300 20 3.5 2 2900 1.8 50 YB90L-2 2.2
50CYZ-35 14 233 35 3.5 1.5 2900 2.7 50 YB112M-2 4
50CYZ-50 12.5 208 50 3.5 1.5 2900 4.3 50 YB132S1-2 5.5
50CYZ-60 15 250 60 3.5 1.5 2900 6.3 50 YB132S2-2 7.5
50CYZ-75 20 333 75 3.5 1.5 2900 9.9 50 YB160M1-2 11
65CYZ-15 30 500 15 4 2 2900 1.92 65 YB100L-2 3
65CYZ-30 25 416 30 4 2 2900 3.2 65 YB112M-2 4
80CYZ-13 35 583 13 4 3.5 2900 1.9 80 YB100L-2 3
80CYZ-17 43 716 17 4 2 2900 3.1 80 YB112M-2 4
80CYZ-25 50 833 25 4 1.5 2900 5.2 80 YB132S2-2 7.5
80CYZ-32 50 833 32 4 1.5 2900 6.8 80 YB132S2-2 7.5
80CYZ-55 60 1000 55 4 1.5 2900 15 80 YB160L-2 18.5
80CYZ-70 60 1000 70 4 1.2 2900 20.1 80 YB180M-2 22
100CYZ-40 100 1667 40 4 2 2900 18.3 100 YB180M-2 22
100CYZ-40A 100 1667 40 4 1.5 1470 18.5 100 YB180L-4 22
100CYZ-65 100 1667 65 4 2 2900 27.7 100 YB200L1-2 30
100CYZ-75 70 1167 75 4 2 2900 24.2 100 YB200L1-2 30
150CYZ-55 160 2667 55 5 2 2900 38.1 150 YB225M-2 45
150CYZ-65 170 2833 65 5 1.3 1470 51 150 YB250M-4 55
200CYZ-63 280 4667 63 5 1.5 1480 75.1 200 YB280M-4 90
80CYZ-125 50 833 125 4 1.5 2900 41.3 80 YB250M-2 55
100CYZ-125 100 1667 125 4 1.5 2900 69.4 100 YB280S-2 75
150CYZ-125 150 2500 125 5 1.5 2900 93 150 YB315S-2 110
200CYZ-125 200 3333 125 5 1.5 2900 119.7 200 YB315M-2 132
250CYZ-50 400 6666 50 6 1.5 1480 77.2 250 YB280M-4 90
