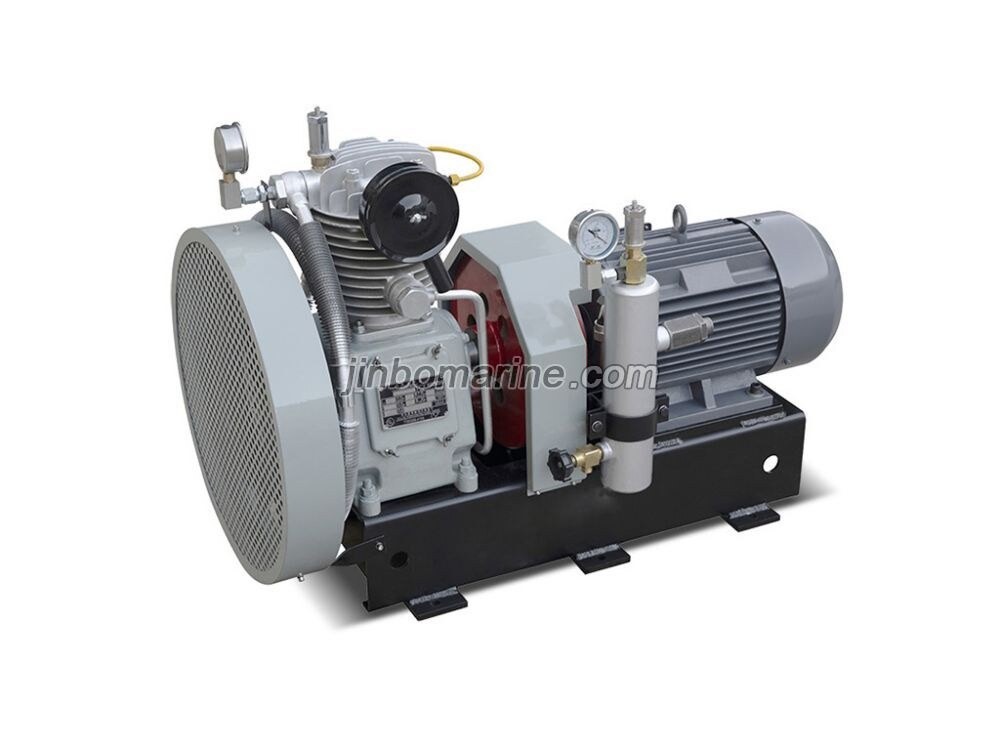

CZ-20/30F Middle Pressure Air Cooling Marine Air Compressor
- Category:Medium Pressure Water Cooled Marine Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:
1. Air cooled unit, small size, low noise,
2. Automatic control, high and low pressure automatic start and stop, automatic unloading and blowdown;
3. Provide the certificate of classification society
4. Through air cooling, the cooling effect is good and the work is stable and reliable.
5. Stable exhaust pressure, low maintenance cost and long service life.
6. Main air compressor for ships
7. It is easy to operate. You only need to read the manual.
Technical data:
No. | Model | Volume flow m3/min | Exhaust pressure MPa | Power kW | Frequency HZ | Rated speed r/min | Weight kg | L x W x H mm |
1 | CZ-20/30F | 20 | 3 | 5.5 | 50 | 1000 | 210 | 970x550x740 |
2 | CZ-20/30F | 20 | 3 | 5.5 | 60 | 1170 | 210 | 970x550x740 |
