CZ Marine Axial Fan/Blower

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

General:

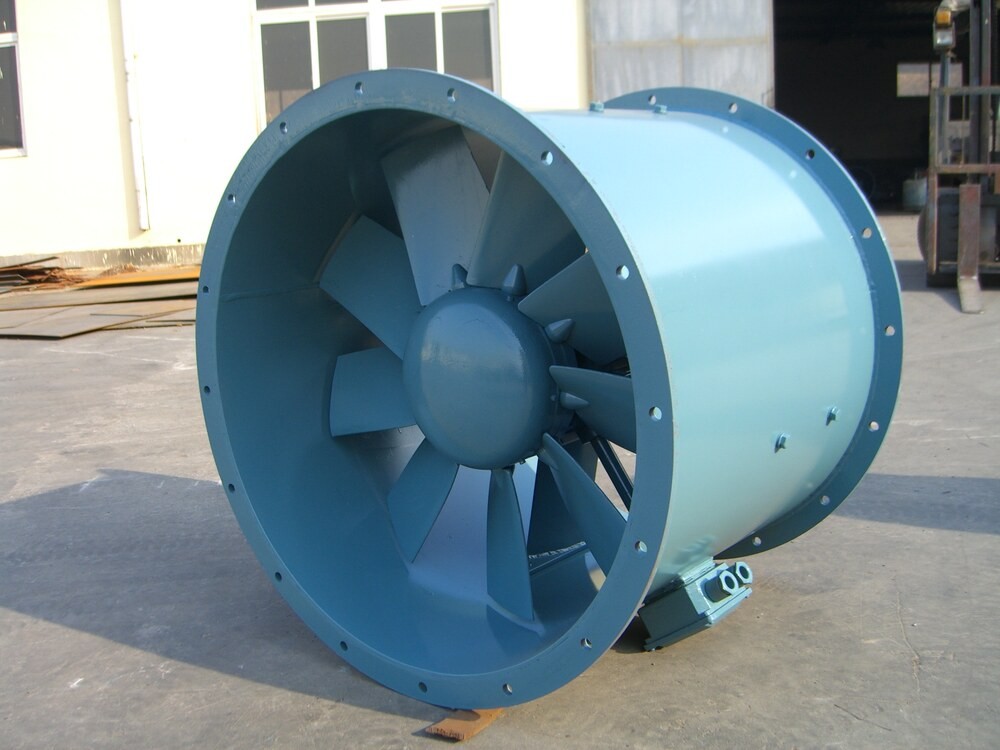

CZ series marine axial fan (also called as JCZ marine axial fan) is capable of blowing air, ocean air with salt vapor, and corrosive air which contains a small quantity of oil vapor. They are suitable for the ventilation of the cabin air ventilation as well as boiler ventilation, also applicable for other suitable places. The fan is designed and manufactured according to GB11864-1990 Marine Axial Fan and the current Ship Building Norms.

Features:

1.The casing can be opened.

2. Reverse Rotation is allowed

3. Good anti-corrosiveness

4.Strong resistance against swing, vibration & impact.

Structure:

The fan is manufactured with a built-in motor structure. The impeller is directly mounted on the motor shaft. The impeller is made of anti-corrosive aluminum alloy while the casing is welded by common steel. The casing can either be made into an integral one or an open type and the motor is fixed on the movable half of the casing so as to bring convenience for on-site repair and the replacement of its spare parts. The fan can be matched with marine AC motor of 230V, 440V, 380v, 415v, 480v. The frequency can be 50Hz or 60Hz

Main Parts:

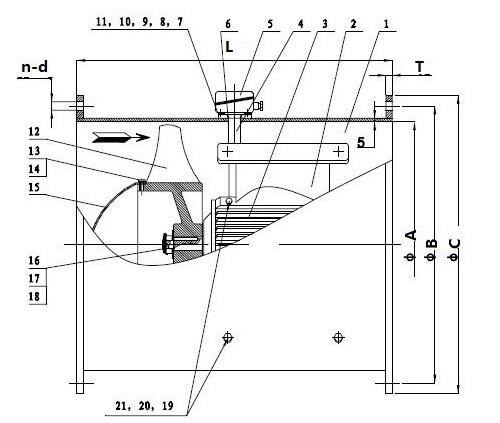

1-Casing: Carbon Steel

2-Angle strut

3-Motor

5-Terminal Box

12-Impeller: Aluminum Alloy

15-Guide Cowl: Carbon Steel

Main Parameter:

Model Folw rate (m3/h) Total pressure(Pa) Static pressure(Pa) speed (r/min) Motor Weight(kgs)
Freq Hz Power kw
CZ-20 600 110 90 2920 50 0.25 18
800 85 55
800 160 130 3500 60 0.55 20
1000 110 80
CZ-25 800 160 140 2920 50 26
1200 140 110
1400 120 90
1000 220 200 3500 60
1500 200 160
1700 180 130
CZ-30A 1200 300 245 2920 50 0.75 35
1800 195 145
1400 440 350 3500 60
2100 280 215
CZ-30B 1000 295 235 2920 50
1200 235 145
1200 420 330 3500 60
1400 330 215
CZ-35A 3000 440 390 2920 50 1.1 40
4500 250 150
3600 635 555 3500 60
5400 350 215
CZ-35B 1800 410 360 2920 50
3000 260 195
1200 160 150 1750 60 0.55
4500 290 200 3500 50 1.1
CZ-40A 4500 585 520 2920 60 1.5 65
6000 500 390
3000 180 150 1750 50 0.55
5400 840 745 3500 2.2
7200 715 560
CZ-40B 3000 520 490 2920 50 1.5
4500 390 330
3600 745 705 3500 60 2.2
5400 560 480
CZ-50A 6000 215 175 1460 50 1.1 78
7200 310 255 1750 60 1.5
CZ-50B 6000 685 625 2920 50 3 86
9000 585 490
7200 990 900 3500 60 4 90
10000 840 705
CZ-50C 9000 785 685 2920 50 4 100
12000 615 490
10000 1125 990 3500 60 5.5 130
14000 890 705
CZ-60 9000 295 235 1460 50 1.5 100
12000 235 145
10000 420 330 1750 60 2.2
14000 330 215
CZ-70A 12000 450 390 1460 50 3 145
15000 370 295
18000 290 200
14000 645 560 1750 60 5.5 165
18000 540 420
21000 450 295
CZ-70B 9000 420 390 1460 50 2.2 170
12000 295 245
15000 225 145
10000 605 560 1750 60 3 180
14000 420 350
18000 325 215
CZ-75 15000 540 490 1460 50 4 165
18000 470 390
21000 340 235
24000 295 155
18000 775 705 1750 60 7.5 190
21000 675 560
25000 490 330
28000 420 225
CZ-80A 21000 665 585 1460 50 7.5 210
24000 595 490
27000 530 390
30000 390 225
25000 960 840 1750 60 11 258
28000 860 705
32000 765 560
36000 560 320
CZ-80B 18000 550 490 1460 50 5.5 200
21000 470 390
24000 400 295
27000 300 165
21000 785 705 1750 60 7.5 235
25000 675 560
28000 575 420
32000 440 235
CZ-90A 24000 705 635 1460 50 7.5 260
27000 570 490
30000 490 390
33000 350 225
28000 1010 910 1750 60 11 310
32000 815 705
36000 705 560
40000 510 325
CZ-90B 27000 765 685 1460 50 11 300
30000 685 585
33000 615 490
36000 540 390
32000 1100 900 1750 60 15 310
36000 990 840
40000 890 705
48000 775 560
CZ-90C 30000 880 785 1460 50 15 331
33000 815 685
36000 685 540
36000 1265 1125 1750 60 18.5 385
39000 1165 980
43000 980 775
CZ-100A 42000 725 585 1460 50 15 335
48000 665 490
54000 605 390
50000 1040 840 1750 60 22 444
57000 960 705
60000 870 560
CZ-100B 36000 880 785 1460 50 15 340
39000 735 635
43000 1265 1125 1750 60 22 444
46000 1060 910
CZ-100C 39000 585 490 1460 50 11 322
42000 530 390
48000 470 295
46000 840 705 1750 60 15 340
50000 765 560
57000 675 420
CZ-100D 36000 340 245 970 50 7.5 322
39000 295 195
43000 490 350 1160 60 11 340
46000 420 285
JCZ-110A 42000 580 490 970 50 15 540
48000 510 390
54000 470 315
60000 390 215
50000 830 705 1160 60 18.5 545
57000 735 560
65000 675 450
72000 560 315
JCZ-110B 42000 340 235 970 50 7.5 321
48000 295 145
50000 490 330 1160 60 11 445
57000 420 205
CZ-110C 42000 870 785 1460 50 18.5 500
48000 805 685
54000 735 585
50000 1255 1125 1750 60 30 580
57000 1155 990
65000 1060 840
CZ-120A 60000 420 295 970 50 15 660
72000 340 155
72000 595 420 1160 60 18.5 665
86000 490 225
CZ-120B 60000 615 520 970 50 18.5 665
72000 575 390
84000 490 245
72000 890 745 1160 60 30 805
86000 830 560
100000 705 350
CZ-140A 72000 685 585 970 50 22 895
84000 585 490
96000 490 340
86000 980 840 1160 60 30 1013
100000 840 705
115000 705 490
CZ-140B 96000 490 340 970 50 22 895
115000 390 245
115000 705 490 1160 60 30 1013
138000 560 350
