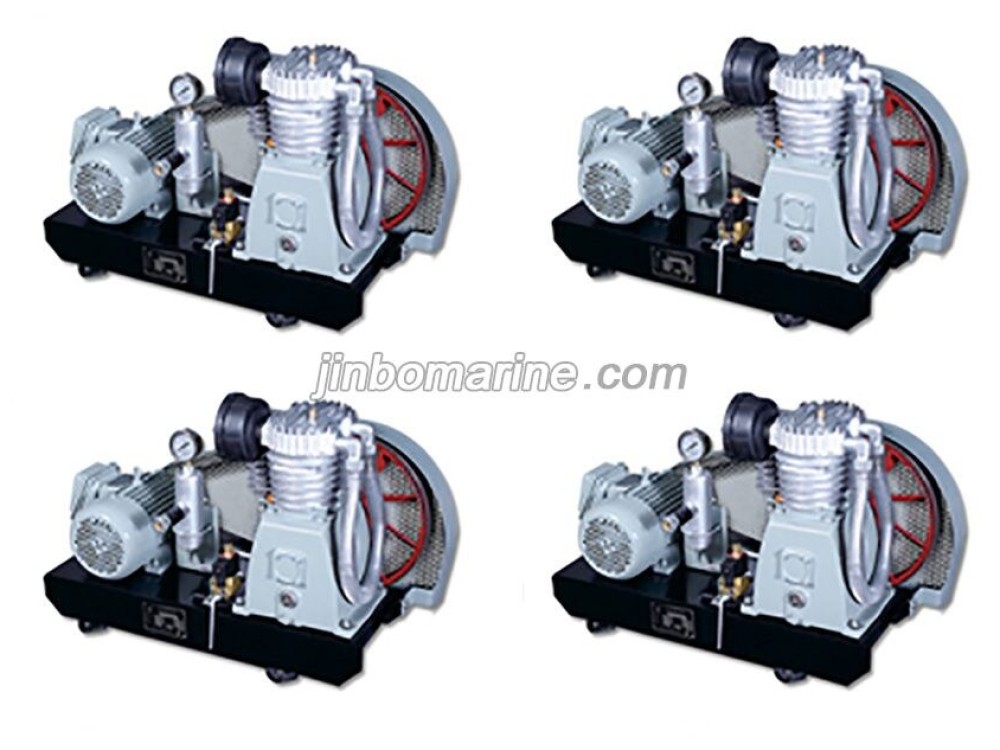

CZ Series Low Pressure Piston Type Marine Air Compressor
- Category:Low Pressure Air Cooled Marine Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CZ Series Low Pressure Piston Type Marine Air Compressor:
Displacement capacity:2.2~25.0 m3/h
Rated pressure: 1.0Mpa
CZ Series Low Pressure Piston Type Marine Air Compressor Installation size
Type | A | B | C | D | E | F | G | H |
CZ-5/10DFZK | 270 | 305 | 360 | 400 | 640 | 710 | 225 | 460 |
CZ-6/10DFZK | 270 | 305 | 360 | 400 | 640 | 710 | 225 | 460 |
CZ-10/10DFZK | 315 | 350 | 410 | 450 | 740 | 790 | 225 | 530 |
CZ-20/10DFZK | 315 | 350 | 410 | 450 | 740 | 790 | 225 | 530 |
CZ-20/10DFZK | 315 | 350 | 470 | 440 | 740 | 860 | 240 | 630 |
CZ-25/10DFZK | 315 | 350 | 470 | 440 | 740 | 860 | 240 | 630 |
CZ Series Low Pressure Piston Type Marine Air Compressor Specifications
Type | Discharge Capacity m3/h | Discharge Pressure kgf/cm2 | Speed r/min | Motor Power KW | Overall Site (L×W×H) | Weight (kg) |
CZ-2.2/10F | 2.2 | 10 | 750 | 0.75 | 520×320×350 | 42 |
CZ-2.2/10F | 2.2 | 10 | 750 | 0.75 | 740×350×620 | 52 |
CZ-5/10FZK | 5 | 10 | 750 | 1.5 | 710×360×460 | 90 |
CZ-6/10FZK | 6 | 10 | 750 | 1.5 | 710×360×460 | 90 |
CZ-10/10FZK | 10 | 10 | 750 | 2.2 | 790×410×530 | 120 |
CZ-15/10FZK | 15 | 10 | 750 | 3 | 790×410×530 | 125 |
CZ-20/10FZK | 20 | 10 | 800 | 4 | 850×470×630 | 190 |
CZ-25/10FZK | 25 | 10 | 750 | 4 | 850×470×680 | 190 |
