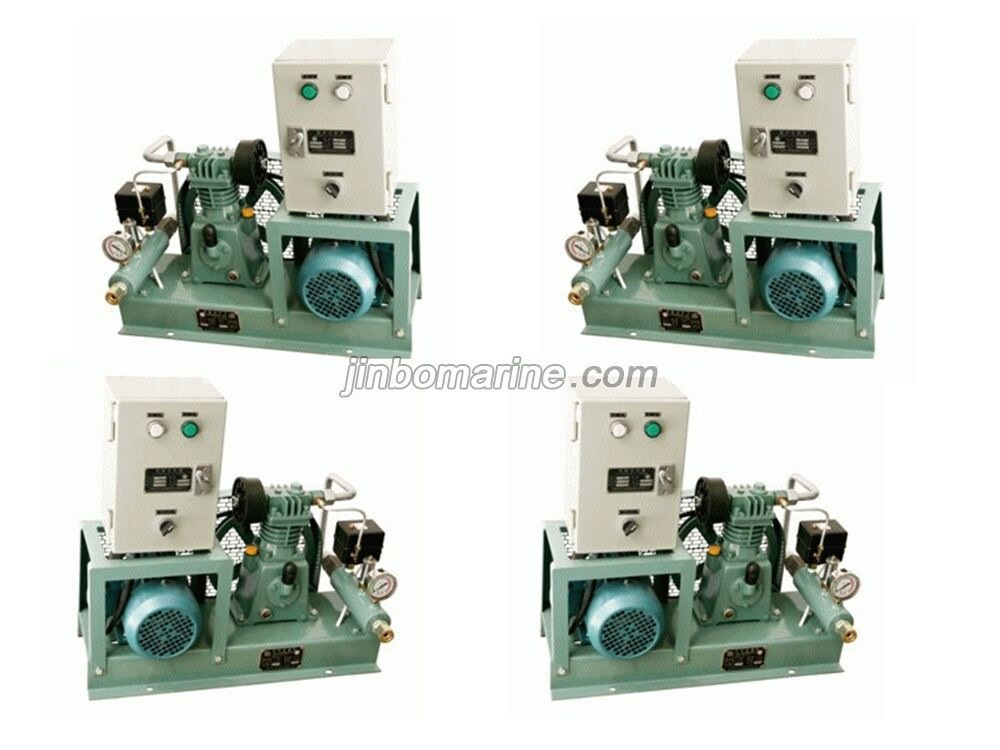

CZF-3.5/1 Type Low Pressure Marine Air Compressor
- Category:Low Pressure Air Cooled Marine Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CZF-3.5/1 Type Low Pressure Marine Air Compressor:
Model: CZF-3.5/1 Type Low Pressure Marine Air Compressor
Type: single, air-cooled, piston
Displacement: 3.5 m3 / h
The rated pressure: 1.0 MPa
Product features
The product has a simple structure, small volume, low energy consumption, low noise, and long service life.
Type has a single row, V, W, the secondary compression piston.
Low energy consumption, low noise, long service life.
Products with manual/automatic stop, start, and unloading relief function.
Apply to ship whistle, oil and gas stove and ancillary equipment required for air.
Easy to maintenance.
Specification
Model | Displacement | Specified Pressure | Rotating Speed | Motor Power | Dimension(L×W×H) | Weight | |
m3/h | MPa | r/min | kW | HP | mm | kg | |
CZF—3.5/1 | 3.5 | 1.0 | 810 | 0.75 | 1 | 650×390×580 | 58 |
