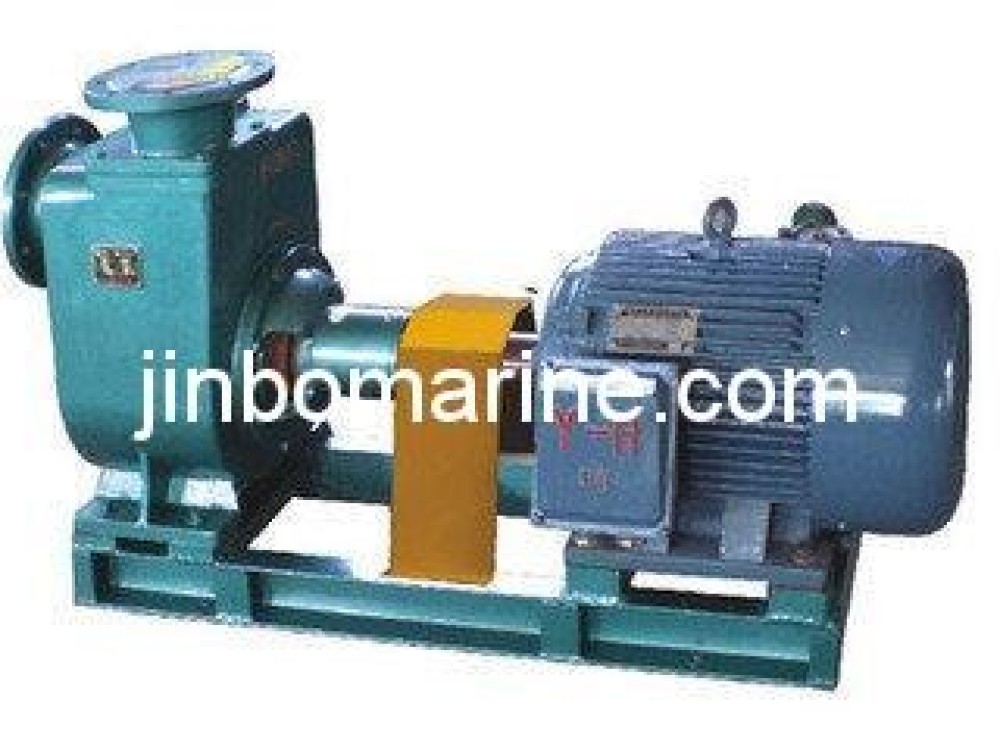

CZW Series Marine Self-priming Non-blocking Crushing Pump

  • Category:Sewage Pump
  • Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
  • Standards:standard
  • Certificate:CCS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

CZW Series Marine Self-priming Non-blocking Crushing Pump

General description

CWZ series marine self priming non-blocking drainage pump, a self priming and non-blocking drainage in one with outer recirculation and through the pump body,impeller's unique design can be like a common self-priming pumps that do not need to install the valve and irrigation watter, and the suction containing large particles of solid and long fiber impurity in liquid, and can be widely applied to the bilge drain, the ship drainage treatment, municipal drainage project, farming,light industry ,paper making,river textile,food,chemical,electrical,fiber,pulp and mixed suspension and other chemical medium in the most ideal impurity pump. It has the advantages of simple structure,good self priming performance,drainage capacity high efficiency and energy saving,convenient repair and maintenance characteristics,the drainage pump series products is the national initiative.

Model explanation

  • CZW 50-15-30
  • CZW-Marine self priming drainage pump
  • 50-inlet diameter 50mm
  • 15-Flow rate 15m3/h
  • 30-Head30m

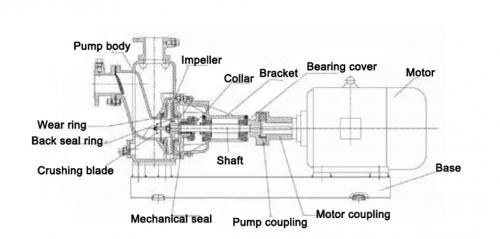

Structural Specification


Performance Parameter

Type 50hz/2900rpm 60hz/3500 50/60hz
CZW Motor power Capacity Head Weight Motor power Capacity Head Efficiency (NPSH)r Suc'head suc'time inlet/outlet diam
kw m3/h m kg kw m3/h m % m m min/5m mm
25-8-15 2.2 8 15 100 3 9.6 21.6 45 2 5.5 3 25
32-5-20 2.2 5 20 100 3 6 28.8 45 2.5 5.5 3 32
32-10-20 2.2 10 20 100 3 12 28.8 45 2.5 5.5 3 32
32-9-30 3 9 30 120 4 10.8 43.2 48 2.5 5.5 3 32
40-10-20 2.2 10 20 100 3 12 28.8 45 2.5 5.5 3 40/32
40-20-15 2.2 20 15 100 3 24 21.6 45 2.5 5.5 3 40/32
40-15-30 3 15 30 120 4 18 43.2 48 2.5 5.5 3 40/32
50-10-20 2.2 10 20 100 3 12 28.8 45 2.5 5.5 3 50/40
50-20-12 2.2 20 12 100 3 24 17.3 45 2.5 5.5 3 50/40
50-15-30 3 15 30 120 5.5 18 43.2 48 2.5 5.5 3 50/40
50-20-35 5.5 20 35 150 7.5 24 50.4 48 2.5 5.5 3 50/40
65-25-30 5.5 25 30 200 11 30 43.2 50 3 5.5 3 65
65-25-40 7.5 25 40 200 15 30 57.6 50 3 5.5 2 65
80-65-25 11 65 25 240 18.5 78 36 52 3 5.5 2 80
80-25-40 7.5 25 40 200 15 30 57.6 50 3 5.5 2 80
80-65-25 11 65 25 240 18.5 78 36 52 3 5.5 2 80
80-80-35 15 80 35 285 22 96 50.4 45 3 5.5 3 80
Type 50hz/1450rpm 60hz/1800 50/60hz
CZW Motor power Capacity Head Weight Motor power Capacity Head Efficiency (NPSH)r Suc'head suc'time inlet/outlet diam
kw m3/h m kg kw m3/h m % m m min/5m mm
65-30-18 4 30 18 200 5.5 36 25.9 45 2.5 5.5 3 65
65-40-25 7.5 40 25 200 11 48 36 50 3 5.5 2 65
80-40-16 4 40 16 240 5.5 48 23 50 3 5 3 80
80-40-25 7.5 40 25 200 11 48 36 50 3 5.5 2 80
80-80-35 15 80 354 450 22 96 50.4 50 3 5.5 2 80
80-50-60 22 50 60 340 37 60 86.4 55 3 5 3 80
100-100-15 7.5 100 15 300 15 120 21.6 50 4 5.5 3 100
100-80-20 7.5 80 20 300 15 96 28.8 53 4 5.5 3 100
100-100-20 11 100 20 340 18.5 120 28.8 53 4 5.5 3 100
100-100-30 22 100 30 510 37 120 43.2 53 4 5.5 2 100
125-120-20 15 120 20 500 22 144 28.8 55 4.5 5.5 2 125
150-180-14 15 180 14 500 22 216 20.1 60 5 5.5 3.5 150
150-180-20 22 180 20 570 37 216 28.8 60 5 5 3 125
150-180-30 27 180 30 680 55 216 43.2 65 5 5 3 150
150-180-38 55 180 38 800 90 216 54.7 45 5 6 3.5 150
200-280-14 22 280 14 700 37 336 20.1 65 5 5 3 200
200-280-28 55 280 28 940 90 336 40.3 55 4.8 5.2 3 200
