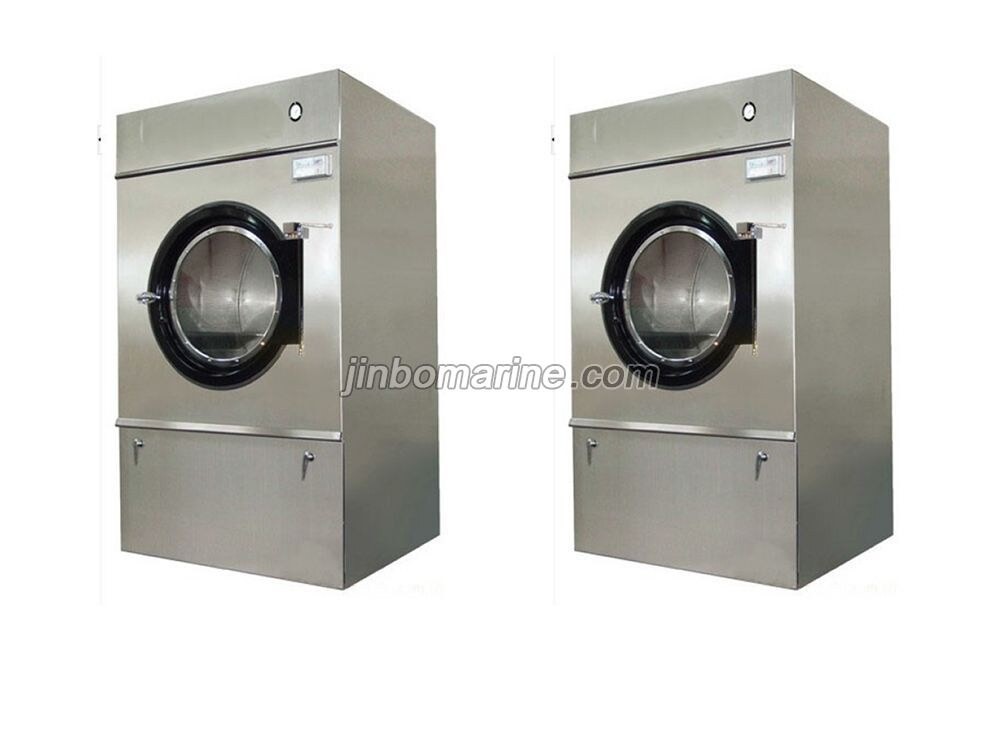

D25D Marine Tumble Dryer

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product introduction:

1.The shell adopts stainless steel, durable;

2.The high density of imported stainless steel stamping forming the inner cylinder, the clothes wear small, high clothes drying efficiency;

3.The precision machining shaft seat system, high stability and low operation noise;

4.The large caliber loading door mechanism, convenient for taking and placing clothes;

5.The efficient air heat exchanger system, effectively reduce the energy consumption;

6.The high quality stainless steel electric heating tube, longer service life;

7.It can remove the installation foot.

Technical data:

Model Dimension(mm) Capacity(kg) Power (kw) Volts(v) HZ N/W(kg)
D22D 760X850X1540 10 8.6 380V/415V/440V/480V-3P 50/60Hz 130
D25D 760X930X1540 12 10.5 380V/415V/440V/480V-3P 50/60Hz 150
D35D 760X1050X1540 15 12.5 380V/415V/440V/480V-3P 50/60Hz 170
D45D 910X1150X1920 20 16.5 380V/415V/440V/480V-3P 50/60Hz 230
