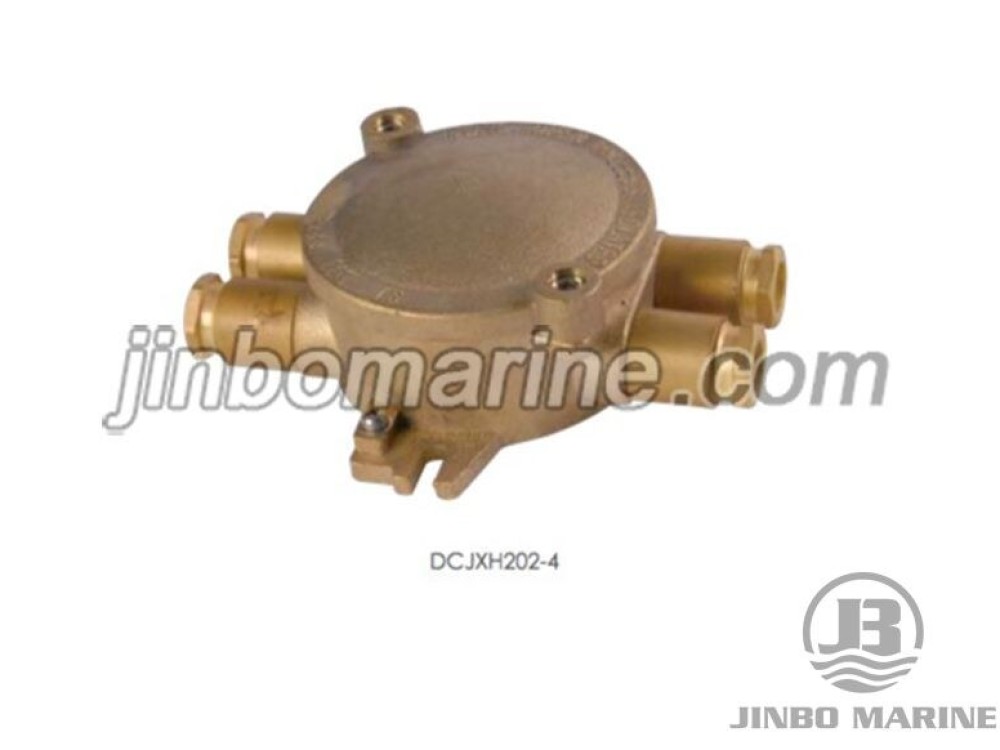

DCJXH202 Explosion-proof Junction Box

Request a Quote Not what you need, please send your RFQs via Email.

Details

The scope of application

Mainly used for electric connection, circuit connected with the breaker for all kinds of ships, offshore oil, chemical industry and other places which may accumulate inflammable and explosive gas.

Products feature and products certification

Increased safety type of explosion-proof junction box, Explosion proof marked IICT6, it can work normally under the temperature -20 "C ~ +50 "C. The shell is made of high strength high quality brass pre-cession manufacturing forming. With good electrical properties and good waterproof performance. Protection class:lP56.Voltage:550V Current:20A.Cable outside diameter is diameter 13mm

Code Type Weight(kg)
510 DCJXH202-1 1.4
510/2 DCJXH202-2 1.4
510/3 DCJXH202-3 1.5
510/4 DCJXH202-4 1.6
