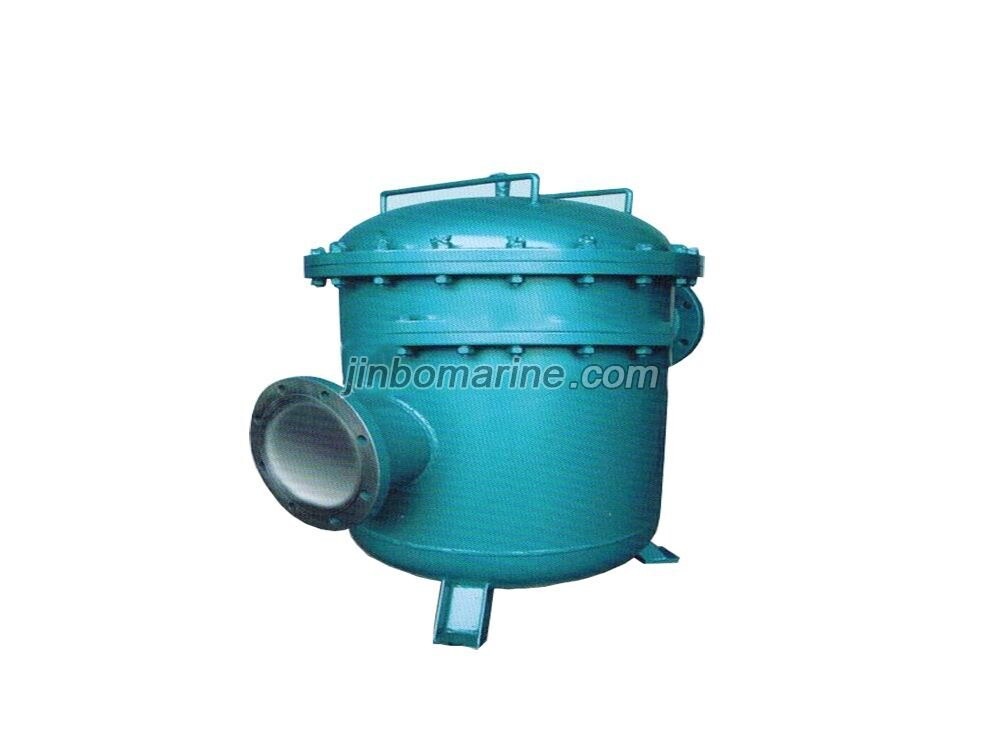

DDL25 Single Drum Strainer
- Category:Filter
- Delivery Time:15 days
- Packing Details:Wooden box
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
DDL25 Single Drum Strainer
1.The single drum strainer may act as strainer(first filter)before pump or bypass strainer after pump.meanwhile,it's applicable for filtering heavy oil and with self-sustaining function of heating.
2. Connection of single drum strainer: may be achieved in two options,e.g.straightforward connection or attached in a right-angle.shell of the strainer is made of Q235A, with element designed as stainless steel cage,filtering precision in spec anging from 40 mesh/inch are available upon request.
3. The product performs quite effectively in filtering while ensuring efficient pass-through of various oils,which is easy to operate and convenient for maintenance.
4. The single drum strainer is widely applied for filtering lubricant,fuel and heavy oils in oil pipelines attached to various models of diesel generators both onboard and on land,it's also applied for filtering process of petroleum,power,chemical and sewage treatment facilities.
DDL25 Single Drum Strainer Technical Parameters
Model | Structure size | Flange | Anchor | Weight(kg) | ||||||||
L | H1 | H2 | H3 | H4 | Φ | D | D2 | F2 | N-DO | E | ||
25 | 112 | 335 | 280 | 213 | 113 | 140 | 98 | 75 | 62 | 4-Φ12 | 132 | 11.5 |
40 | 180 | 400 | 348 | 298 | 228 | 206 | 150 | 110 | 88 | 4-Φ18 | 200 | 40 |
50 | 180 | 452 | 390 | 340 | 270 | 206 | 165 | 125 | 108 | 4-Φ18 | 200 | 45 |
