Deck Mounted Chock NS2589

  • Category:Marine Chock
  • Material:Cast Steel
  • Standards:NS2589
  • Certificate:ABS , BV, DNV , LR , GL , CCS, RINA , mill certificate etc.
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

China Deck Mounted Chock NS2589:

Material:

Type A welded: steel NS12 132(R St42-2)

Type B cast:cast steel NS 11 640(Sst 400)

Quality of manufacture:

Surfaces coming into contact with the mooring the line shall be smooth. Furthermore burrs or sharp edges shall not occur.

Surface treatment:

The chocks shall be cleaned to Sa2.5 inaccordance with Swedish standard SIS 05 59 00
and painted with an anticorrosive primer.

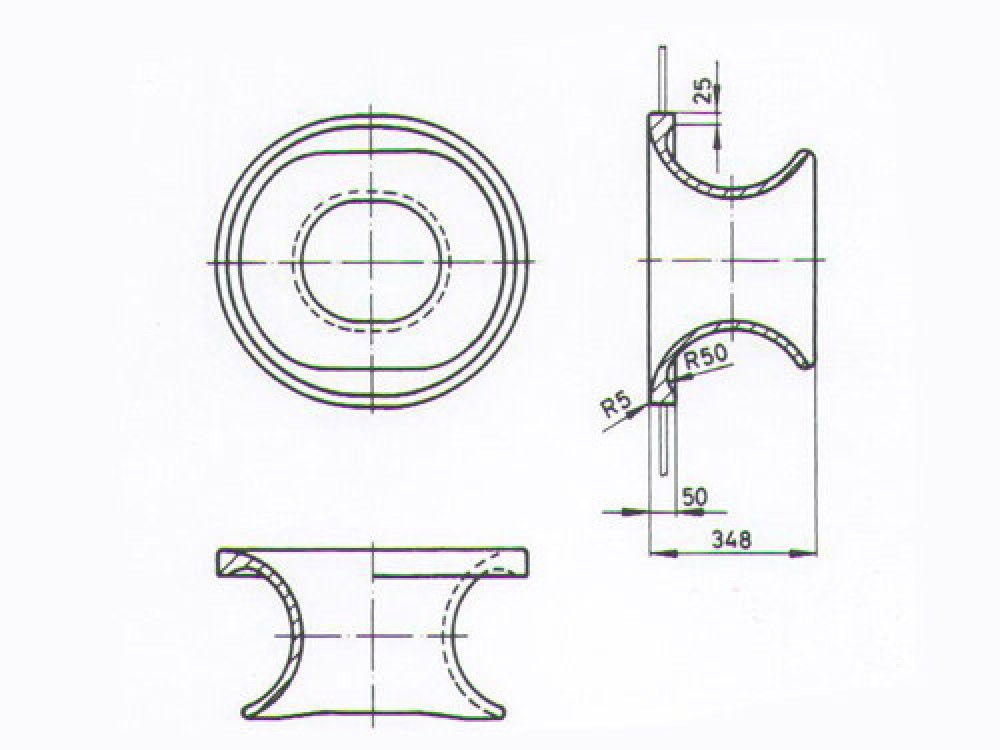

NS2589 chock
Nominal size Mass(kg)
300*250 114
400*250 153

Also we can supply other kinds of Chocks as below.

Deck mounted Panama chock JIS F2017-1982 type AC

Bulwark mounted Panama Chock JIS F2017-1982 Type BC

Deck Mounted Closed Chock JIS F2005-1975

Bulwark mounted mooring chock JIS F 2007-1976 type A

Bulwark Mounted Chock DIN81915-1998 Type A

Bulwark Mounted Chock DIN81915-1998 Type B

Deck mounted Chock DIN81915-1998 type C

Deck mounted Chock DIN81915-1998 type D

Deck mounted Chock DIN81915-1998 type E

Deck Mounted Chock EU Type

Bulwark Mounted Chock EU Type

Single Point Mooring Pipe JIS F 2030-1978 type A

Single Point Mooring Pipe JIS F 2030-1978 type B

Deck mounted chock type A NS2587

Deck mounted chock type B NS2587

Deck mounted chock type A NS2588

Deck mounted chock type B NS2588

Deck mounted chock type A NS2589

Deck mounted chock type B NS2589

Deck mounted chock type A NS2590

Deck mounted chock type B NS2590

Mooring chock CB34 -76 TYPE A

Mooring chock CB34 -76 TYPE C

Open chock JISF 2006 TYPE FC
