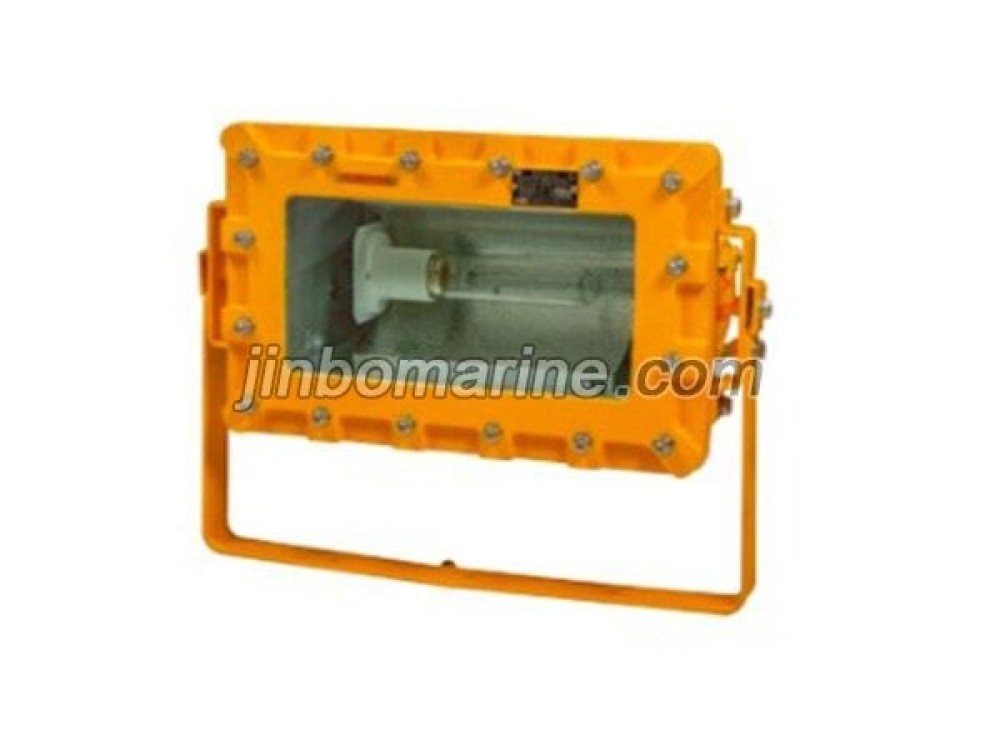

dHF220-300 Exproof Flood Light

Request a Quote Not what you need, please send your RFQs via Email.

Details

China dHF220-300 Exproof Flood Light:

Application

Applied to illumination of ship oil exploit platform, chemical product and explosive gas plaze zone 1 and zone 2.

Product Feature

1. The body is made of cast brass, lampshade is transparent toughened glass, with stainless steel metal guard, high water-proof and anti-corrosion.

2. Production class is IP56.

Standard

1. Chapter 3, Part 4 of Classification Society Rules for Classification of Sea-going Steel Ships 2015 and its Amendments;

2.GB7000.1-2015,Luminaires –Part1:General requirements and tests.

3.Confirm to the GB3836.1-2010<explosion environment first parts:general requirements for equipment> and GB3836.2-2010<explosive environment-parts second:equipment protected by flameproof enclosre D>

Specification

Type Voltage Power Luminous Flux Lamp Golder Ex-proof Symbol Light Source Weight
dHF220-300 110/220V 50/60Hz 300W 1410lm E40 Exd II BT3 Gb Halogen Lamp 16kg
dHF220-500 110/220V 50/60Hz 500W 3650lm E40 Exd II BT2 Gb 16kg
ExhL-300 110/220V 50/60Hz 300W 1410lm E40 Exd II BT4 Gb 30kg
