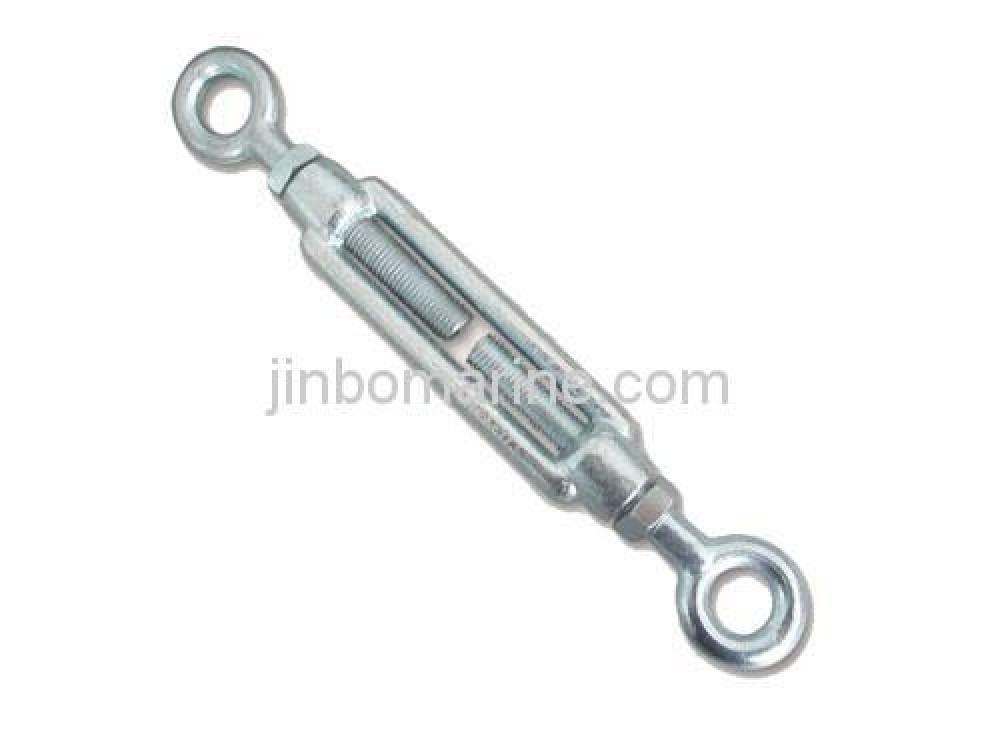

DIN 1480 Turnbuckles

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Main Specification

Turnbuckle usually Forged, Free forged and Casting.

The surface of turnbuckle original color, galvanised,hot galvanized

Material is 45# Steel, Q235

Size Table

Dimension Permissible Load weight kg/100pcs L1 m L2 b di da i
D mm(inch) kg N mm mm mm mm mm mm mm
M6 230 2250 7.8 110 10 60 53 10 20 4.5
M8 418 4100 14.8 110 14 60 55 12 26 6.5
M10 663 6500 29.4 125 20 65 60 14 30.5 8
M12 948 9300 36.3 125 21 75 70 18 37.5 10.5
M16 1804 17700 91 170 27 100 90 22 48 13
M20 2752 27000 156 200 34 115 100 25 51 20
M24 3996 39200 325 255 39 140 130 28 66 27
M30 6371 62500 415 255 45 145 130 35 83 31
M32 6585 64600 595 295 55 160 150 36.5 88 33
M36 9276 91000 745 295 55 160 150 44 104 40
M38 9572 93900 1076 330 63 185 170 42 104 39
