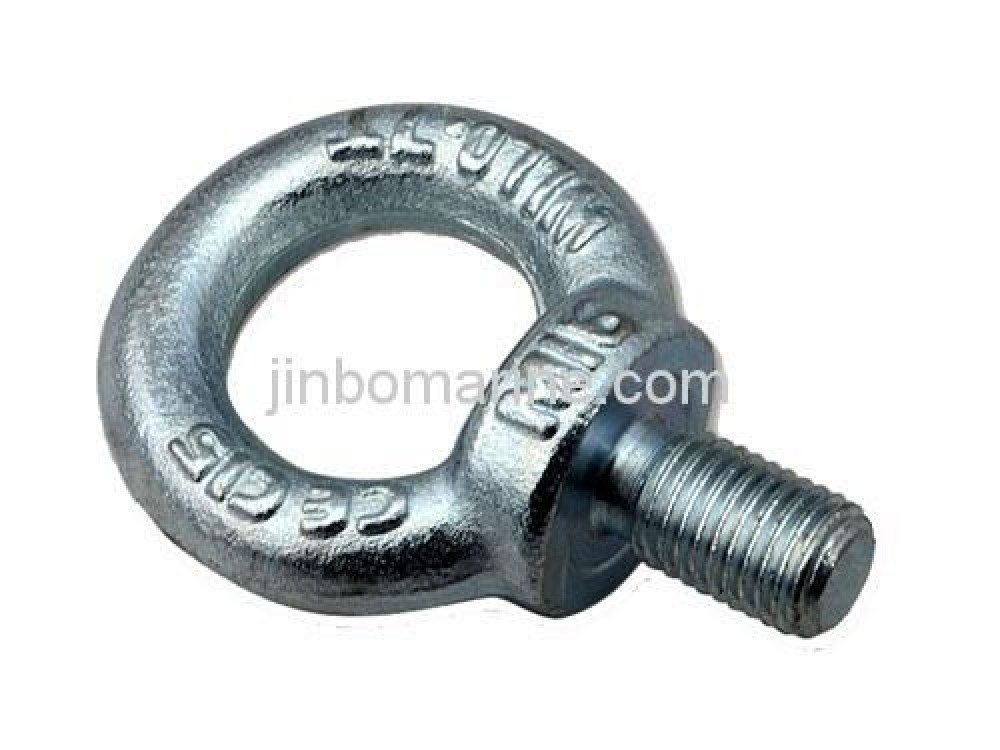

DIN 580 Eye Bolt

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Main Specification

Drop Forged

Material: Q235, 45# Steel

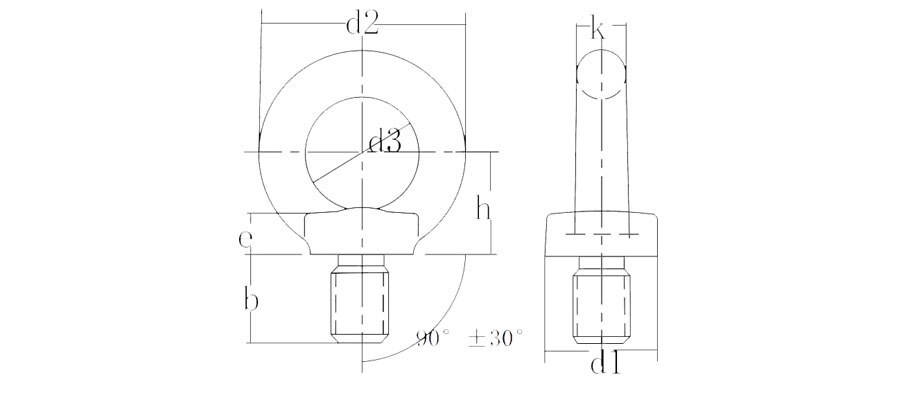

Size Table

Size d WLL t WLL t DIMENSIONS Weight kg
d1 mm d2 mm d3 mm b mm e mm h mm k mm
M6* 0.07 0.05 17 28 16 13 6 17 6 5
M8* 0.14 0.095 20 36 20 15 6 18 8 6
M10* 0.23 0.17 25 45 25 18 8 22 10 11
M12 0.34 0.24 30 54 30 22 10 26 12 18
M14* 0.49 0.34 35 63 35 28 12 30 14 28.5
M16 0.7 0.5 35 63 35 28 12 30 14 28
M20 1.2 0.83 40 72 40 30 12 35 16 45
M22* 1.5 1.05 45 81 45 35 14 40 18 67
M24 1.8 1.27 50 90 50 38 16 45 20 87
M27* 2.5 1.65 50 90 50 38 18 45 20 88
M30 3.6 2.6 65 108 60 45 18 55 24 166
M33* 4.3 3.2 65 108 60 45 22 55 24 172
M36 5.1 3.7 75 126 70 55 22 65 28 265
M39* 6.1 4.3 75 126 70 55 26 65 28 280
M42 7 5 85 144 80 65 30 75 32 403
M45* 8 5.5 85 144 80 65 30 75 32 425
M48 8.6 6.1 100 166 90 70 35 85 38 638
M52* 9.9 7.3 100 166 90 70 35 85 38 660
