DIN6899B Thimble

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

DIN6899B Thimble

Material: Q235

Size: 1/8" to 1 1/4"

Used for wire rope or mooring rope.

Size Table

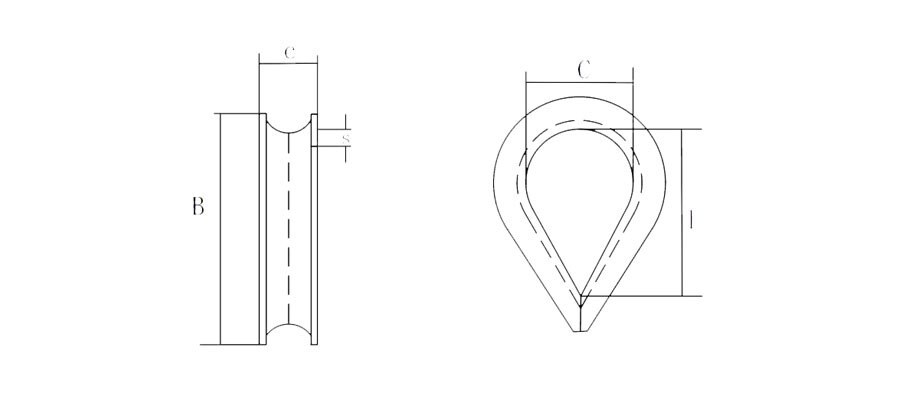

Diameter Rope(mm) Groove Width a(mm) Overall Length B(mm) Inside Length I(mm) Inside Width C(mm) Back Thickness s(mm) Approx.weight per 100 Pcs.(kg)
2.5 3 22 19 12 1.6 0.5
3.5 4 26 21 13 1.6 0.8
4 5 32 23 14 1.9 1
5 6 38 25 16 2.4 1.6
6 7 44 28 18 2.4 1.9
7 8 51 32 20 2.8 3
9 10 57 38 24 3.1 4.7
11 12 64 45 28 3.3 6.8
13 13 70 48 30 3.3 8
13 14 76 51 32 3.7 10
15 16 83 58 36 3.8 14.5
16 17 89 61 38 4.7 18
17 18 95 64 40 4.7 20
18 20 102 72 45 5.7 29
20 22 114 80 50 5.7 32
22 24 127 90 56 6.5 47
24 26 140 99 62 6.8 59
26 28 152 112 70 8 80
28 30 165 120 75 8 110
30 32 178 128 80 8 123
