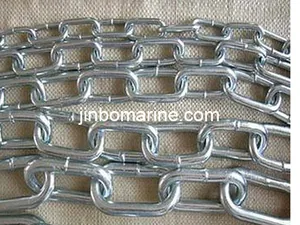

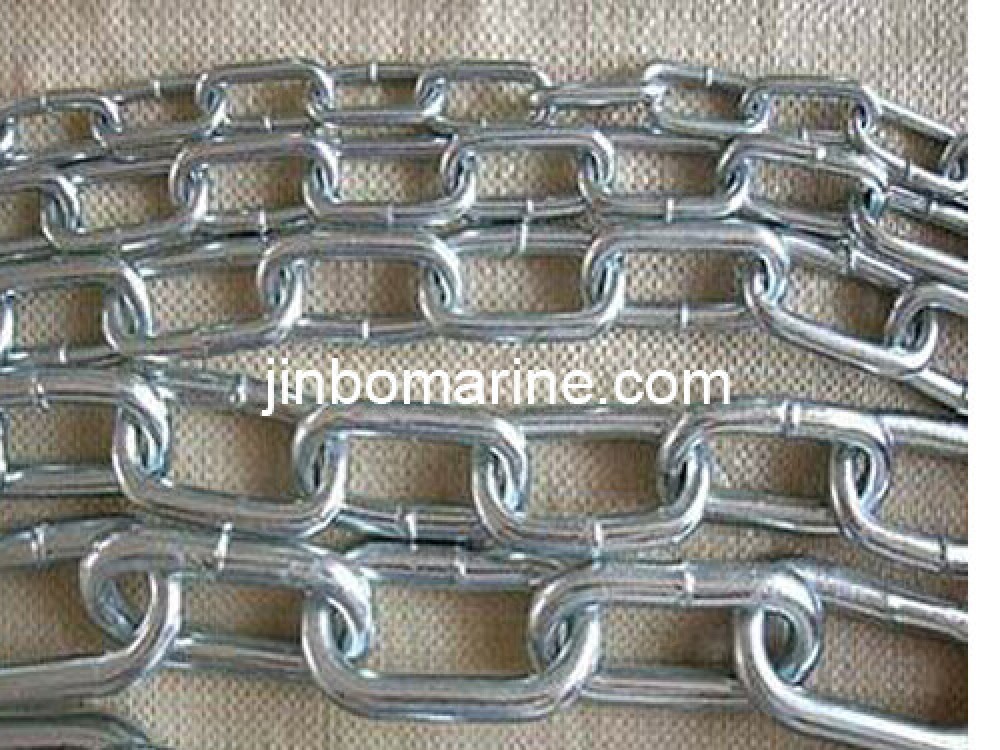

DIN763 Long Link Chain
- Category:Industrial Chains
- Material:carbon steel, Q235,Q195 or as per your requirement.
- Standards:Germany DIN763
- Certificate:mill certificate
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China DIN763 Long Link Chain:
We are an experienced factory tosupply chains of Beautiful Shape, Strong Welding as follows:G80 high strength chain, hatch cover chain, fishing chain, mining chain, conveyor chain, USA standard chain, DIN series of chains, Australian standard chain and Norwegian standard chain. We also can make the nonstandard or special tensile chain according to clients' requirements, high quality and reasonable price.
Product description:
1.material:carbon steel, Q235,Q195 or as per your requirement.
2.Surface treatment: Electrical galvanized, Hot dipped galvanized,Self-color, polished, Black-painted and other .
3. Application: Chains for lifting, hoist parts
4. Packaging choice:
a.gunny bag, b.Iron drum,c.plastic drum,d.wooden box e.plastic wheels f.others as required
Our advantages:
1.About welding quality:
Welding part is smooth, firm, beautiful by advanced technical machine
2.About galvanized quality: Our electric galvanized chains with thick zinc coating,
Galvanized processing time: 40 minutes,galvanized can guarantee 6 months not be rusty
3. We have strict quality control system in the whole process of producing chains
4. We can supply free samples to all customers
Working procedures for steel link chains:
1.Receive the purchase order 2. Product requirement 3.Buy raw material 4. Inspect raw material 5. Store raw material 6. Wire rod drawing 7. Bending 8.Welding 9.Check surface 10. Sampling and breaking test 11.Calibration 12. Proof load test 13. Zinc plated or HDG 14. Sampling and breaking test 15. Cutting 16. Final inspection 17. Packing 18. After-sale service
Small quantity and trial order can be accepted./Sample order accepted.
We have confidence about the quality of the product.
We can manufacture according to your detail requestments, when you order our products please give us your detail requestments
| DIN763 link chain | |||||||||
| Size | Inside length | Outside width | Working load | Test load | Breaking load | Weight per M | |||
| MM | ±MM | MM | ±MM | MM | ±MM | KG | N | N | KG |
| 2 | 0.5 | 22 | 1 | 8 | 0.4 | 25 | 800 | 1250 | 0.06 |
| 3 | 24 | 1.1 | 10 | 0.5 | 40 | 800 | 2000 | 0.1 | |
| 3 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15 | |
| 4 | 32 | 1.5 | 16 | 0.8 | 100 | 2000 | 6000 | 0.27 | |
| 5 | 35 | 1.8 | 20 | 1 | 160 | 3150 | 10000 | 0.43 | |
| 6 | 42 | 2 | 24 | 1.2 | 224 | 4500 | 14000 | 0.63 | |
| 7 | 49 | 2.5 | 28 | 1.4 | 300 | 6000 | 18000 | 0.86 | |
| 8 | 52 | 2.5 | 32 | 1.6 | 400 | 8000 | 25000 | 1.1 | |
| 9 | 59 | 3 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41 | |
| 10 | 1 | 65 | 3.2 | 40 | 2 | 630 | 12500 | 40000 | 1.75 |
| 11 | 72 | 3.4 | 44 | 2 | 790 | 15800 | 47500 | 2.11 | |
| 12 | 78 | 3.6 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55 | |
| 13 | 82 | 4 | 52 | 2.5 | 1000 | 21200 | 63000 | 2.95 | |
| 16 | 100 | 5 | 64 | 3.2 | 1600 | 33000 | 100000 | 4.45 | |
| 18 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65 | |
| 19 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25 | |
| 20 | 120 | 6 | 75 | 3.8 | 2500 | 50000 | 160000 | 7 | |
| 22 | 127 | 6 | 82 | 4 | 3170 | 63300 | 190000 | 8.55 | |
| 25 | 140 | 6.6 | 88 | 4.2 | 4090 | 81700 | 245000 | 10.9 | |
| 28 | 152 | 7 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.9 | |
| 32 | 171 | 7.8 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.2 | |
Supply scope:
1.Ordinary mild steel link chain（Also known as English standard link chain）
Short link chain
Medium link chain
Long link chain
Ordinary decoration chain.
2.American standard link chain ASTM1980
Proof coil chain (G30),High test chain (G43),Transport chain (G70)
3.American standard link chain NACM1990
Proof coil chain (G30),High test chain (G43),Transport chain (G70)
4.American standard link chain NACM1996/2003
Proof coil chain (G30),High test chain (G43),Transport chain (G70)
5.German standard link chain
DIN5685Ashort link chain
DIN5685Clong link chain/DIN763 link chain
DIN764 link chain
DIN766 link chain)
6. Australian standard chains
Short link chain,Medium link chain,Long link chain,Grade 70 chain,Grade L chain
7.Norwegian standard link chain
8.Korean standard link chain
9.pets chain
