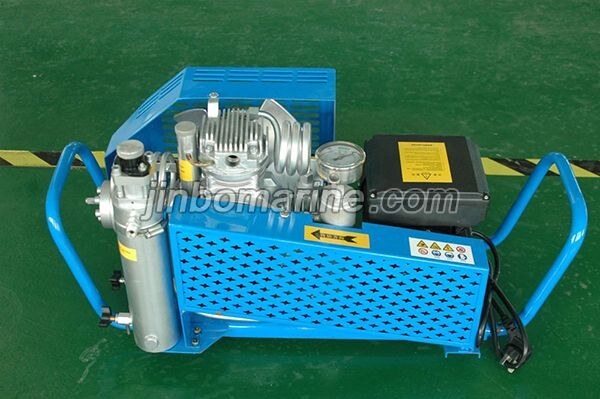

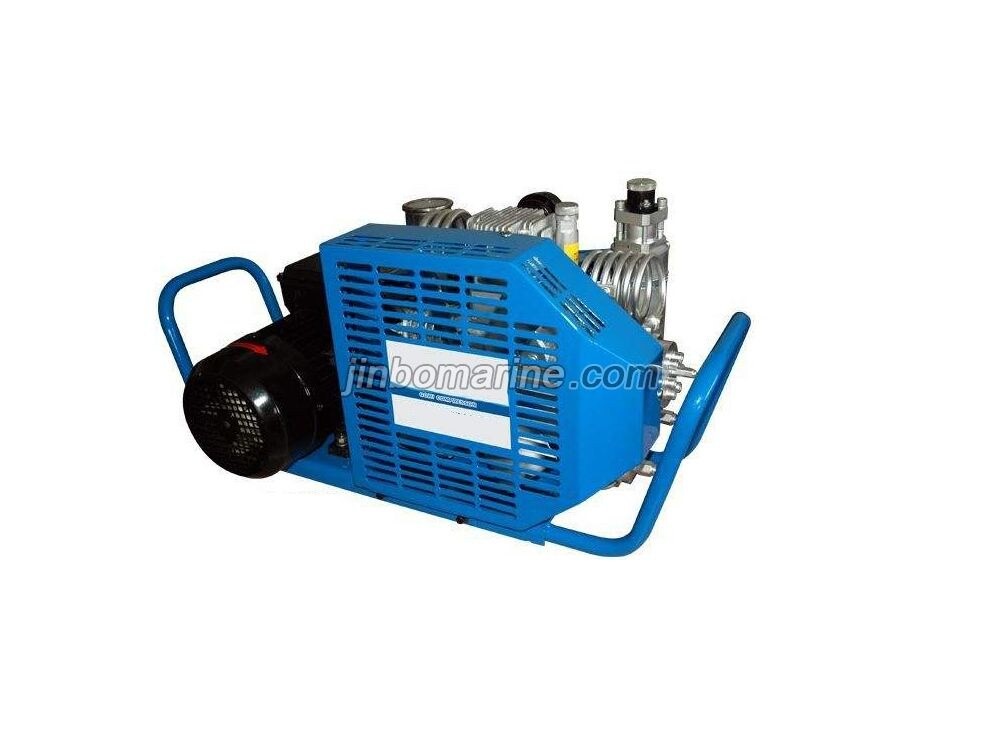

Diving Breathing High Pressure Air Compressor LYW100

LYW100 high pressure air compressor is designed for breathing in diving, firefighting industry. It is light and small. It compresses free air to 30Mpa and removes oil, vapor and other contaminants by filters and separators. The air flow is stable. It is safe and reliable source of pure air. The air quality accords to EN international breathing compressed air quality.

Air-cooling piston reciprocating
Oil splash lubrication
Copper pipe inter-cooler and after cooler
Specially treated alloy cylinder, piston and piston ring
High-strength nylon cooling fan assembly
Intake filter
Anti-shock floor mat
Manual condensate drain knob
Filling hose and filling valve
Safety valves protection for every stage
High temperature resistance plastic powder coating steel frame and base
Activated carbon, monocular sieve for air purification in the filter
Consumables and manuals are provided with every compressor
The warranty period is 1 years

Model	Operating pressure	Drive	Delivery rate	Power	Dimension	Net weight	Noise level
LYW100C	Max 300BAR	Honda engine	100L/min	5.5Hp	84*37*40	48 kg	<79 dB（A）
LYW100A	Max 300BAR	Three-phase motor	100L/min	3kw	80*37*40	48 kg	<78 dB（A）
LYW100B	Max 300BAR	Single-phase motor	100L/min	2.2kw	80*37*40	49 kg	<78 dB（A）
