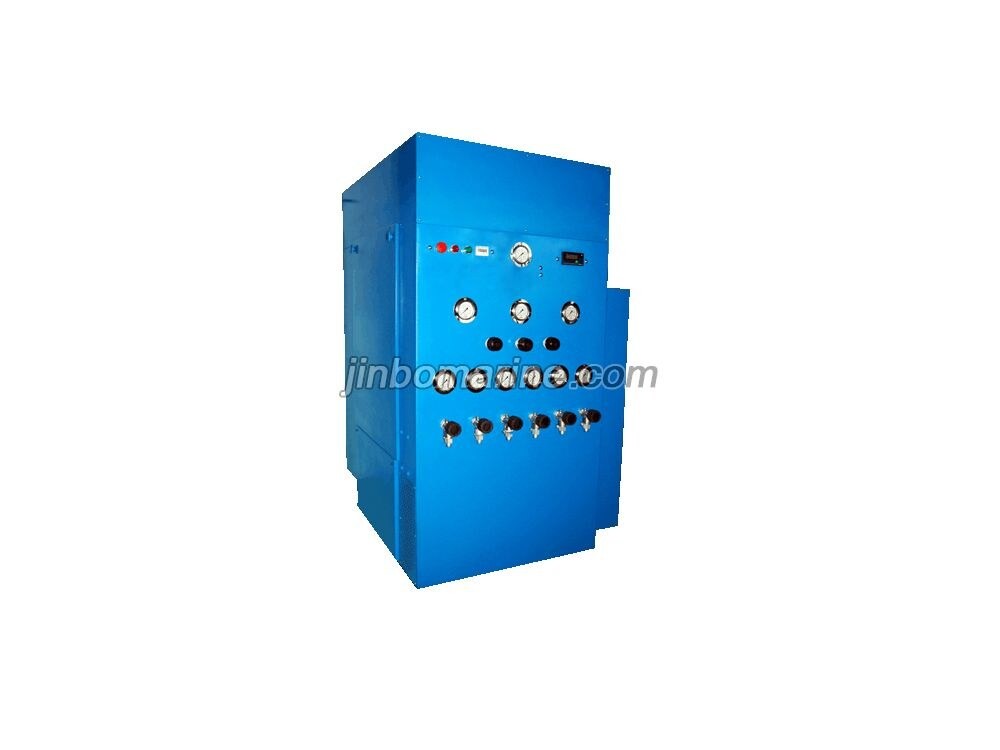

Diving Breathing High Pressure Air Compressor LYW500
- Category:Diving Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Diving Breathing High Pressure Air Compressor LYW500:
LYX500 high pressure air compressor is silent and stationary compressor for breathing in diving, firefighting industry. It compresses free air to 30Mpa and removes oil, vapor and other contaminants by filters and separators. Noise is very small. It is safe and reliable source of pure air. The air quality accords to EN international breathing compressed air quality.
Features
Air-cooling piston reciprocating
Oil splash lubrication
Copper pipe inter-cooler and after cooler
Specially treated alloy cylinder, piston and piston ring
High-strength nylon cooling fan assembly
Intake filter
Anti-shock floor mat
Manual condensate drain knob
Filling hose and filling valve
Safety valves protection for every stage
High temperature resistance plastic powder coating steel frame and base
Activated carbon, monocular sieve for air purification in the filter
Consumables and manuals are provided with every compressor
The warranty period is 1 years
Oil splash lubrication
Copper pipe inter-cooler and after cooler
Specially treated alloy cylinder, piston and piston ring
High-strength nylon cooling fan assembly
Intake filter
Anti-shock floor mat
Manual condensate drain knob
Filling hose and filling valve
Safety valves protection for every stage
High temperature resistance plastic powder coating steel frame and base
Activated carbon, monocular sieve for air purification in the filter
Consumables and manuals are provided with every compressor
The warranty period is 1 years
Diving Breathing High Pressure Air Compressor LYW500 Main Specifications
Model | Drive | Operating pressure | Delivery rate | Power | Dimension | Net weight | Noise level |
LYX500 | Three-phase motor | Max 30Mpa | 500L/min | 11kw | 98*120*165 Cm | 500 kg | <75 dB(A) |
