DJC-D Dewatering system

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description

DJC-D dewatering system is consists of VCB, JB10 and electric butterfly valves with actuator. VCB is installed on the bridge, ECC or other area in the accommodation, JB10 is installed at fore peak cabin. The VCB send out control signal to JB10, to operate corresponding electric actuate valve. And the valve position can be feedback to VCB and be indicated. Adopting the digital communicate technology, the system can save plenty of cost on cables and manpower labor.

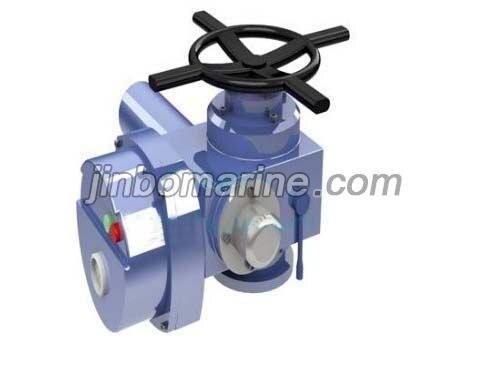

Electric Actuator (Forepeak Tank)

Technical Parameter:
Type: DCJ-V300
Power supply: AC380V 50Hz
Power: 400W
Output torsion: 300N.m
Ring: 40(adjustable)
Protection: IP68
Installation: Vertical

Electric Actuator (Bosun store, Under deck pipeline)

Technical Parameter:
Type: DCJ-HYD50(B)/60(B)/80(B)
Power supply: C220V
Power: 40W
Butterfly valve: DN50
Working pressure: PN1.0Mpa
Protection: IP68
Installation: Vertical
