DJC-U Portable Oil - Water Interface Detector

DJC-U Portable Oil - Water Interface Detector(for short Detector) is used to measure the oil water interface for oil tank or sewage-oil tank，also be used for other places. According to MEPC 51/22/Add.2 Rule 32 shall comply with Article 3 of this Annex 4 and 5 requirements on oil tankers of 150 gross tonnage and should be approved by the competent authority with an effective oil-water interface detectors, in order to rapid and accurate determination of oil / water interface，the other for the oil-water separator tank, and which will direct discharge of effluent into the sea, is also due this detector.

The sensor body made of stainless steel pipe.The sensors has been calibrated at the factory, when in use or replacement of the probe without recalibration.

This device meets a variety of measurement, such as high and low viscosity liquids, hydrocarbons (light), the remaining amount of corrosive

Model: DJC-U;
Material: Cast Aluminum + stainless steel fast connection;
Product Color: Black;
Interface Detection Accuracy : ±2㎜；
Temperature Accuracy: ±0.1℃
Space Interface Instructions: Audio alarm or Visual alarm option;
Detection Sensor Diameter: 19 mm;
Distance (Fast Connection from the plane to the reading mouth): 496 mm;
Minimum Detect Level Surface: 6 mm;
Environment: Temperature :20~55 ℃; Humidity: 15% ~ 95%
Medium Temperature: -25℃～110℃;
Liquid surface instructions way: can distinguish between audio and LCD character + numerical double indicator;
Shell Explosive-proof Grand: IP44;
Detection sensor with X8;
Detection Response Time: ≤1.5s;

Power supply: Alkaline batteries 2 pcs 6 LR16 type 9 V (+ 30%-25%);
Measurement Connections Type: Fast connectors;
Weight: 15 KG (Including cases 5.5 KG);
Measuring range of the temperature sensor:-40 ℃ to 200 ℃;
Outline Dimension (high * wide* thick) : 671.5*326*202mm;

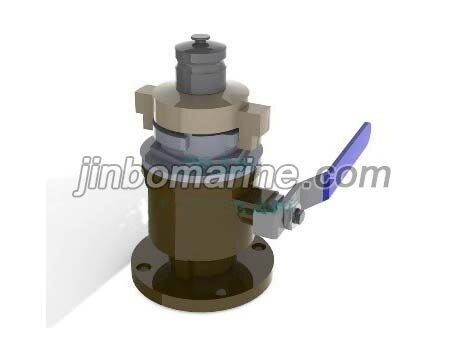

Deck valve coupled with Portable oil-water interface detector, special used to measure the oil level in cargo oil tanks.
