DKX-9 Marine Electric Oven

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

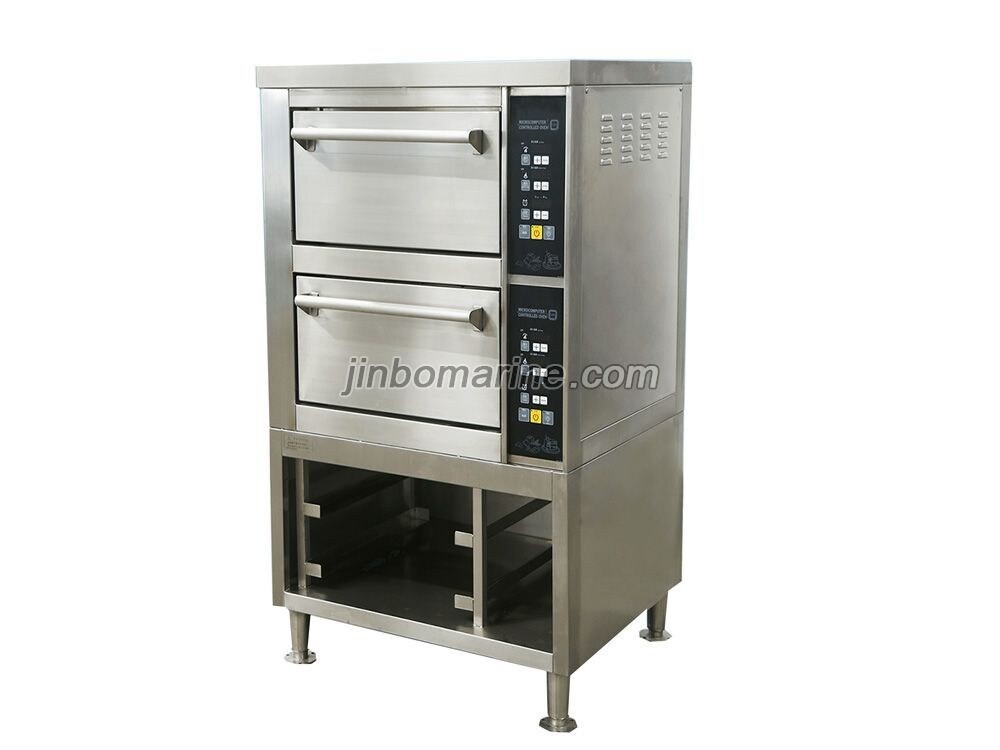

DKX-9 Marine Electric Oven

1. All stainless steel structure
2. Two sets of heaters are installed in the oven, and they are controlled independently
3. The temperature of the oven can be set arbitrarily within the range of 50°C-300°C, and the temperature is automatically constant
4. There is a matching bakeware
5. Germany EGO temperature control switch
6. There are various configuration combinations available for rotation
7. Equipped with stainless steel adjustable sole for easy installation on board
8. Optional computer panel temperature control

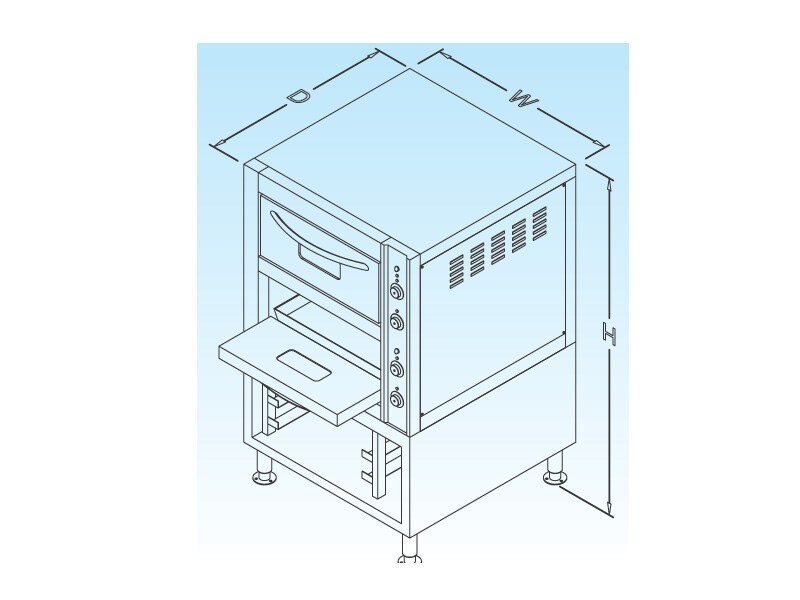

DKX-9 Marine Electric Oven Drawing



DKX-9 Marine Electric Oven Parameters

Model DKX-3 DKX-9 DKX-11 DKX-15 DZ-503 DZ-603
Voltage 380/415V-3PH-50Hz 440/480v 3ph-60Hz
Power(kw) 7.2 9.6 12 14.4 16.5 21
Size(mm) 850x700x1000 850x700x1380 850x700x1470 850x700x1470 1300x983x1175 1770x1100x1740
Weight(kg) 100 120 210 215 450 600
Remark One oven and one fermentation tank Two ovens and one storage cabinet, mechanical type or computer type can be optional Two ovens, one storage cabinet and one fermentation box Three ovens and one storage cabinet.mechanical type or computer type can be optional Three layers, six plates Three layers, nine plates
