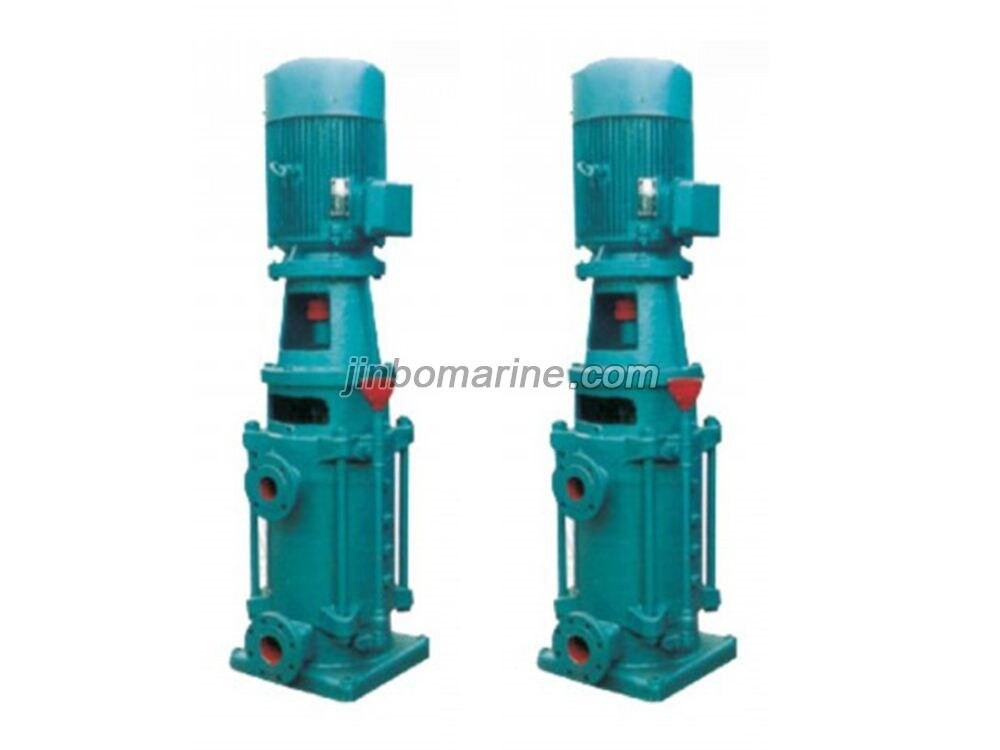

DL, DLR Marine Vertical Multistage Centrifugal Pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

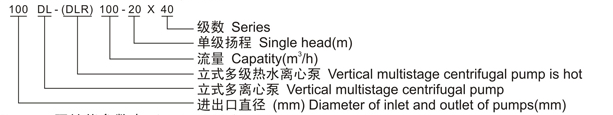

Model Descroption:

Technical data:

Sheet 1:

Model Caliber
(mm)
Capacity
(m3/h)
Head
(m)
Power
(kw)
Speed
(r/min)
NPSH
(m)
40DL(DLR)6-12x2 40 6 24 1.5 1480 3.2
40DL(DLR)6-12x3 36 2.2
40DL(DLR)6-12x4 48 3
40DL(DLR)6-12x5 60 4
40DL(DLR)6-12x6 72 4
40DL(DLR)6-12x7 84 5.5
40DL(DLR)6-12x8 96 5.5
40DL(DLR)6-12x9 108 7.5
40DL(DLR)6-12x10 120 7.5
40DL(DLR)6-12x11 132 7.5
40DL(DLR)6-12x12 144 11
50DL(DLR)12.5-12.5x2 50 12.5 25 2 2.2
50DL(DLR)12.5-12.5x3 37.5 3
50DL(DLR)12.5-12.5x4 50 4
50DL(DLR)12.5-12.5x5 62.5 5.5
50DL(DLR)12.5-12.5x6 75 7.5
50DL(DLR)12.5-12.5x7 87.5 7.5
50DL(DLR)12.5-12.5x8 100 7.5
50DL(DLR)12.5-12.5x9 112.5 11
50DL(DLR)12.5-12.5x10 125 11
65DL(DLR)30-15x2 65 30 30 5.5 2.82
65DL(DLR)30-15x3 45 7.5
65DL(DLR)30-15x4 60 11
65DL(DLR)30-15x5 75 15
65DL(DLR)30-15x6 90 15
65DL(DLR)30-15x7 105 18.5
65DL(DLR)30-15x8 120 22
65DL(DLR)30-15x9 135 22
65DL(DLR)30-15x10 150 30

Sheet 2:

Model Caliber
(mm)
Capacity
(m3/h)
Head
(m)
Power
(kw)
Speed
(r/min)
NPSH
(m)
80DL(DLR)50-20x2 80 50 40 11 1480 2.2
80DL(DLR)50-20x3 60 15
80DL(DLR)50-20x4 80 22
80DL(DLR)50-20x5 100 30
80DL(DLR)50-20x6 120 3
80DL(DLR)50-20x7 140 37
80DL(DLR)50-20x8 160 45
80DL(DLR)50-20x9 180 55
80DL(DLR)50-20x10 200 15
100DL(DLR)72-20x2 100 72 40 18.5 2.8
100DL(DLR)72-20x3 60 30
100DL(DLR)72-20x4 80 37
100DL(DLR)72-20x5 100 37
100DL(DLR)72-20x6 120 45
100DL(DLR)72-20x7 140 55
100DL(DLR)72-20x8 160 55
100DL(DLR)72-20x9 180 75
100DL(DLR)72-20x10 200 18.5
100DL(DLR)100-20x2 100 100 40 18.5 2.8
100DL(DLR)100-20x3 60 30
100DL(DLR)100-20x4 80 37
100DL(DLR)100-20x5 100 45
100DL(DLR)100-20x6 120 55
100DL(DLR)100-20x7 140 75
100DL(DLR)100-20x8 160 75
100DL(DLR)100-20x9 180 90
100DL(DLR)100-20x10 200 90
150DL(DLR)150-20x2 150 150 40 30 2.8
150DL(DLR)150-20x3 60 37
150DL(DLR)150-20x4 80 45
150DL(DLR)150-20x5 100 55
150DL(DLR)150-20x6 120 75
150DL(DLR)150-20x7 140 90
150DL(DLR)150-20x8 160 90
150DL(DLR)150-20x9 180 110
150DL(DLR)150-20x10 200 132
