DL Type Lantern Houses
- Category:Navigation Buoy
- Delivery Time:30 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China DL Type Lantern Houses:

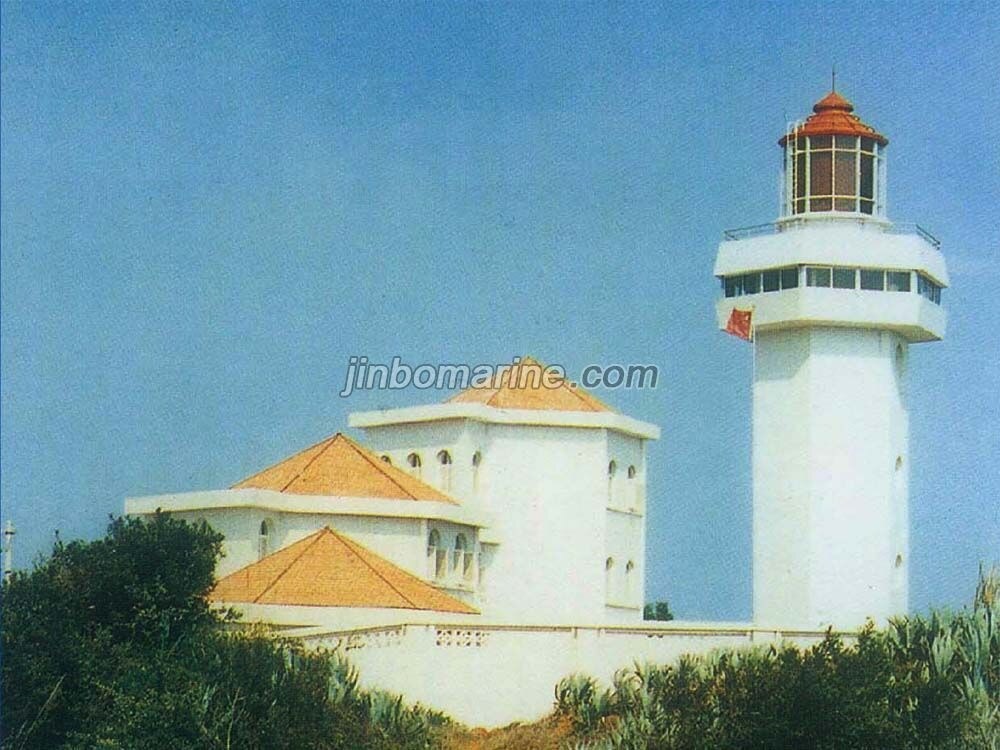

Lantern house is an important part of a large-size aid to navigation lighthouse, full set of lantern house include house base, glass window and roof.
Glass window has a series of diamenter 2.5M, 2.8M, 3.0M,3.5M and 4.2M, Most types of lantern can be installed in the glass window, there are two shapes of roof, cirular and spherical type, also can supply according to client request.
Dimension of Lantern Houses
Type | Diameter | Overall Height | Height of House Base | Height of glass window | Height of Roof |
DL2.5-D | 2.50M | 6.78M | 2.00M | 1.88M | 2.90M |
DL2.8-D | 2.80M | 6.90M | 2.00M | 2.20M | 2.70M |
DL2.8-D | 2.80M | 6.90M | 2.00M | 2.20M | 2.70M |
DL3.0-D | 3.00M | 7.38M | 2.00M | 1.88M | 3.50M |
DL3.5-D | 3.50M | 8.30M | 2.00M | 2.20M | 3.70M |
DL4.2-D | 4.20M | 8.70M | 2.00M | 2.40M | 3.90M |
