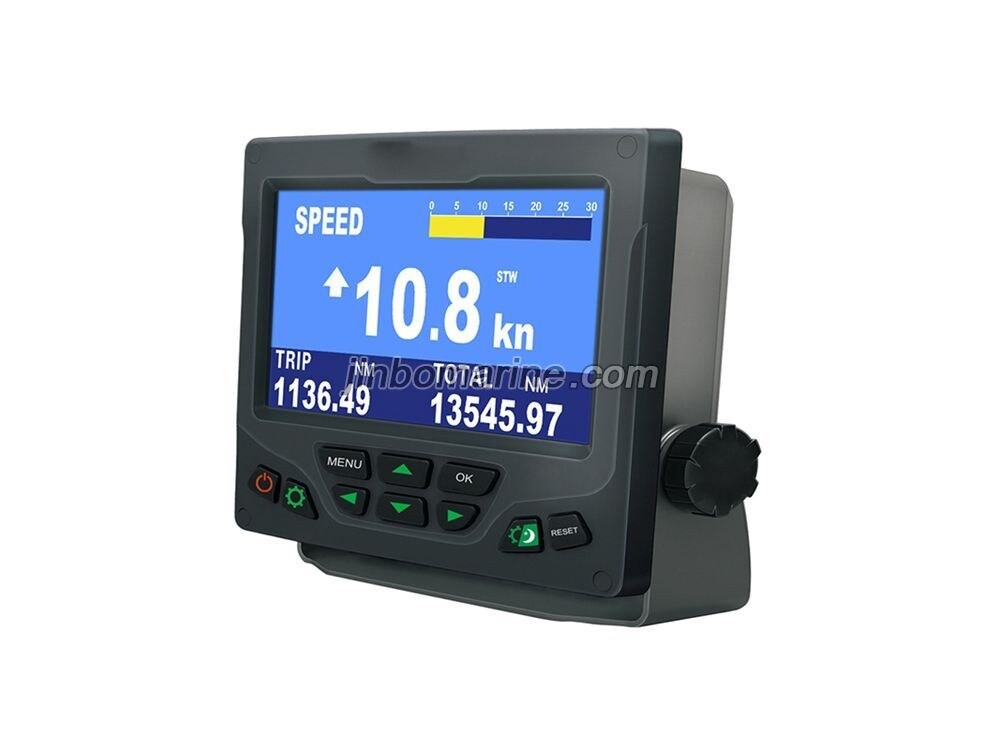

Doppler Speed log DS99

DS99 is a single axis Doppler Speed Log, displaying ship’s speed relative to water in one axis(STW, Fore/ Aft) and distance (Trip/ Total) in 7 inch TFT LCD, using Doppler principle.
Applying new technology of high integration and stability, DS99 provides you the optimum choice for large ship under 50000 GT.Its rugged and modern design offers excellent user feelings.

ITEM	SPECIFICATIONS
Display LCD	7 inch TFT，480×234 pixel
Power Supply	DC24V (18~33V), 20W
STW Speed	Arrow + Digital Speed Display
Data Output	IEC 61162-1 VBW, VLW
Language	English / Chinese
Trip Counter	Measurement from
	0 to 9999.99 NM
Total Counter	Measurement from
	0 to 999999.99 NM
Distance Accuracy	0.2NM or 2%, whichever is greater
Speed Accuracy	0.2kn or 2%, whichever is greater
Speed Range	-10 ~ +40 knots
Power Supply	AC110/220V 50/60Hz
Classification	IMO
Input	GPS Input VTG
Output	VBW and VLW
