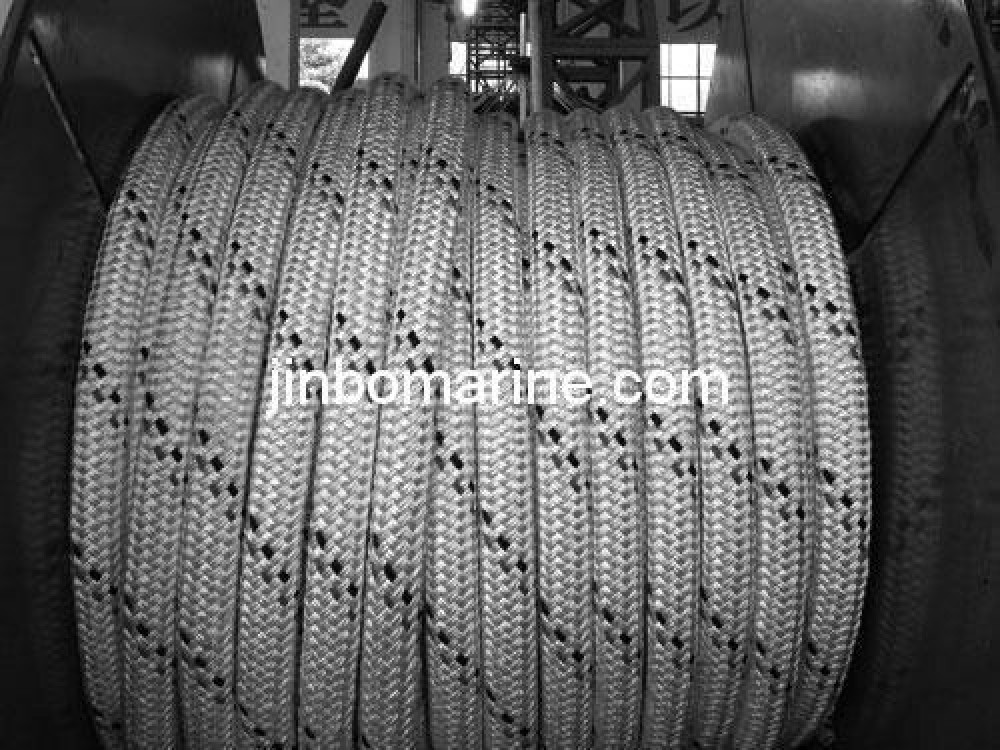

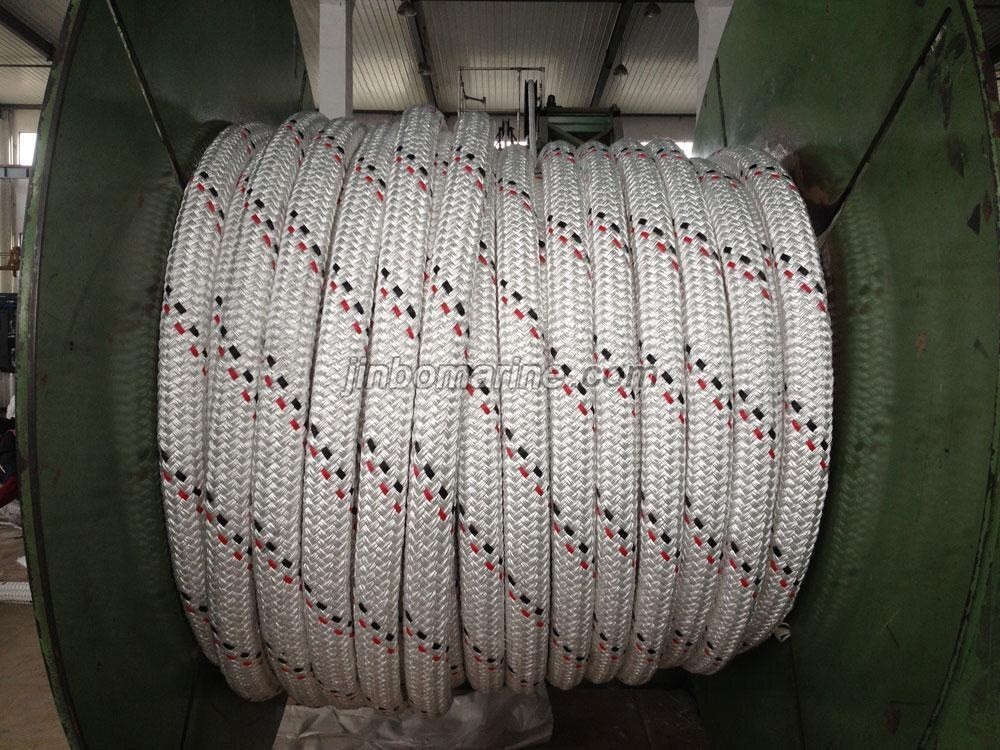

Double Braided Rope

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Double Braided Rope:

Double braided line is the only double-layer multif-ply rope in the country made by imported advanced equipment and technology from Germany.With fully-automatically computerized operation program,unique braided structure and excellent technology. It can rise up synthetic performance of rope and cable over 15% and has advantages of low elongation,wearing resistance and simple operation.

Mainly used in fields of naval vessels,ships,ocean transportation,mining operation fishing etc.

Main Performance:

Material Polyamide Multifilament Polypropylene multifilament Polyester Multifilament Polyester/Polypropylene Polyester/Polyamide Polyamide/Polypropylene
Density 1.14
non floating 		0.91
floating 		1.27
non floating 		0.99
floating 		1.19
floating 		0.98
non floating
Melting point 215℃ 165℃ 260℃ 260℃/165℃ 260℃/165℃ 260℃/165℃
Abrasion resistance Very good Medium Good Good Good Good
UV resistance Very good Medium Good Good Good Good
Temperature resistance 120℃ Max 70℃ Max 120℃ Max 80℃ Max 120℃ Max 80℃ Max
Chemical resistance Very good Good Good Good Good Good

Parameter Table:

Chart 1

Specifications Polyamide Multifilament Polyester
Diameter Circumference Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN)
mm Inch Ktex KN Ktex KN
4 1/2“ 10.3 3.7 12.2 3.2
6 3/4“ 23 8.3 27.4 7.2
8 1“ 41 15 49 13
10 1 1/4“ 64 23 76 20
12 1 1/2“ 92 33 109 29
14 1 3/4“ 126 45 149 39
16 2“ 164 59 195 51
18 2 1/4“ 207 75 246 65
20 2 1/2“ 255 92 304 80
22 2 3/4“ 309 111 368 97
24 3“ 368 127 440 114
28 3 1/2“ 501 172 597 157
32 4“ 654 225 779 205
36 4 1/2“ 828 285 998 262
40 5“ 1018 352 1220 324
44 5 1/2“ 1236 420 1470 378
48 6“ 1473 500 1760 450
52 6 1/2“ 1730 600 2050 535
56 7“ 2009 690 2380 621
60 7 1/2“ 2297 780 2740 712
64 8“ 2616 900 3120 810
72 9“ 3306 1090 3950 980
80 10“ 4089 1344 4870 1240
88 11“ 4954 1626 5910 1500
96 12“ 5892 1950 7020 1750
104 13“ 6911 2320 8250 2090
112 14“ 8024 2670 9560 2400
112 15“ 9198 3050 10970 2750
Chart 2

Specifications Polypropylene Multifilament Polyester/Polyamide
Diameter Circumference Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN)
mm Inch Ktex KN Ktex KN
4 1/2“ 8.4 2.4 12 4
6 3/4“ 18.8 5.4 27 9
8 1“ 33 9.6 48 16
10 1 1/4“ 52 15 75 25
12 1 1/2“ 75 22 108 35
14 1 3/4“ 102 29 147 47
16 2“ 133 38 192 62
18 2 1/4“ 168 49 243 78
20 2 1/2“ 208 60 300 96
22 2 3/4“ 252 73 363 116
24 3“ 299 86 430 138
28 3 1/2“ 404 118 585 182
32 4“ 528 154 760 236
36 4 1/2“ 668 195 970 314
40 5“ 825 240 1180 385
44 5 1/2“ 1006 294 1440 462
48 6“ 1190 354 1710 546
52 6 1/2“ 1390 411 2010 635
56 7“ 1610 474 2330 731
60 7 1/2“ 1850 539 2670 834
64 8“ 2090 613 3050 942
72 9“ 2640 767 3860 1180
80 10“ 3290 934 4860 1442
88 11“ 3950 1117 5780 1729
96 12“ 4710 1304 6870 2033
104 13“ 5480 1513 8070 2402
112 14“ 6390 1694 9360 2730
112 15“ 7350 2010 10740 3100

Chart 3

Specifications Polyester/Polypropylene Multifilament Polyamide/Polypropylene Multifilament
Diameter Circumference Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN)
mm Inch Ktex KN Ktex KN
4 1/2“ 9 2.6 8.5 2.7
6 3/4“ 20.2 5.8 19 6
8 1“ 36 10 34 11
10 1 1/4“ 56 16 53 17
12 1 1/2“ 81 23 76 25
14 1 3/4“ 110 31 104 33
16 2“ 143 41 136 44
18 2 1/4“ 181 52 172 55
20 2 1/2“ 224 64 212 68
22 2 3/4“ 271 77 256 82
24 3“ 325 93 304 98
28 3 1/2“ 430 124 415 130
32 4“ 576 162 542 170
36 4 1/2“ 732 216 679 227
40 5“ 902 266 838 280
44 5 1/2“ 1093 324 1030 341
48 6“ 1300 380 1230 400
52 6 1/2“ 1525 443 1440 466
56 7“ 1773 513 1670 540
60 7 1/2“ 2035 584 1910 615
64 8“ 2310 665 2170 700
72 9“ 2924 846 2730 890
80 10“ 3610 1036 3350 1090
88 11“ 4371 1254 4060 1320
96 12“ 5207 1501 4880 1580
104 13“ 6112 1758 5800 1850
112 14“ 7082 2043 6710 2150
112 15“ 8127 2328 7690 2450
