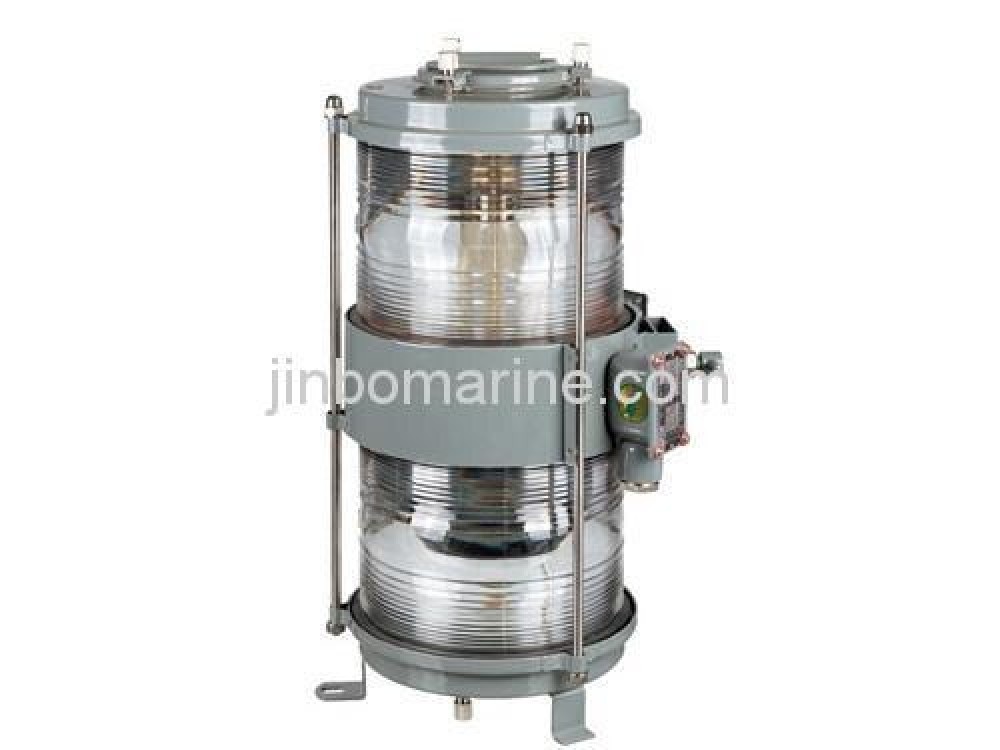

Double-Deck Navigation Signal Light CXH-10B

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Double-Deck Navigation Signal Light CXH-10B:

The Navigation Signal Light used to the ship with length 50M or above as lamp signal liaison when night navigation.

Products Advantage:

1. Easy to install and replace with bulb.

2. The shell is made of steel, finished by special mold-powder with the feature of corrosion-resisting and shock resistance.

3. PC Material, UV resistance and non-discolouring.

Standards:

1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.

2. Confirm to the International Standard IEC60598-1-2008.

3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.

Main Specification:


Voltage 24V 110V 220V
Power 2X30W 2X65W 2X65W
Lamp Holder B22d
Protection Class IP55
Cable Diameter Dia.14-16

Name Type Visibility Level Arc Color Weight
Starboard Light CXH1-10B 3n.m 112.5o Green 9KGS
Port Light CXH2-10B 3n.m 112.5o Red 9KGS
Masthead Light CXH3-10B 5n.m 225o White 9KGS
Stern Light CXH4-10B 3n.m 135o White/Yellow 9KGS
All-round- Light CXH6-10B 3n.m 360o Red/green/white 9KGS
