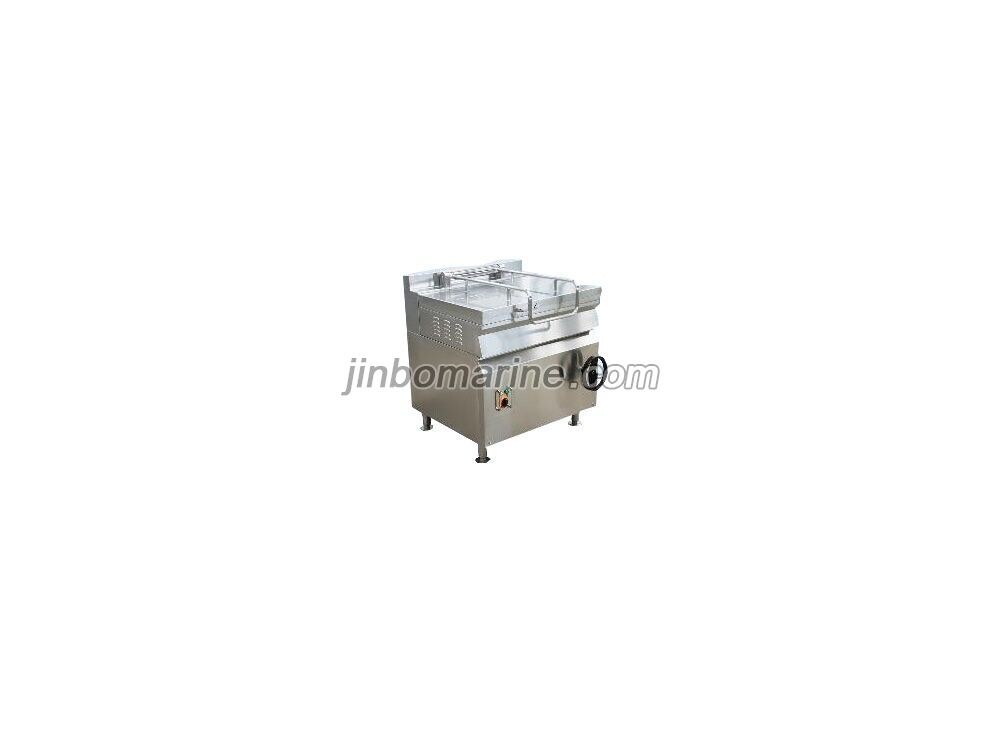

DQG-12 Marine Tilting Electric Frying Pan

Request a Quote Not what you need, please send your RFQs via Email.

Details

DQG-12 Marine Tilting Electric Frying Pan

1. All stainless steel structure
2. The pot bottom rounded corner design, easy to clean
3. Handwheel or electric drive tilting pan can be selected as required
4. The hand wheel is driven by a turbine rod to drive the tilting pan
5. Electric type adopts imported lifting system to drive the tilting pot
6. With pot body not in place protection
7. The temperature at the bottom of the pot is controlled by a thermostat
8. Equipped with stainless steel adjustable sole for easy installation on board

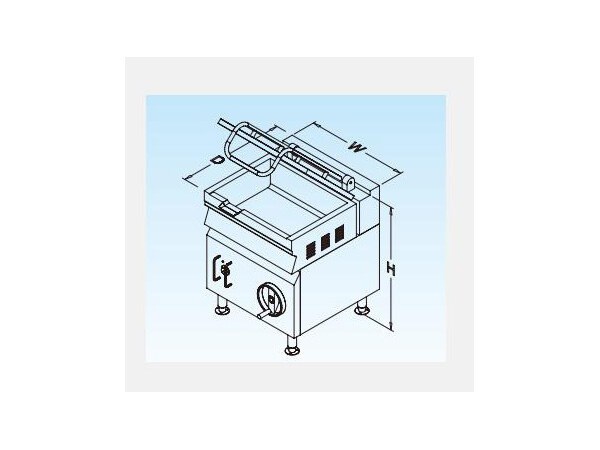

DQG-12 Marine Tilting Electric Frying Pan Drawing

DQG-12 Marine Tilting Electric Frying Pan Parameters

Model DQG-9 DQG-10 DQG-12 DQG-14 DQG-10D
(electric)
DQG-12(electric)
Volume(L) 40 60 80 100 60 80
Voltage 380/415V-3PH-50Hz 440/480v 3ph-60Hz
Power(kw) 9 10.8 12.6 14.8 10.8 12.6
Size(mm) 700X700X850 850X700X850 1000X850X850 850X700X850 850x700x50 1000x700x850
Weight(kg) 120 140 150 160 140 150
