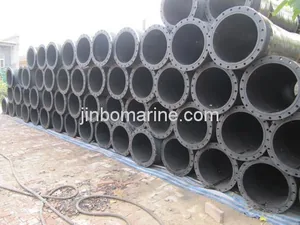

Dredge Discharge Hose
- Category:Dredging Rubber Hose
- Material:NR, SBR, BR
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Dredge Discharge Hose:
Steel Flange Discharge Hose are used with dredger for silt, gravel conceyance. Thickness of pipe wall is from 18mm to 70mm.
- Working Temperature is from -20Degree to 50Degree.
- Easy Install, Flexible to use, Safe, Abrasion-resistance and bending resistant.
- Safety Factor: 1:5
- Hose Ling: NR, SBR, BR
- Reinforcement Layer: Tire Cord with Wire Spiral
- Cover Rubber Layer: SBR and CR Blend.
Specification
| ID | OD | WP | BP | VP | Length | |||||
| mm | inch | mm | inch | Mpa | bar | Mpa | bar | Kpa | bar | m |
| 152 | 6" | 182 | 7-1/4" | 1.2 | 12 | 2.4 | 24 | 80 | 0.8 | 20 |
| 203 | 8" | 233 | 9-1/5" | 1.2 | 12 | 2.4 | 24 | 80 | 0.8 | 20 |
| 254 | 10" | 284 | 11-1/5" | 1 | 10 | 2 | 20 | 80 | 0.8 | 10 |
| 304 | 12" | 340 | 13-2/5" | 1 | 10 | 2 | 20 | 80 | 0.8 | 6-10 |
| 350 | 14" | 390 | 15-2/5" | 1 | 10 | 2 | 20 | 80 | 0.8 | 6-10 |
| 450 | 18" | 486 | 19-1/5" | 0.7 | 7 | 1.5 | 15 | 80 | 0.8 | 6-10 |
| 550 | 22" | 590 | 23-3/5" | 0.7 | 7 | 1.5 | 15 | 80 | 0.8 | 6-10 |
| 600 | 24" | 640 | 25-3/5" | 0.7 | 7 | 1.5 | 15 | 80 | 0.8 | 6-10 |
| 700 | 28" | 750 | 29-3/5" | 0.7 | 7 | 1.5 | 15 | 80 | 0.8 | 6-10 |
| 800 | 32" | 850 | 33-1/2" | 0.5 | 5 | 1 | 10 | 80 | 0.8 | 6-10 |
| 1000 | 40" | 1050 | 41-1/2" | 0.5 | 5 | 1 | 10 | 80 | 0.8 | 6 |
| 1200 | 48" | 1250 | 49-1/5" | 0.5 | 5 | 1 | 10 | 80 | 0.8 | 6 |
| 1300 | 52" | 1350 | 53-1/5" | 0.5 | 5 | 1 | 10 | 80 | 0.8 | 6 |
