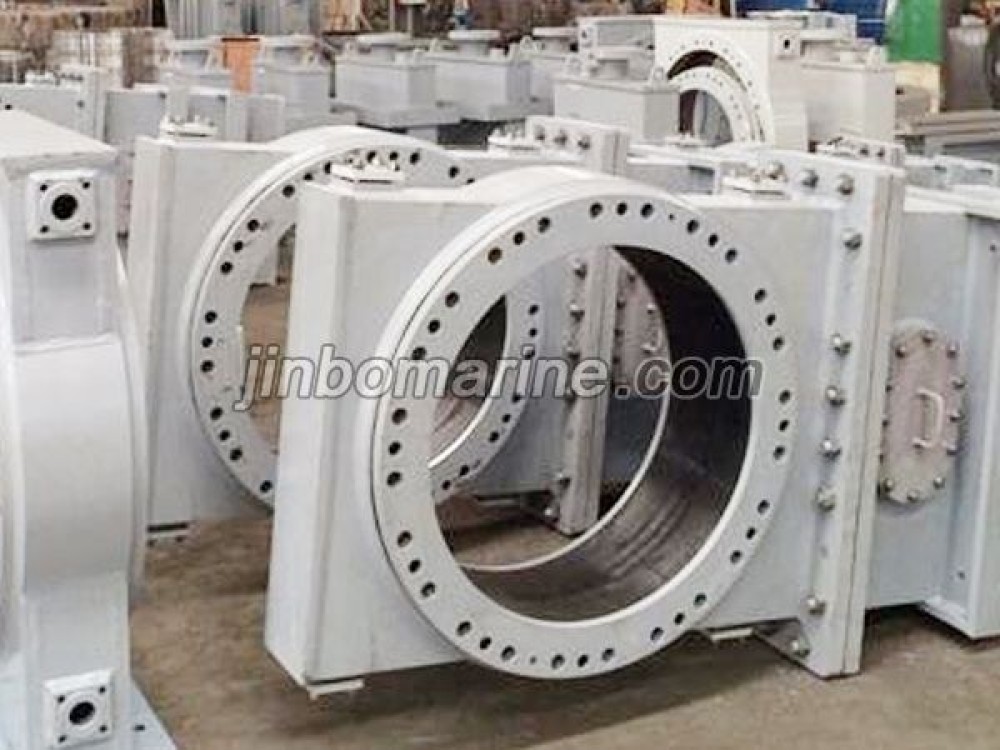

Dredge Hydraulic Gate Valve
- Category:Dredge Pipeline
- Packing Details:Wooden Box
- Delivery Time:20 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Dredge Hydraulic Gate Valve:
Pressure: upto 2.5MPA
Size: DN200 to DN1200
Hydraulic Cylinder and Rubber Sealing
Stainless Steel Wedge Gate and Heat Affected Valve Body
Technical Specification
DN(mm) | D1(mm) | A(mm) | B(mm) | h(mm) | H(mm) | L(mm) | Weight(kg) |
200 | 250 | 315 | 163 | 185 | 570 | 500 | 70 |
250 | 295 | 315 | 163 | 196 | 570 | 500 | 75 |
300 | 375 | 473 | 245 | 278 | 855 | 750 | 236 |
350 | 435 | 550 | 285 | 325 | 995 | 875 | 375 |
400 | 496 | 628 | 325 | 370 | 1135 | 998 | 555 |
450 | 558 | 706 | 365 | 416 | 1270 | 1122 | 624 |
500 | 614 | 776 | 402 | 458 | 1400 | 1234 | 830 |
550 | 675 | 854 | 442 | 504 | 1540 | 1358 | 1104 |
600 | 735 | 930 | 482 | 550 | 1680 | 1480 | 1430 |
650 | 794 | 1004 | 520 | 594 | 1820 | 1598 | 1800 |
700 | 856 | 1084 | 560 | 640 | 1960 | 1725 | 2260 |
750 | 916 | 1160 | 600 | 685 | 2100 | 1845 | 2768 |
800 | 976 | 1236 | 640 | 730 | 2240 | 1966 | 3296 |
