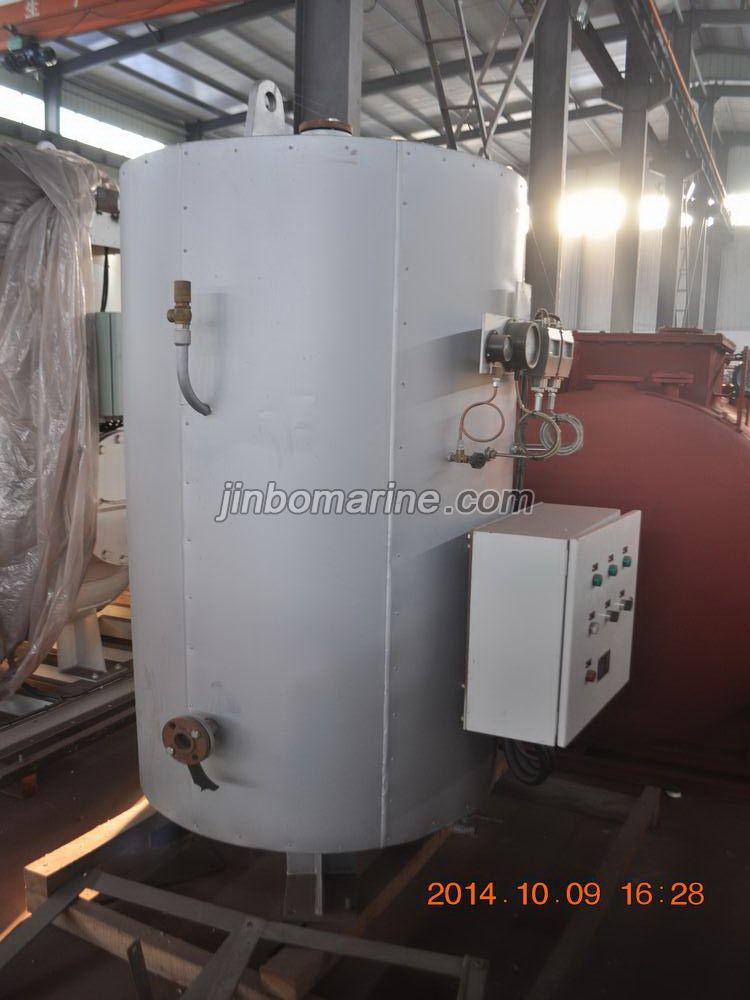

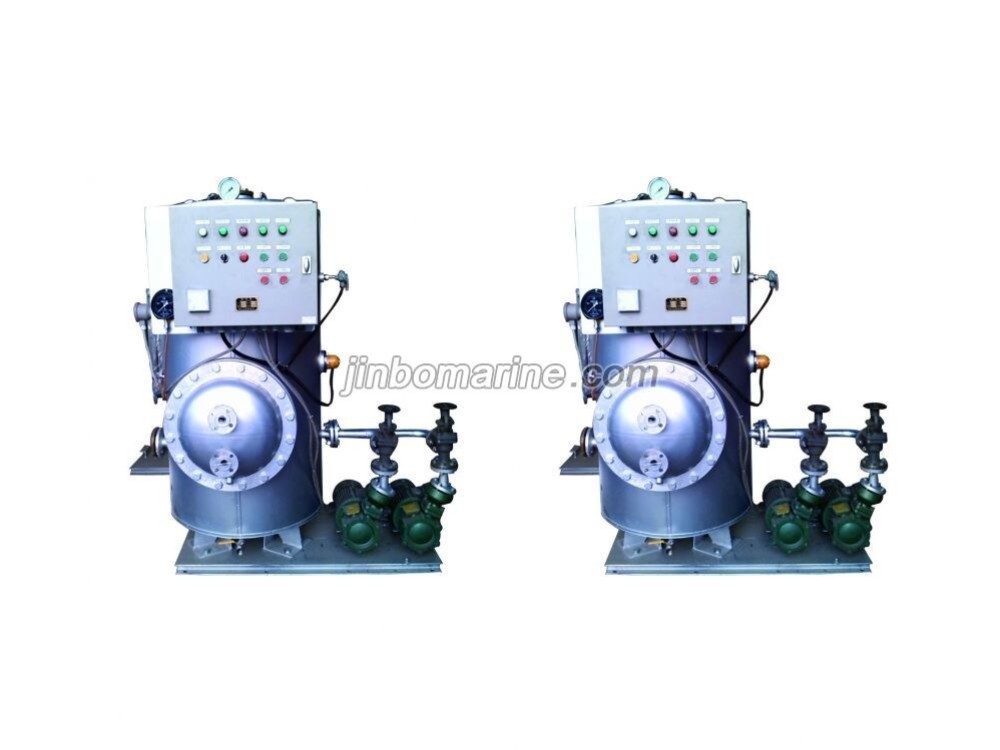

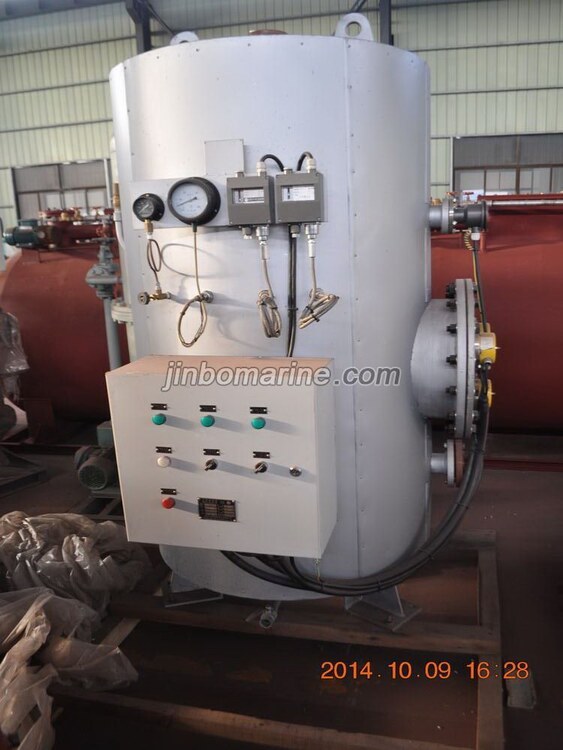

DRG-2.0 Marine Calorifier System

  • Category:Marine Calorifier
  • Certificate:CCS,GL,BV etc.
  • Packing Details:Standard Export Packaging
  • Delivery Time:15-20days
  • Supply Ability:10 sets/month
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Application:

This series hot water tank is suitable for heating fresh water on the ship or platform, heated fresh water for crew use.

Working Principle:

The hot water tank water inlet meets the pressure water tank, (approximately 15℃) fills the calorifier system's in fresh water heats up the cabinet, calorifier system heater fresh water heating to 65℃, for the entire ship.

The water used system backwater pipe joint hot water tank water pump water inlet, the water pump regularly the water pump regeneration water tank which cools gradually the water used system, carries on the heating.

Technical Specification:

1. Main parameter
Volume: 1.0m³
Design pressure: 0.7MPa
Working pressure: 0.5MPa
Electric heating power: 2*12+2*18kw
Power source: 3φ 480V 60Hz (optional).
2. Main body structural testing: 1.05MPa
Whole pressure testing: 0.875MPa without leakage.
3. The superficial stain removal, the ontology of galvanized processing.
4. With ANSI B 16.5 RF#150 flange.

Accessories List

Item No.

Model No.

Description

Qty.

1

DN20

ball valve

1

2

DN400

Manhole cover

1

3

δ8

Main body

1

4

WSS-401

Thermometer

1

5

Pressure gauge connection

1

6

YC-100T

Pressure gauge

1

7

Name plate

1

8

A21F-16P

Safety valve

1

9

Electrically controlled box

1

10

Temperature controller connection

1

11

UQK-01

Fluid position controller

1

12

RYF 480V/18Kw

Electric heater

2

13

RYF 480V/12Kw

Electric heater

2

14

B16040 GBT 591

Stop inverted valve

2

15

1.5CWX-2

Circulating pump

2
