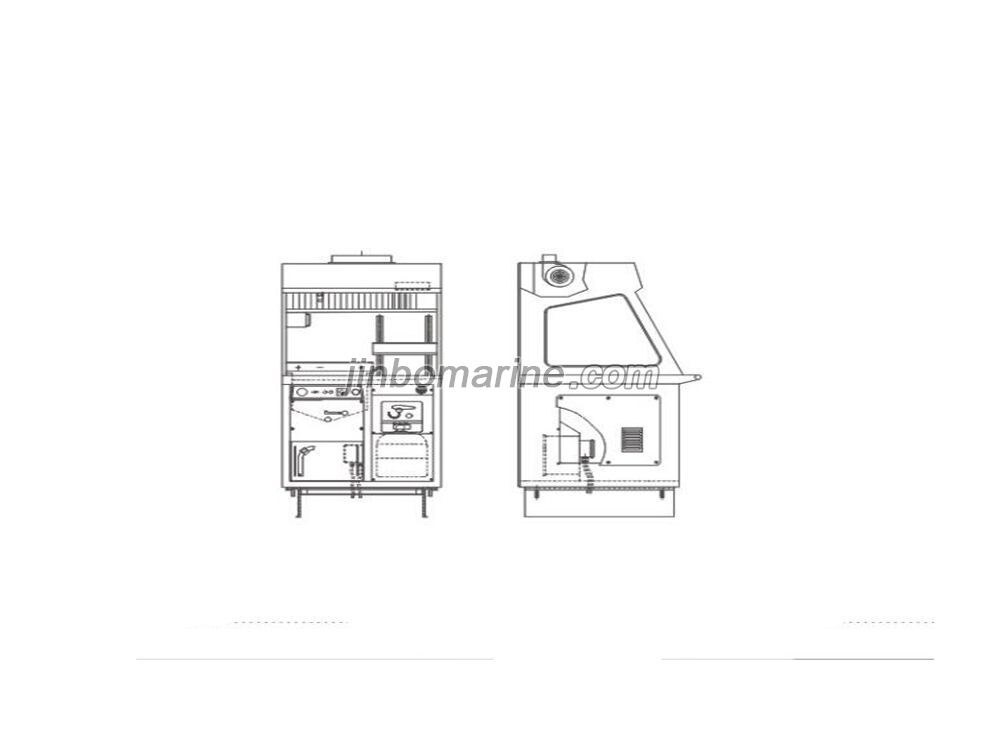

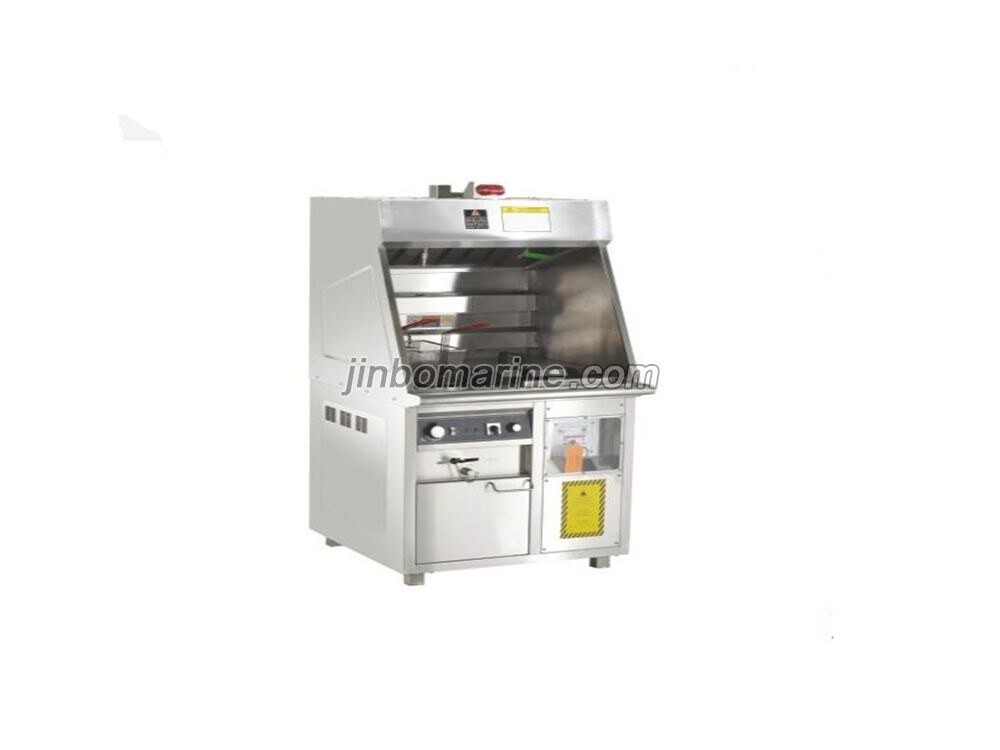

DRG-6M Marine Deep Frying Pan
- Category:Marine Kitchen Galley
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
DRG-6M Marine Deep Frying Pan
1.Complete stainless steel execution.
2.Set up automatic detection, fire-fighting, alarm and automatically cut off the power supply device.
3.Start the fire extinguishing system emergency manually.
4.Set control and contact controlling power output.
5.With thermostat set work, limit the warm fault alarm function.
6.With oil barrels, a pan oil discharge valve.
7.With handdrails.
8.Products comply with SOLAS specifications, through the CCS/ABS/GL/EC/ certification.
DRG-6M Marine Deep Frying Pan Specification
Model | Voltage | Capacity | Rating | Size(WxDxH)mm | Weight | ||||||
10DPFR/FEQ |
380-415V/3P/50Hz 440-480V/3P/60Hz |
10L | 6Kw | 450x915x1755 | 125kg | ||||||
20DPFR/FEQ |
380-415V/3P/50Hz 440-480V/3P/60Hz |
20L | 9Kw | 800x915x1755 | 160kg | ||||||
DRG-6M |
380-415V/3P/50Hz 440-480V/3P/60Hz |
20L | 6Kw | 900x700x1700 | 190kg | ||||||
DRG-9M |
380-415V/3P/50Hz 440-480V/3P/60Hz |
2x12L | 9Kw | 1150x700x1700 | 230kg |
