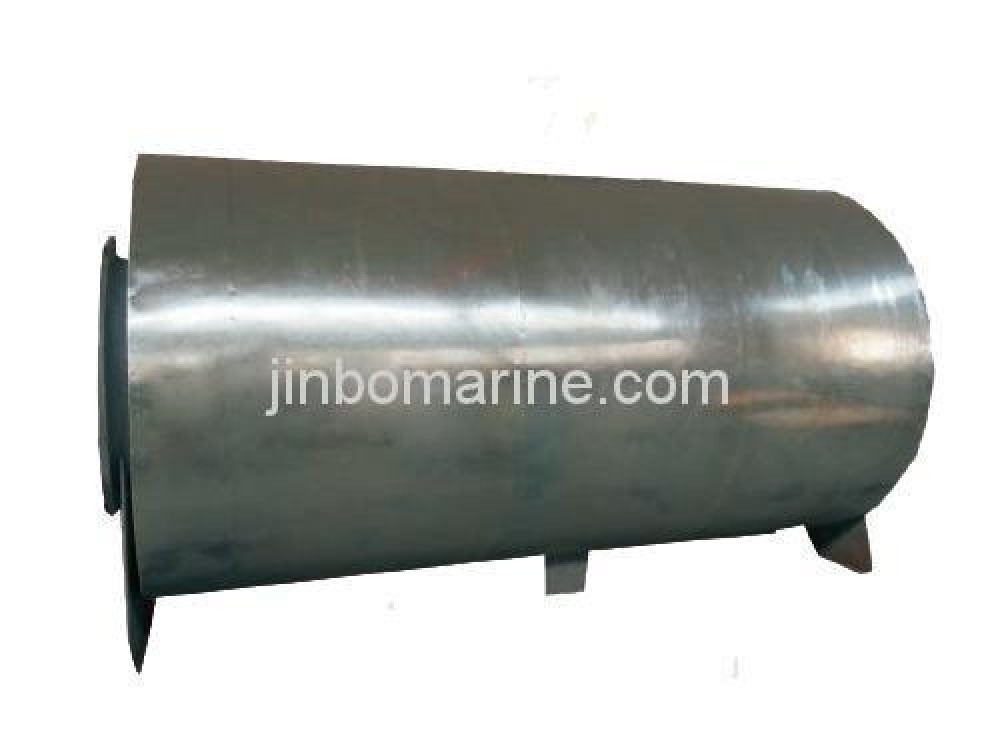

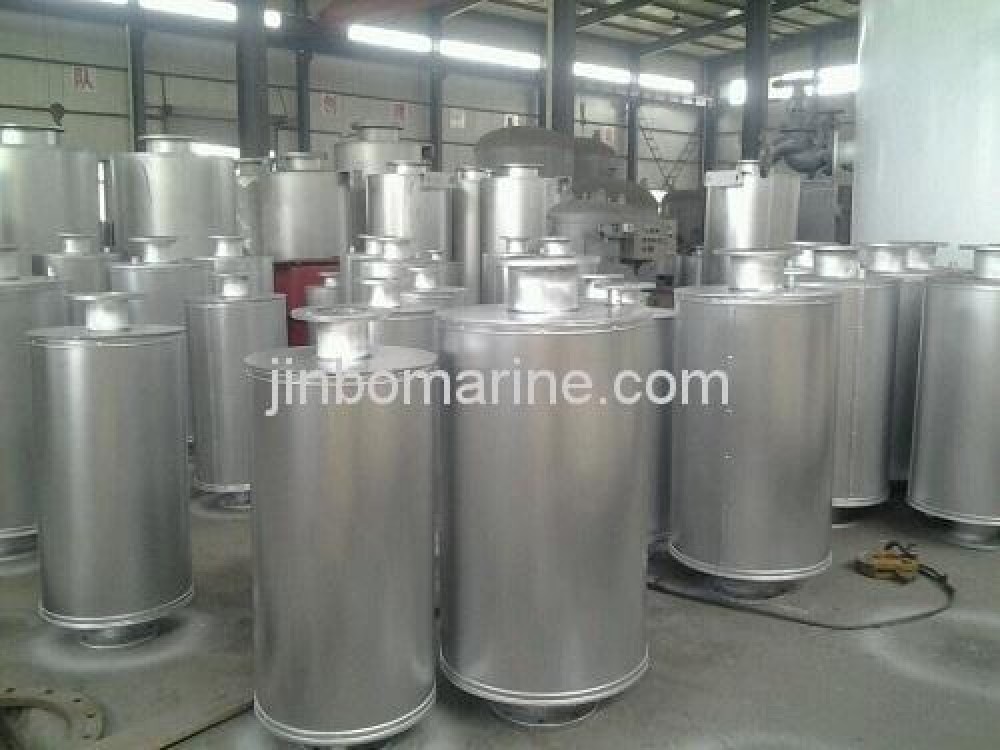

Dry Spark Trap Silencer
- Category:Marine Silencer
- Material:Carbon Steel
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Dry Spark Trap Silencer:
The Dry Spark Trap Silencer is used to arrest the spark and muffle in the gas exhaust pipe line of main engine and auxiliary engine and boiler for tanker, passenger ship, container ship,engineering ship, etc.
Main Size List(mm):
| Model | Outline Dimension | Connection Flange Size | Support Dimension | Weight | ||||||||
| D1 | B | C | D2 | D3 | D4 | A | F1 | F2 | F3 | d2 | kgs | |
| VTJZ-65 | 380 | 700 | — | 65 | 25 | 25 | — | — | — | — | — | 50 |
| VTJZ-80 | 400 | 800 | — | 80 | — | — | — | — | — | 85 | ||
| VTJZ-100 | 450 | 860 | — | 100 | — | — | — | — | — | 95 | ||
| VTJZ-125 | 500 | 960 | — | 125 | — | — | — | — | — | 124 | ||
| VTJZ-150 | 550 | 1060 | — | 150 | — | — | — | — | — | 135 | ||
| VTJZ-175 | 600 | 1160 | — | 175 | — | — | — | — | — | 145 | ||
| VTJZ-200 | 700 | 1410 | 400 | 200 | 40 | 40 | 1130 | 400 | 300 | 200 | 23 | 246 |
| VTJZ-250 | 800 | 1600 | 470 | 250 | 1270 | 450 | 360 | 250 | 23 | 328 | ||
| VTJZ-300 | 900 | 2000 | 520 | 300 | 50 | 50 | 1670 | 500 | 400 | 270 | 23 | 495 |
| VTJZ-350 | 1000 | 2200 | 570 | 350 | 1840 | 500 | 400 | 270 | 23 | 595 | ||
| VTJZ-400 | 1100 | 2500 | 620 | 400 | 2152 | 550 | 440 | 290 | 23 | 680 | ||
| VTJZ-450 | 1100 | 2700 | 620 | 450 | 2360 | 550 | 440 | 290 | 25 | 730 | ||
| VTJZ-500 | 1300 | 3000 | 670 | 500 | 65 | 65 | 2600 | 600 | 500 | 370 | 25 | 900 |
