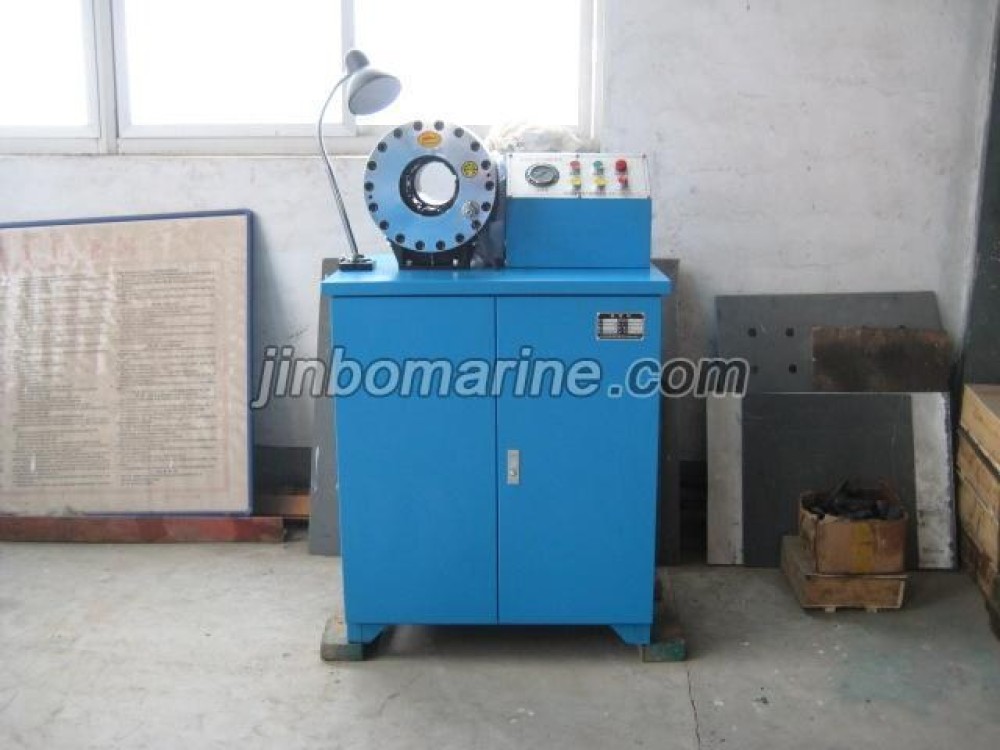

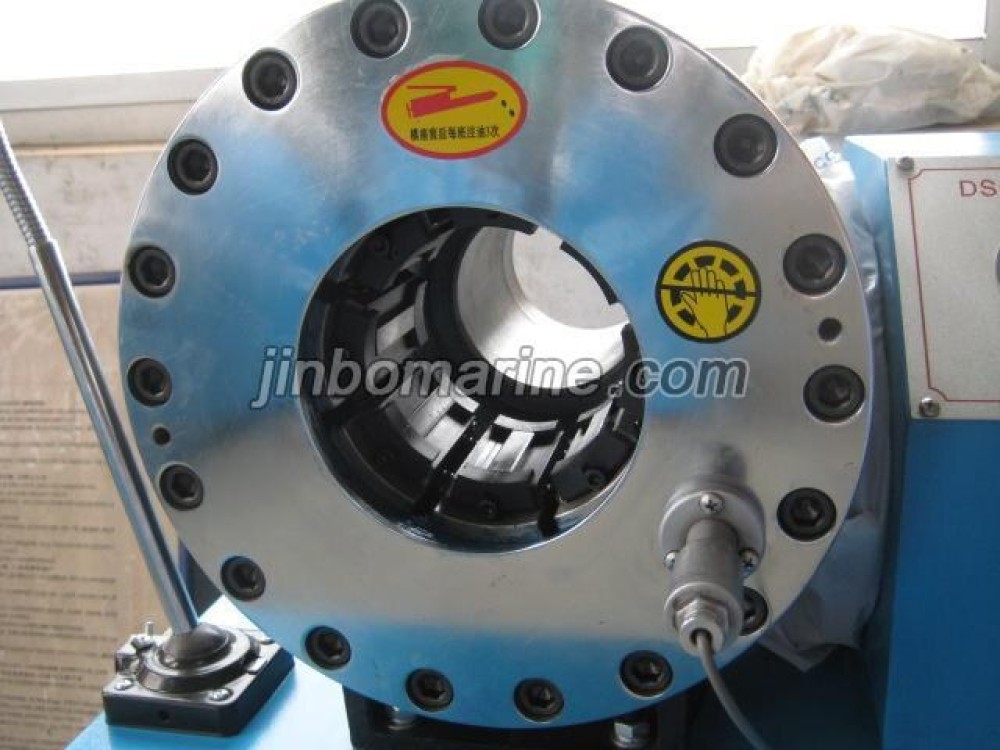

DSG250C Pipe Locking Machine

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China DSG250C Pipe Locking Machine:

DSG250C Pipe Locking Machine 6-51mm is applicable for the fastening and pressing processing of the high pressure

rubber hose, fiber pipe and plastic pipe assemblies in the industry,agriculture and hydraulic transmission of engineering machine, and the machine has the following characteristics: having small volume, light weight, many functions, and rapid opening of die, being easy to operate and convenient for maintenance and repair and so on.

MainTechnical Characteristics:

Inside Diameter offastening the rubber hose: φ6 - φ51mm

Precision of Scale:0.02 mm

Power: 4KW (Motor of OilPump)

Maximum Fastening and Pressing Force: 540 T

Rated Pressure of Pump: 30MPa

Oil Pump Output:14 L/min

Overall Dimension: 800 ×620 × 1300 (mm)

Weight:200 Kg

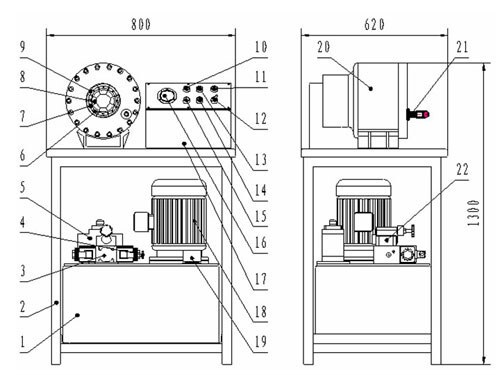

Structural Diagram:

1. OilBox 2. Frame 3. Solenoid Operated Directional Valve 4. Flow Dividing Valve 5. Hydraulic Control Valve 6. Die Stop Block 7. Spring of Die Holder 8. Die 9. Die Holder 10. Oil Pump Off 11. Power Supply Indicator 12. Manual/Automatic Knob 13. Oil Pump On 14. Opening Die 15. Closing Die 16. Pressure Gauge 17. Electrical EquipmentBox 18. Motor 19. Air Filter 20. Oil Cylinder 21. Scale 22. Overflow Valve.

Name:

Hose crimping machine,hose crimper,Pipe locking machine,Locking pipe machine,tube
locking machine, tube crimping machine,tube crimper,pipe crimping machine,pipe crimper.

Usage

Crimping hose


Popular
type:


DX68 Hydraulic high pressure hose crimping machine 6-51mm

DSG51AMulti-function pipe crimping machine 6-51mm

DSG51B Multi-function pipe crimper 6-51mm

DSG75 High pressure hose crimper6-75mm

DSG150 High pressure hose crimping machine 6-150mm

DSG102S hose crimping machine 6-102mm

DSG250A Locking Pipe Machine 6-51mm

DSG250B tube crimping Machine 6-51mm

DSG250C Pipe Locking Machine 6-51mm

JK400 tube crimper 6-64mm

JKS200 Manual type hose crimping machine 6-32mm

SK100 Numeric control locking pipe machine 4-89mm
