DTG-150Q Marine Titling boiling Pan
- Category:Marine Kitchen Galley
- Material:SS
- Delivery Time:15 days
- Packing Details:Wooden box
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

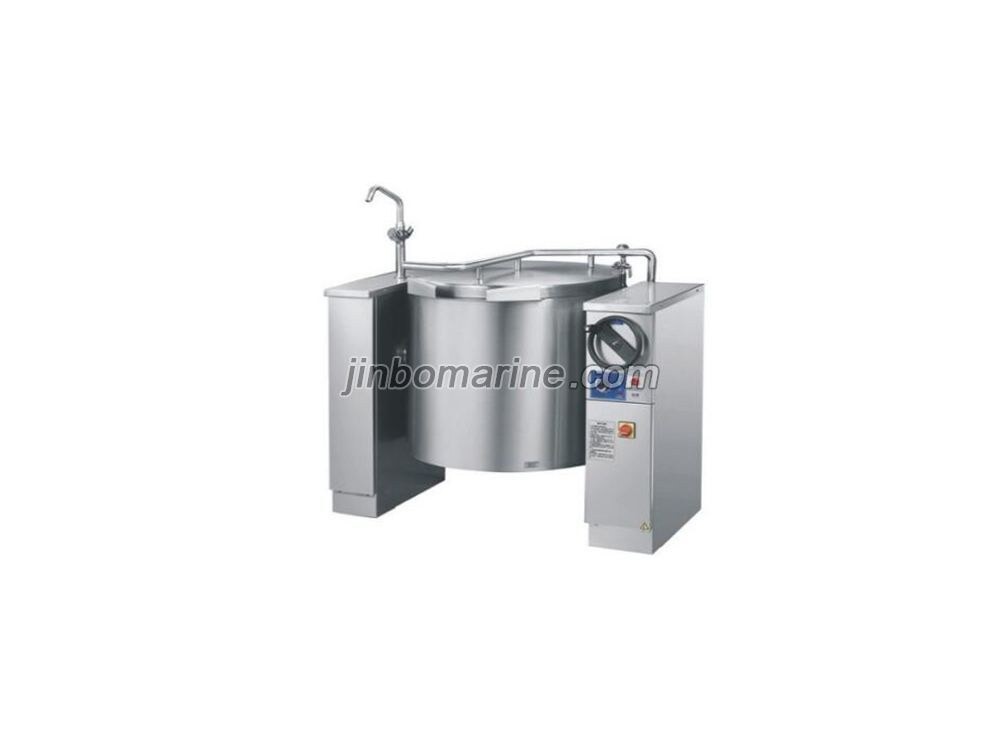

DTG-150Q Marine Titling boiling Pan
1.Complete stainless steel execution.
2.Rotary manual tilt device.
3.The pan body is designed with three-tier insulation structure, the heating is indirect, efficient and even.
4.Automatic water lacking breaker is installed.
5.External pressure gauge and pressure releasing valve are applied for overpressure protection.
6.Easy to install with the adjustable fixed feet.
DTG-150Q Marine Titling boiling Pan Specification
Model | Voltage | Capacity | Rating | Size(WxDxH)mm | Weight | ||||||
DTG-40Q |
380-415V/3P/50Hz 440-480V/3P/60Hz |
40L | 9Kw | 790x620x900 | 100kg | ||||||
DTG-60Q |
380-415V/3P/50Hz 440-480V/3P/60Hz |
60L | 9Kw | 840x680x950 | 120kg | ||||||
DTG-150Q |
380-415V/3P/50Hz 440-480V/3P/60Hz |
150L | 18Kw | 1050x880x1000 | 230kg |
