DTG-60Q Marine Titling boiling Pan

Request a Quote Not what you need, please send your RFQs via Email.

Details

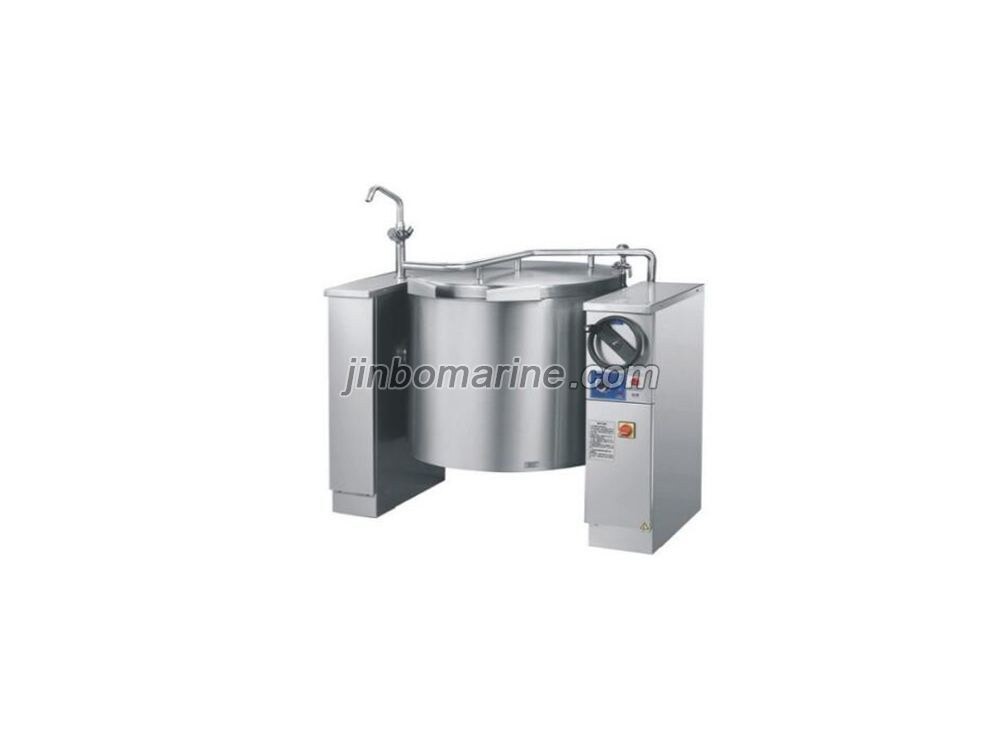

DTG-60Q Marine Titling boiling Pan

1.Complete stainless steel execution.
2.Rotary manual tilt device.
3.The pan body is designed with three-tier insulation structure, the heating is indirect, efficient and even.
4.Automatic water lacking breaker is installed.
5.External pressure gauge and pressure releasing valve are applied for overpressure protection.
6.Easy to install with the adjustable fixed feet.

DTG-60Q Marine Titling boiling Pan Specification

Model Voltage Capacity Rating Size(WxDxH)mm Weight
DTG-40Q 380-415V/3P/50Hz
440-480V/3P/60Hz
40L 9Kw 790x620x900 100kg
DTG-60Q 380-415V/3P/50Hz
440-480V/3P/60Hz
60L 9Kw 840x680x950 120kg
DTG-150Q 380-415V/3P/50Hz
440-480V/3P/60Hz
150L 18Kw 1050x880x1000 230kg
