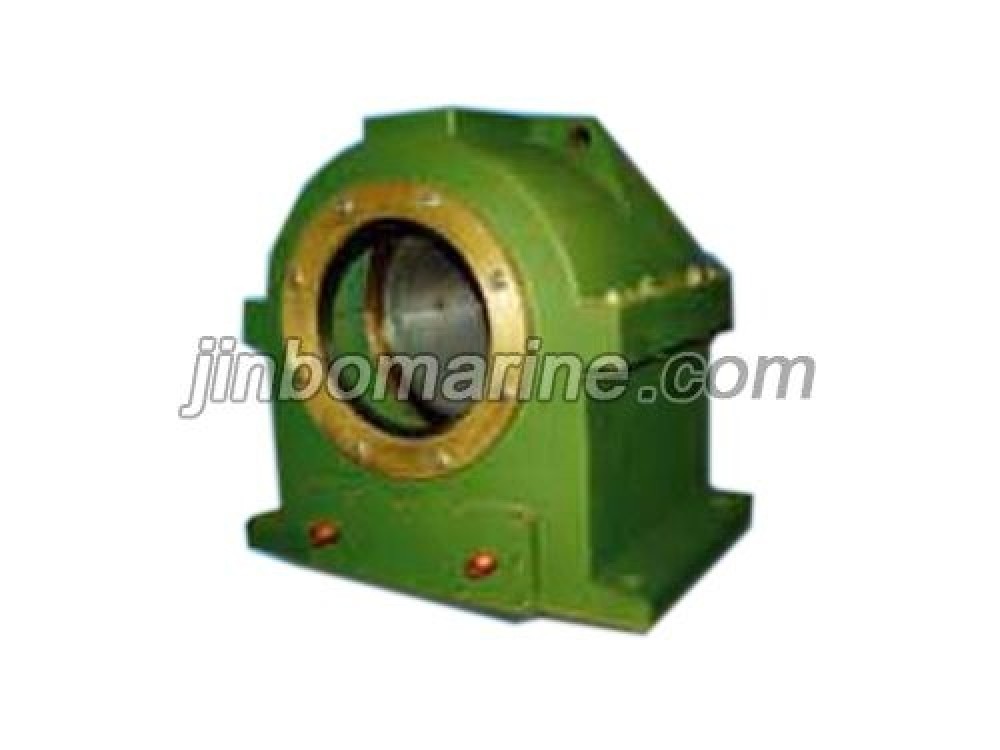

DTZ Large Pressure Intermediate Bearing
- Category:Stern Tube Bearing
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Packing Details:Wooden Box
- Delivery Time:15 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Technical Specification
This kind of large pressure intermediate bearing is suitable for vessels whose shafting pressure is (0.6MPa) larger than normative pressure and that need self-aligning.

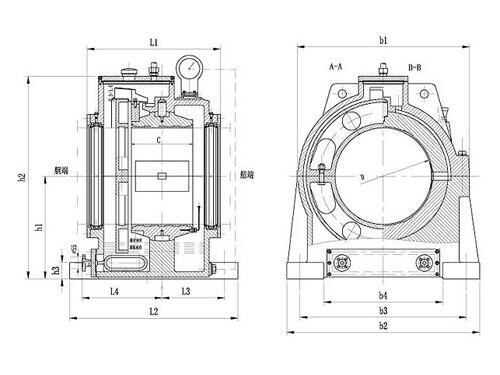

| D | Joint Bolts | b1 | b2 | b3 | b4 | c | h1 | h2 | h3 | L1 | L2 | L3 | L4 |
| 120~160 | 4×M20 | 320 | 310 | 270 | 160 | 86 | 185 | 360 | 32 | 306 | 320 | 155 | 115 |
| 161~200 | 4×M20 | 380 | 370 | 320 | 190 | 105 | 220 | 420 | 32 | 330 | 350 | 170 | 130 |
| 201~240 | 4×M24 | 450 | 440 | 380 | 230 | 126 | 270 | 500 | 35 | 354 | 390 | 185 | 145 |
| 241~280 | 4×M30 | 514 | 506 | 430 | 260 | 150 | 300 | 560 | 38 | 46 | 450 | 205 | 175 |
| 281~330 | 4×M30 | 604 | 596 | 520 | 320 | 10 | 370 | 645 | 43 | 436 | 480 | 220 | 190 |
| 331~390 | 4×M36 | 684 | 664 | 580 | 360 | 200 | 380 | 730 | 48 | 480 | 540 | 245 | 215 |
| 391~450 | 4×M36 | 770 | 760 | 670 | 440 | 230 | 425 | 820 | 93 | 535 | 585 | 270 | 235 |
| 451~510 | 4×M42 | 860 | 860 | 760 | 480 | 260 | 480 | 920 | 106 | 620 | 700 | 320 | 280 |
| 511~570 | 4×M42 | 960 | 910 | 810 | 510 | 290 | 530 | 1020 | 120 | 670 | 740 | 340 | 300 |
| 571~650 | 4×M48 | 1080 | 1030 | 910 | 570 | 330 | 610 | 1150 | 147 | 770 | 850 | 385 | 345 |
| 651~740 | 4×M48 | 1190 | 1170 | 1020 | 660 | 380 | 720 | 1330 | 177 | 840 | 930 | 425 | 375 |
