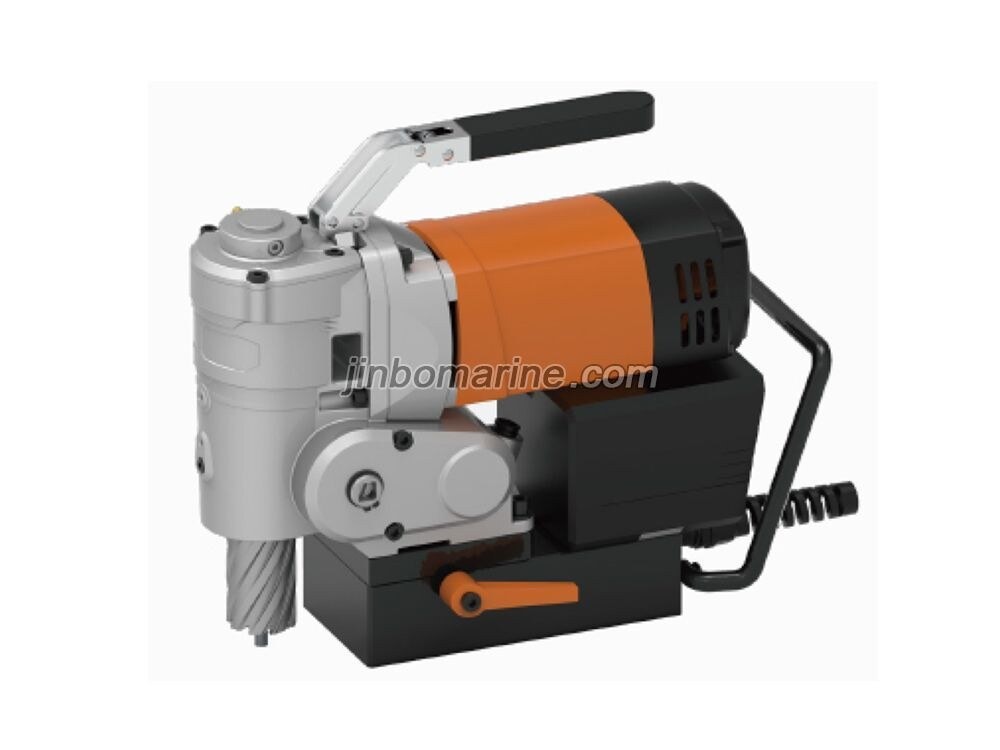

DX-H35 Horizontal Magnetic Drilling Machine

Request a Quote Not what you need, please send your RFQs via Email.

Details

China DX-H35 Horizontal Magnetic Drilling Machine:

Horizontal structure, to meet the narrow space operation.

Small size and flexible operation.

High power and drilling efficiency.

Rated Input Power:1100w

Magnetic Suction: 9000n

Stroke: 63mm

Main Shaft Adjustable Height:

Spindle Interface Type: 19.05mm

Magnetic Base Size: 167x84x44mm

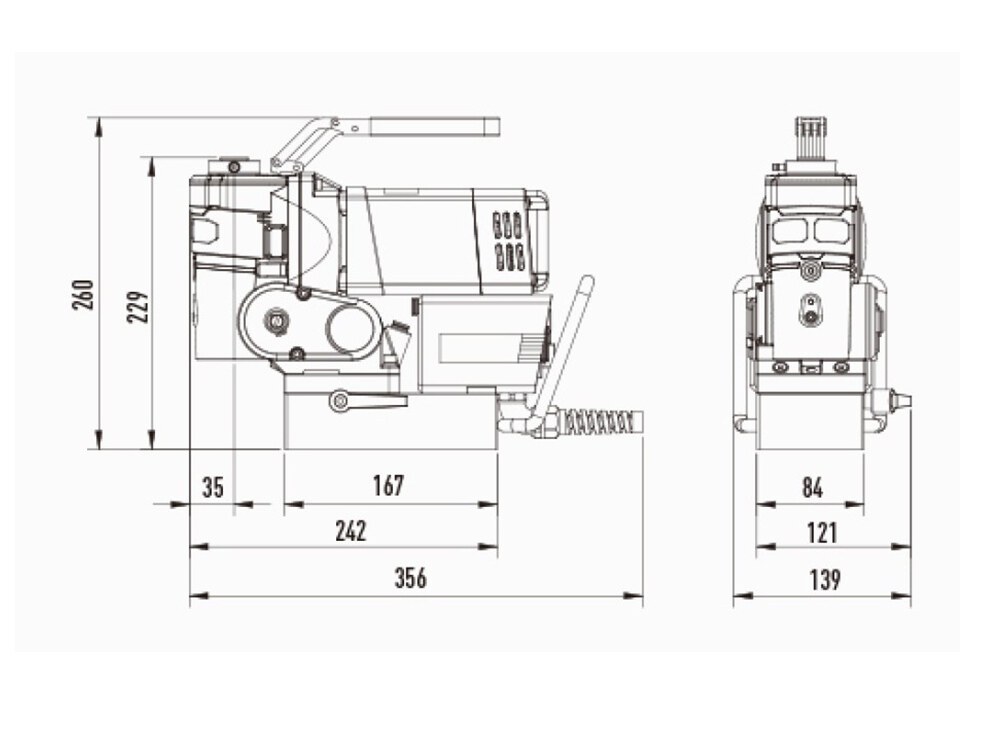

Machine Size: 356x139x260mm

The Miniumum Processing Thickhess: 10mm

The Cameter Range Of Annular Cutter: ≤35mm

The Drilling Depth Range Of Annular Cutter:≤50mm

The Diameter Range Of Twst Drill: 13mm

Weght: 11.5kg

Rated Speed: 450rpm
