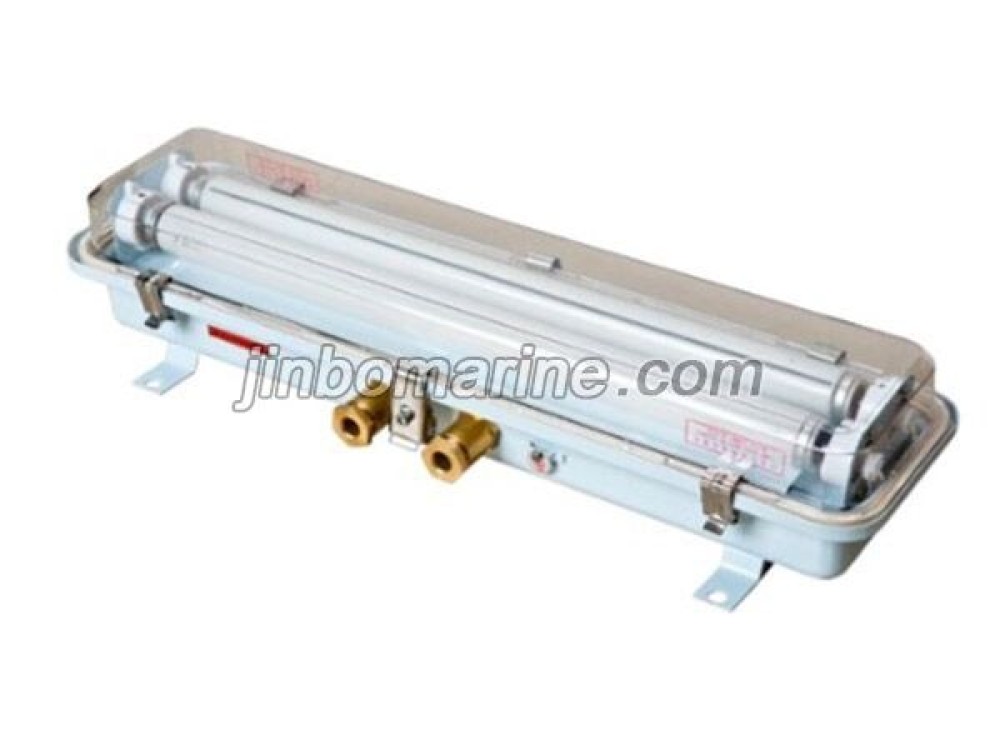

edyF201 Improved Safety Type Ex-proof Fluorescent Light

Request a Quote Not what you need, please send your RFQs via Email.

Details

China edyF201 Improved Safety Type Ex-proof Fluorescent Light:

Application

Applied to illumination of ship oil exploit platform, chemical product and explosive gas plaze zone 1 and zone 2.

Product Feature

1. The body is made of cast brass, lampshade is transparent toughened glass, with stainless steel metal guard, high water-proof and anti-corrosion.

2. Production class is IP56.

Standard

1. Chapter 3, Part 4 of Classification Society Rules for Classification of Sea-going Steel Ships 2015 and its Amendments;

2.GB7000.1-2015,Luminaires –Part1:General requirements and tests.

3.Confirm to the GB3836.1-2010<explosion environment first parts:general requirements for equipment> and GB3836.2-2010<explosive environment-parts second:equipment protected by flameproof enclosre D>

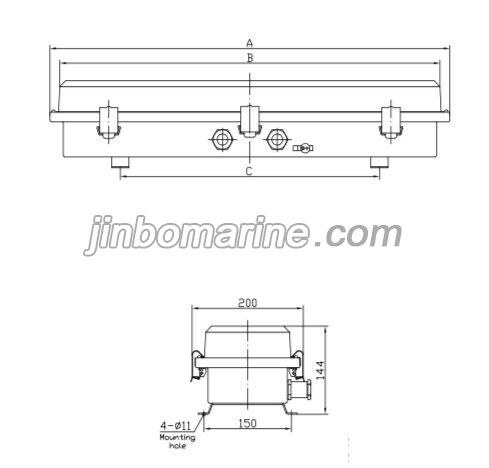

Specification


Type Voltage Power Size Ex-proof Symbol Weight
edyF201 110/220V 50/60Hz 1x20W 852x650x450 Exd II CT5 Gb 6.5kg
edyF202 110/220V 50/60Hz 2x20W 852x650x450 Exd II CT5 Gb 6.8kg
edyF401 110/220V 50/60Hz 1x40W 1455x240x1100 Exd II CT5 Gb 8.5kg
edyF402 110/220V 50/60Hz 2x40W 1455x240x1101 Exd II CT5 Gb 8.8kg
