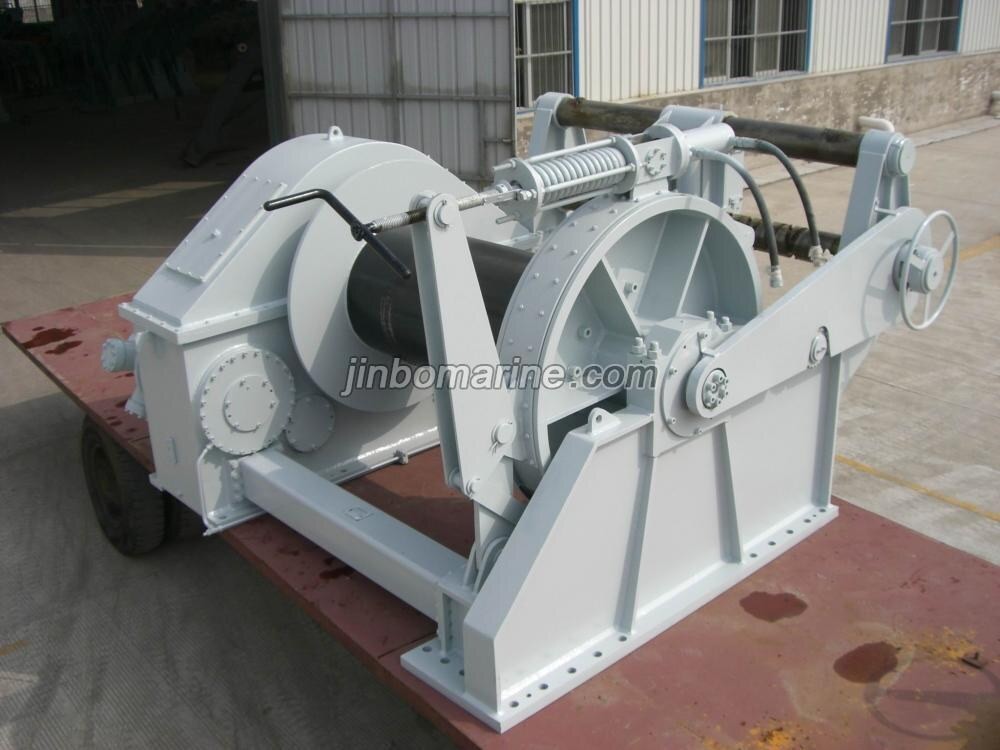

Electric Anchor Windlass

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Electric Anchor Windlass:

Electric Anchor Windlass

General description

The combined and capstan are for heaving,launching and mooring,which are in accordance with ISO4568-1986<>.They are driven by hand, electric, hydraulic and diesel engine. The structure types are divided into:systematic double-chain anchor winch(A type);single-chain anchor winch(B type) anchor capstan(E type).

Type illustration

the first letter: D-electric Y-hydraulic S-manual C-diesel engine

the letter M:anchor winch

the third letter: Type A,B,E

Main technical parameter

Type anchor chain diam working load(KN) over loading(KN) loading support(KN) nominal speed mooring line load
(mm) AM2 AM3 AM2 AM3 AM2 AM3 m/min Kn
DMA-17.5 17.5 13 14.6 19.5 21.9 80 115 9 8
DMA-19 19 15.3 17.2 23 25.8 95 135 9 10
DMA-20 20 17.9 20 26.9 30 110 157 9 10
DMA-22 22 20.6 23 30.9 34.5 126 180 9 15
DMA-24 24 24.5 27.4 36.8 41.1 149 214 9 20
DMA-26 26 28.7 32.1 43.1 48.2 175 250 9 20
DMA-28 28 33.3 37.2 50 55.8 202 289 9 20
DMA-30 30 38.3 42.8 57.5 64.2 231 330 9 30
DMA-32 32 43.5 48.6 65.3 72.9 261 374 9 30
DMA-34 34 49.1 54.9 73.3 82.4 294 421 9 30
DMA-36 36 55.1 61.6 82.7 92.4 329 470 9 30
DMA-38 38 61.4 68.9 92.1 103.4 365 522 9 40
DMA-40 40 68 76 102 114 402 576 9 40
DMA-42 42 75 83.8 112.5 125.7 442 632 9 50
DMA-44 44 82.3 92 123.5 138 483 691 9 50
DMA-46 46 89.9 100.5 134.9 150.8 526 753 9 50
DMA-48 48 97.9 109.4 146.9 164.1 570 816 9 50
DMA-50 50 106.3 118.8 159.5 178.2 617 882 9 50
