Electric Combined Windlass

  • Category:Marine Windlass
  • Material:Cast steel
  • Standards:standard
  • Certificate:CCS，Rina，ABS, BV, GL,
  • Packing Details:Nude Packing
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Electric Combined Windlass:

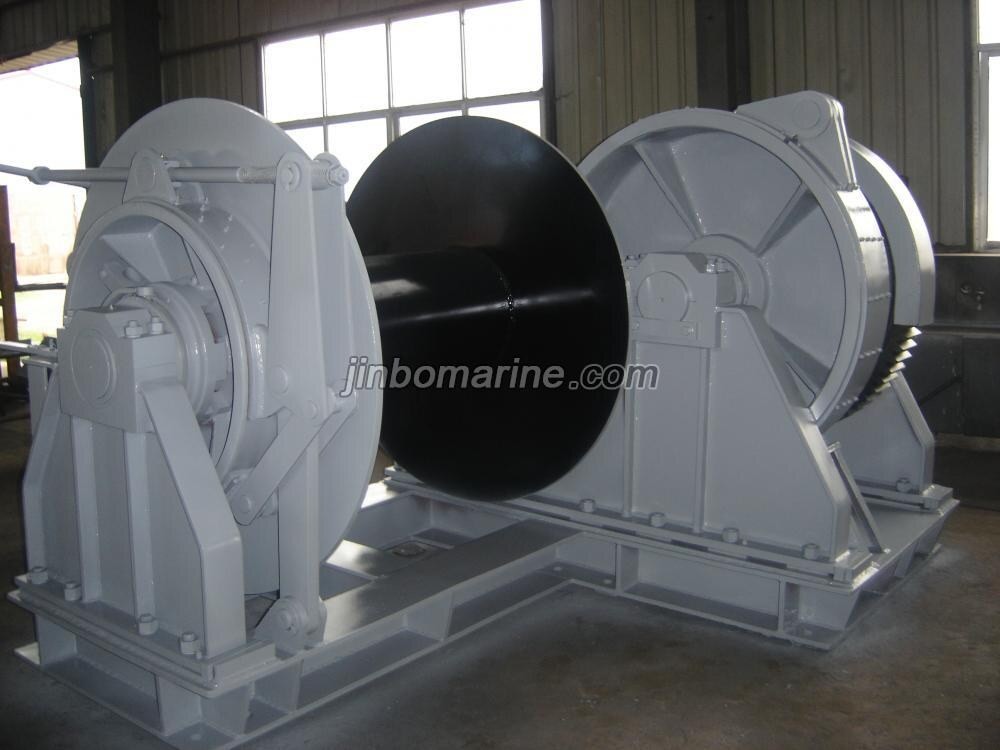

Electric Combined Windlass

General description

The combined and capstan are for heaving, launching and mooring, which are in accordance with ISO4568-1986<>. They are driven by hand, electric, hydraulic and diesel engine. The structure types are divided into: systematic double-chain anchor winch (A type);single-chain anchor winch(B type) anchor capstan(E type).

Type illustration

The first letter: D-electric Y-hydraulic S-manual C-diesel engine

The letter M: anchor winch

The third letter: Type A,B,E

Main technical parameter

Type anchor chain diam working load over loading loading support nominal speed Drum load Nominal speed Cable capacity Mooring line load
(mm) AM2 AM3 AM2 AM3 AM2 AM3 m/min Kn m/min m Kn
DMA-17.5 17.5 13 14.6 19.5 21.9 80 115 9 10 10 Φ11x100 8
DMA-19 19 15.3 17.2 23 25.8 95 135 9 15 10 Φ13x100 10
DMA-20 20 17.9 20 26.9 30 110 157 9 20 10 Φ13x100 10
DMA-22 22 20.6 23 30.9 34.5 126 180 9 20 15 Φ15x100 15
DMA-24 24 24.5 27.4 36.8 41.1 149 214 9 20 15 Φ15x100 20
DMA-26 26 28.7 32.1 43.1 48.2 175 250 9 20 10 Φ22x100 20
DMA-28 28 33.3 37.2 50 55.8 202 289 9 20 10 Φ22x120 20
DMA-30 30 38.3 42.8 57.5 64.2 231 330 9 30 10 Φ22x120 30
DMA-32 32 43.5 48.6 65.3 72.9 261 374 9 30 9 Φ20x120 30
DMA-34 34 49.1 54.9 73.3 82.4 294 421 9 40 9 Φ20x120 30
DMA-36 36 55.1 61.6 82.7 92.4 329 470 9 30 12 Φ20x120 30
DMA-38 38 61.4 68.9 92.1 103.4 365 522 9 40 15 Φ22x150 40
DMA-40 40 68 76 102 114 402 576 9 40 9 Φ22x150 40
DMA-42 42 75 83.8 112.5 125.7 442 632 9 40 15 Φ22x150 50
DMA-44 44 82.3 92 123.5 138 483 691 9 50 15 Φ26x200 50
DMA-46 46 89.9 100.5 134.9 150.8 526 753 9 50 18 Φ26x200 50
DMA-48 48 97.9 109.4 146.9 164.1 570 816 9 60 10 Φ26x200 50
DMA-50 50 106.3 118.8 159.5 178.2 617 882 9 80 15 Φ26x200 50
