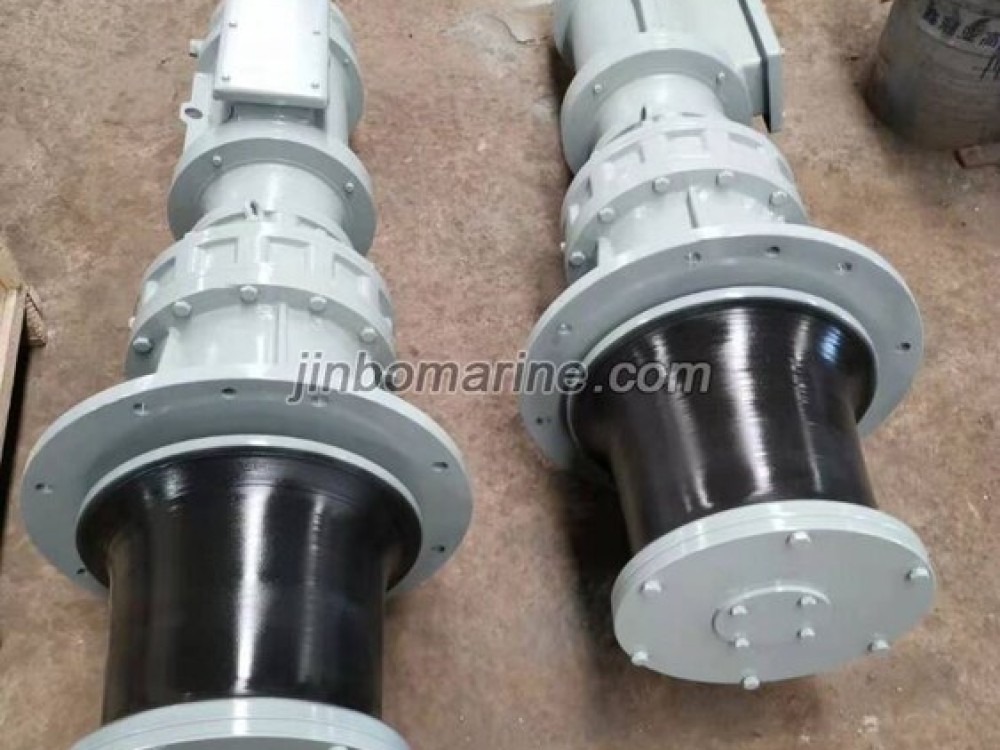

Electric Mooring Capstan
- Category:Marine Capstan
- Material:Cast steel
- Standards:standard
- Certificate:ABS,LR, BV, GL, CCS, RINA, IRS
- Packing Details:Nude Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Electric Mooring Capstan:
We can design the marine electric, hydraulic anchor capstan with specification of Ø12.5- Ø114, mooring capstan of 5~250kN, All products comply with international shipbuilding requirements and they have been approved and awarded certificates by different shipping classification societies, such as CCS, ABS, BV, GL, DNV, LR, KR, NK, RINA.
Electric (Hydraulic) Mooring Capstan
| Warping Load (kN) | Warping Speed (m/min) | Wire Dia (mm) | Motor Power (kW) | |
| Electric | Hydraulic | |||
| 5 | ≥18 | (|)11 | 3/1.2 | 5.5 |
| 10 | ≥18 | Φ11 | 4.3/1.7 | 7.5 |
| 15 | ≥18 | Φ13 | 8.5/3.5 | 11 |
| 20 | ≥18 | Φ15 | 11/11/7.5 | 15 |
| 30 | ≥18 | Φ17.5 | 16/16/11 | 18.5 |
| 50 | ≥18 | Φ20.5 | 16/16/11 | 30 |
| 70 | ≥15 | Φ26 | 22/22/11 | 45 |
| 100 | ≥15 | Φ28 | 45/45/30 | 55 |
| 120 | ≥15 | Φ32.5 | 60/60/45 | 75 |
| 150 | ≥15 | Φ36.5 | 60/60/45 | 90 |
| 200 | ≥15 | Φ40 | 75/75/36 | 110 |
| 250 | ≥12 | Φ46 | 75/75/36 | 110 |
