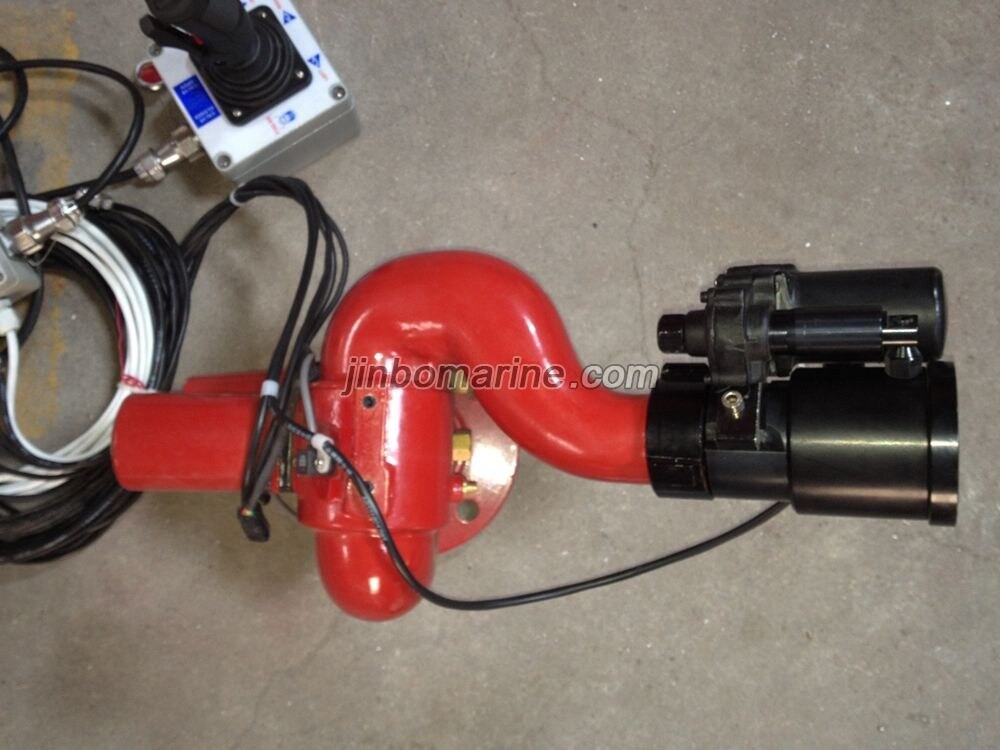

Electrical Fire Monitor 20-40L/S
- Category:Electric Operated Fire Monitor
- Delivery Time:10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Electrical Fire Monitor 20-40L/S:
Type : JBPSKD20-40
Flow Range: 20-30-40L/S (320GPM-630GPM), Adjustable
Working Pressure: 6 bar~ 8 bar
Max Reach @ Max Flow: 60M (148-180ft)
Max. Range of motion: +/-90°Vert , 350°Rot
Max fog angle :120°
Turning speed:18 degrees/sec
Material (body):304L Stainless Steel, 316L Stainless Steel is also available
Material (Gear):hardcoated anodizing aluminum
Material (nozzle):Aluminum
power supply:12/24VDC or 100-230VAC
Power Consumption normal/Max:50W/150W
Weight incl. nozzle:appox 20kg
Cable Length Monitor- CPU:5m
Cable Length Joystick-CPU:5m standard/ other length available
Pump requirement for minimum performance:40L/S@ 6 bar
Pipe dimensions for installation: 2-2.5 Inch
Monitor Inlet:2.5” male BSP or DN65 flange
Monitor Outlet:2.5 inch (50mm)
Water way size: 2-1/2 inch
Flow Range: 20-30-40L/S (320GPM-630GPM), Adjustable
Working Pressure: 6 bar~ 8 bar
Max Reach @ Max Flow: 60M (148-180ft)
Max. Range of motion: +/-90°Vert , 350°Rot
Max fog angle :120°
Turning speed:18 degrees/sec
Material (body):304L Stainless Steel, 316L Stainless Steel is also available
Material (Gear):hardcoated anodizing aluminum
Material (nozzle):Aluminum
power supply:12/24VDC or 100-230VAC
Power Consumption normal/Max:50W/150W
Weight incl. nozzle:appox 20kg
Cable Length Monitor- CPU:5m
Cable Length Joystick-CPU:5m standard/ other length available
Pump requirement for minimum performance:40L/S@ 6 bar
Pipe dimensions for installation: 2-2.5 Inch
Monitor Inlet:2.5” male BSP or DN65 flange
Monitor Outlet:2.5 inch (50mm)
Water way size: 2-1/2 inch

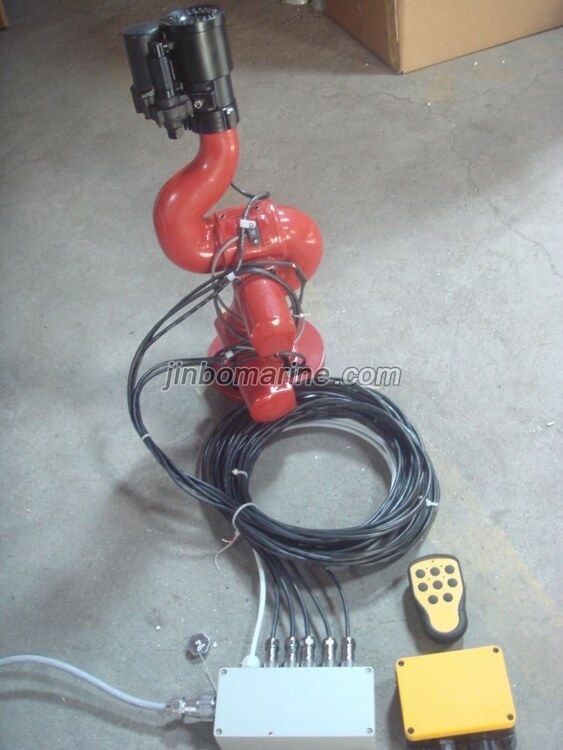

PACKAGE: SS MONITOR, NOZZLE, CONTROL BOX, JOYSTICK, CABLES, WIRELESS CONTROL (OPTIONAL)
