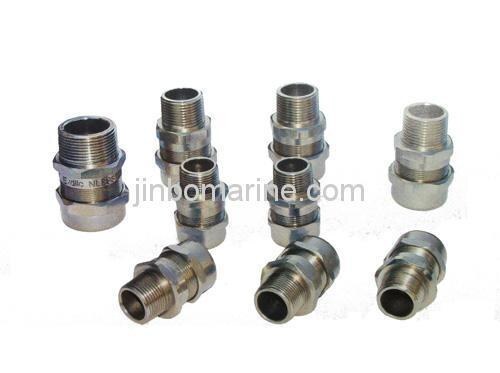

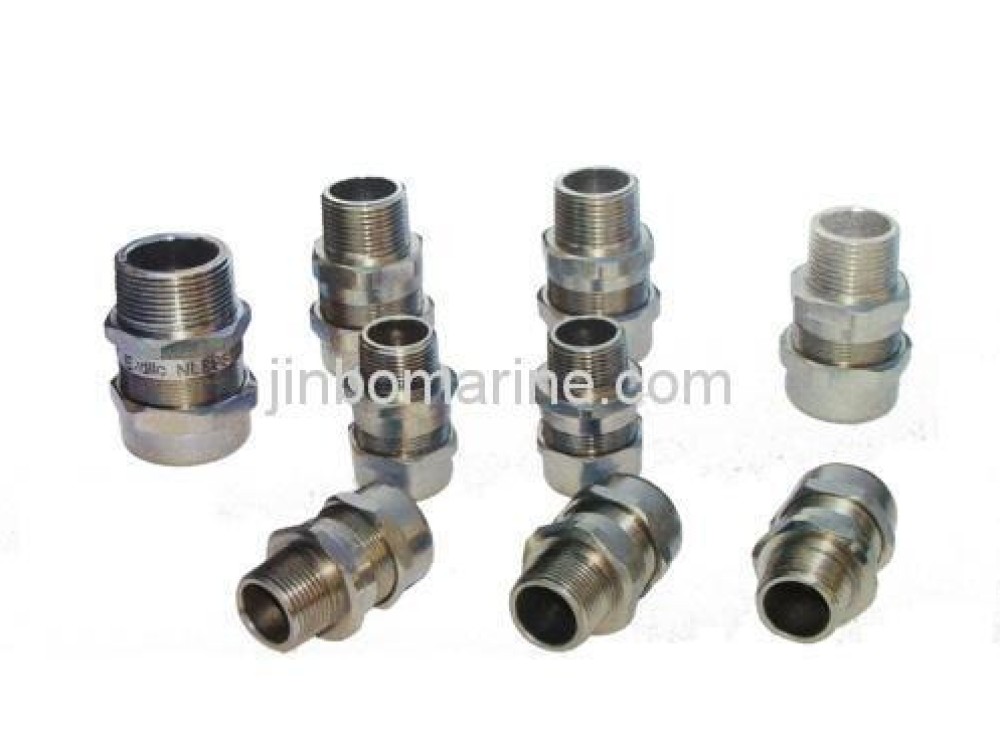

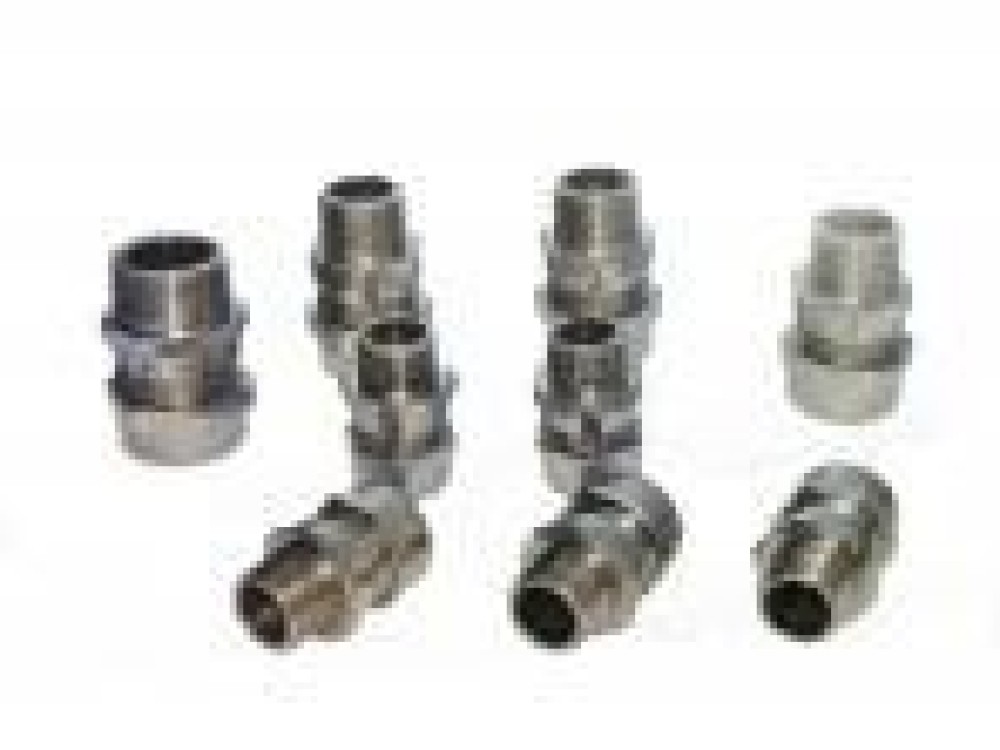

EPG Series Marine Ex-Proof Cable Gland
- Category:Cable Gland
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Technical Specification:
Diameter | Type | A | D | L | E | F | Weight(kgs) | |
min | max | |||||||
1/2" | EPG1-8 | 5.50 | 8.00 | 41 | 18 | 32 | 25 | 0.15 |
EPG1-10 | 8.00 | 10.50 | ||||||
EPG1-13 | 10.50 | 13.00 | ||||||
3/4" | EPG2-10 | 8.00 | 10.50 | 41 | 18 | 36 | 39 | 0.20 |
EPG2-13 | 10.50 | 13.00 | ||||||
EPG2-15 | 13.00 | 15.50 | ||||||
EPG2-18 | 15.50 | 18.00 | ||||||
1" | EPG3-18 | 15 | 18 | 52 | 22 | 45 | 49 | 0.38 |
EPG3-21 | 18 | 21 | ||||||
EPG3-24 | 21 | 24 | ||||||
1 1/4" | EPG4-24 | 21 | 24 | 53 | 22 | 50 | 55 | 0.42 |
EPG4-27 | 24 | 27 | ||||||
EPG4-30 | 27 | 30 | ||||||
1 1/2" | EPG5-33 | 30 | 33 | 53 | 22 | 57 | 62 | 0.52 |
EPG5-36 | 33 | 36 | ||||||
2" | EPG6-39 | 36 | 39 | 53 | 22 | 67 | 73 | 0.75 |
EPG6-42 | 39 | 42 | ||||||
EPG6-45 | 42 | 45 | ||||||
2 1/2“ | EPG7-48 | 45 | 48 | 53 | 27 | 80 | 88 | 1.2 |
EPG7-51 | 48 | 51 |
The description/sizes may be different with goods, please check with us when order.
